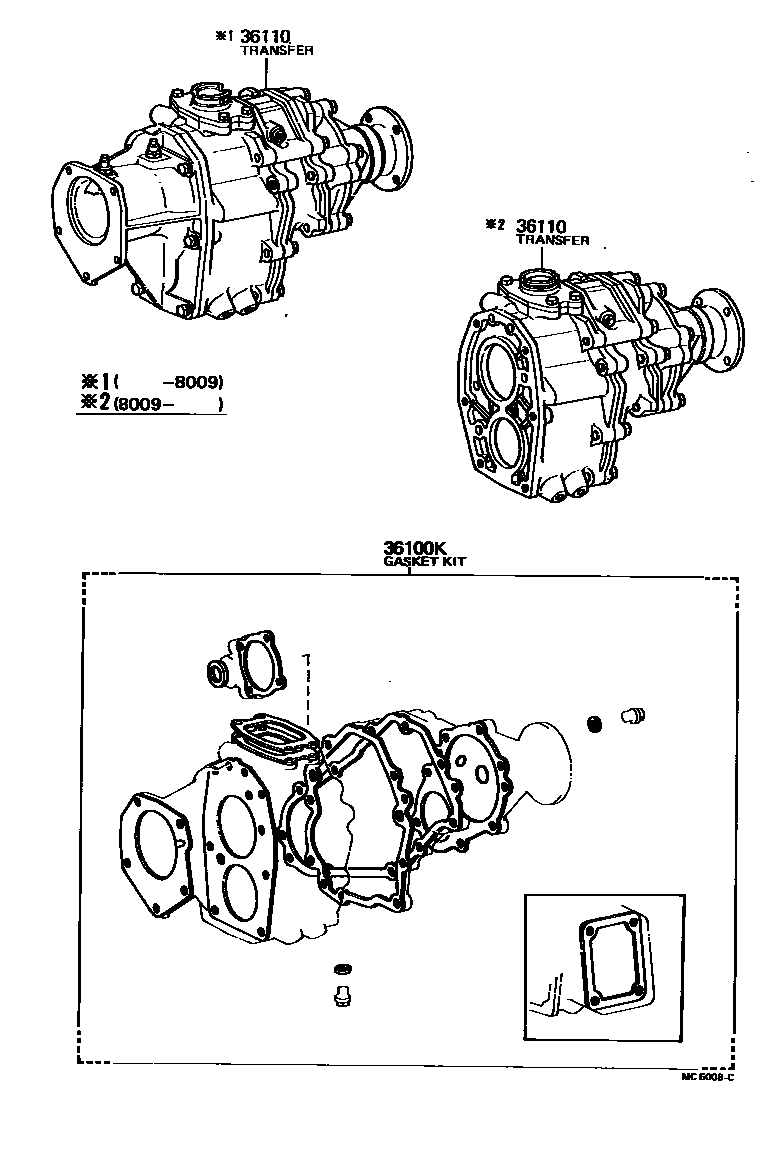

TRANSFER ASSEMBLY & GASKET KIT

0001 1 0002 1

36100KGASKET KIT, TRANSFER OVERHAUL

main04362-35010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

main04362-35011iLN36,46,RN36,46198008-198307

36110TRANSFER ASSY

main36100-35010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197908

W/O PTO COVER

main36100-35011iRN36;RN46..EUR,GEN;RN46..ARL..IV3197908-198008

W/O PTO COVER

main36100-35012iRN36;RN46..EUR,GEN;RN46..ARL..IV3198008-198009

W/O PTO COVER

main36100-35020iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197908

W/PTO COVER

main36100-35021iRN36;RN46..EUR,GEN;RN46..ARL..IV3197908-198008

W/PTO COVER

main36100-35022iRN36;RN46..EUR,GEN;RN46..ARL..IV3198008-198009

W/PTO COVER

main36100-35082iLN46,RN46..T1..ARL..CBU198208-198307

W/O PTO,W/205SR16 TIRE

main36100-35090iLN36,46;RN46..ARL..CBU198103-198108

W/O PTO COVER

main36100-35091iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198009-198111

W/O PTO COVER

main36100-35100iLN36,46;RN46..ARL..CBU198103-198108

W/PTO COVER

main36100-35101iLN36,46,RN36,46198111-198208

W/PTO COVER

main36100-35151iLN36,46,RN36,46198208-198307

W/O PTO COVER

main36100-35161iLN36,46,RN36,46..STD198208-198307

W/PTO COVER

main36100-35170iLN46,RN46..T1..ARL..CBU198208-198307

W/PTO & 205SR16 TIRE

2 parts on this diagram · 2 diagrams in section
