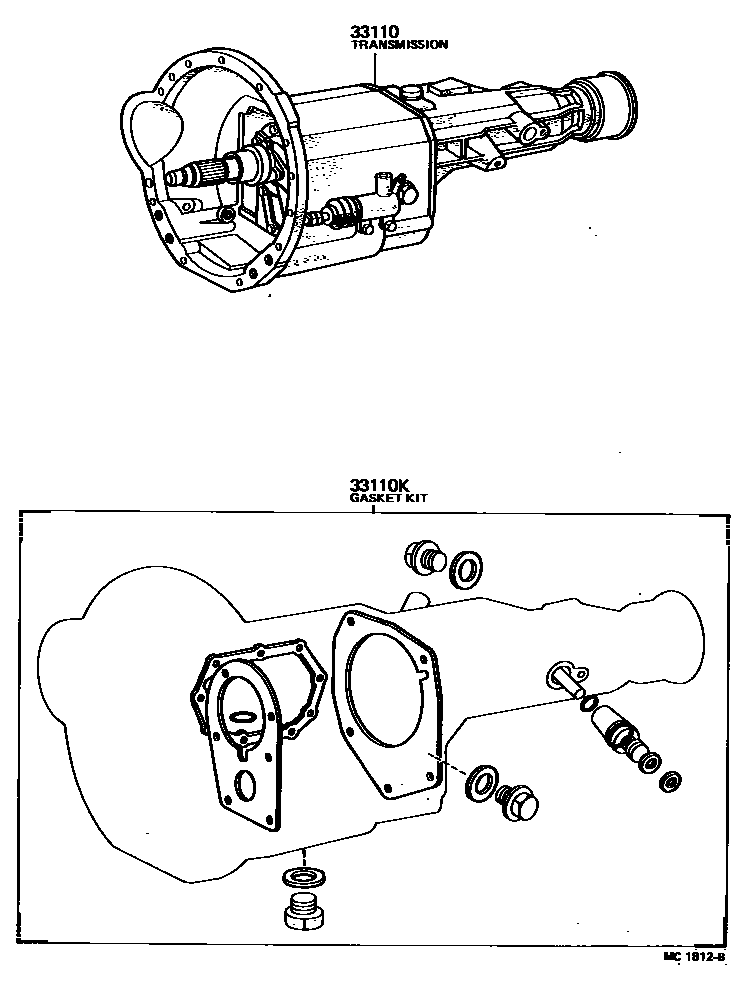

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1

33110TRANSMISSION ASSY, MANUAL

main33020-35130iRN30,40..4F..EUR197808-198210

SMG R=19:5W/SHIFT POINT SENSOR

main33020-35140iRN30,40..4F..(GEN,ME,PHL,SA)197808-198210

R=18:5,W/O SHIFT POINT SENSOR

main33020-35150iRN30,40..LHD..GEN..RCB197808-198108

SMG R=19:5,W/185R14C-8 TIRE

main33020-35160iRN31..4F..SA197808-198108

R=19:6,W/O SHIFT POINT SENSOR

main33020-35190iLN40..GEN..ECB..IV3198008-198108

W/185R14C-8 TIRE

main33020-35200iRN31,41..4F198108-198210

R=19:6,W/O SHIFT POINT SENSOR

main33020-35211iLN30,40..4F197909-198210

main33020-35230iRN41..LHD..DLX..GEN..CBU198108-198210

SMG R=17:5,W/185R14C-8 TIRE

main33020-35240iLN40..ARL; LN40..LHD..T1..4F..ECB..CBU198108-198210

SMG R=17.5,W/185R14-8 TIRE; SMG R=17.5,W/185R14C-8 TIRE

main33030-35031iRN31,41..SR5..GEN..ECB197812-198108

main33030-35041iRN31..SR5..IV3;RN31,41..LHD..SR5; RN41..ARL197808-197812

W/185R14C-8 TIRE

main33030-35042iRN31,41..GEN,SA198201-198208

main33030-35070iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

main33030-35071iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198008-198307

main33030-35110iRN31,41..SR5..GEN..ECB198009-198108

SMG R=21:6,DEFF R=4.875

main33030-35111iRN41..SR5..ARL198201-198208

SMG R=21:6

main33030-35140iRN31,41..SR5..(GEN,SA)198208-198312

main33030-35150iRN41..SR5..ARL198208-198307

SMG R=21:6

main33030-35180iRN31,41..4H198210-198307

main33030-35190iRN31,41..4F198210-198312

main33030-35200iLN30,40..4F198210-198403

main33030-35210iRN31,41..T1..ARL198210-198307

W/185R14 TIRE

main33030-35220iRN41..4F..ARL; RN41..LHD..DLX..GEN..CBU198210-198307

W/185R14 TIRE; W/185R14C-8 TIRE

main33030-35230iLN40..ARL; LN40..LHD..T1..4F..ECB198210-198307

W/185R14 TIPE; W/185R14C-8 TIRE

main33030-35240iRN30,40..4H..(ARL,GEN,SA)198210-198312

main33030-35250iRN30,40..ARL; RN40..4H..EUR198210-198307

*NSW; SMG R=19:5W/SHIFT POINT SENSOR

main33030-35260iRN30,40..4F..(GEN,ME,PHL,SA)198210-198403

main33030-35270iRN30,40..4F..EUR198210-198307

main33110-35570iRN30,40..4H..RCB..CBU;RN40..4H..GEN..ECB..IV3197808-198202

SMG R=18:5,HONG KONG SPEC

main33110-35580iRN30,40..4H..EUR197808-198210

SMG R=19:5W/SHIFT POINT SENSOR

main33110-35590iRN30,40..4H..(ARL,GEN,SA)197808-198210

R=18:5,W/O SHIFT POINT SENSOR

main33110-35600iRN31,41..4H197808-198210

R=19:6,W/O SHIFT POINT SENSOR

main33110-35630iLN30,40..5H197911-198210

main33110-35631iLN40..5H198210-198211

main33110-35632iLN40..5H198211-198307

main33110-35640iLN30,40..5F197911-198210

main33110-35641iLN30,40..5F198210-198211

main33110-35642iLN30,40..5F198211-198310

L50 T/M

main33110-35650iRN30,40..ARL198108-198210

SMG R=19.5,W/185R14-8 TIRE

main33110-35721iLN46..TW;LN46..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU198108-198211

W/185R14C-8 TIRE

main33110-35722iLN46..TW;LN46..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU198211-198301

W/185R14C-8 TIRE

main33110-35723iLN46..TW;LN46..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU198301-198307

W/185R14C-8 TIRE

main33110-35741iLN36,46..EUR198108-198211

main33110-35742iLN36,46..EUR198211-198301

main33110-35743iLN36,46..EUR198301-198307

main33110-35750iRN31,41..4H..ARL198108-198307

SMG R=17:5,W/185R14-8 TIRE

main33110-35770iLN30,40..5F..STD..RCB198310-198403

G52 T/M

main33110-35780iLN40..SR5198310-198403

G52 T/M

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-22030iRN31,41..SR5197808-198312

main04331-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main04331-35070iLN30,40..5F,5H197911-198008

main04331-35071iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198008-198211

main04331-35072iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198211-198310

main04331-35080iLN30,40..5F..RCB198310-198403

2 parts on this diagram · 6 diagrams in section
