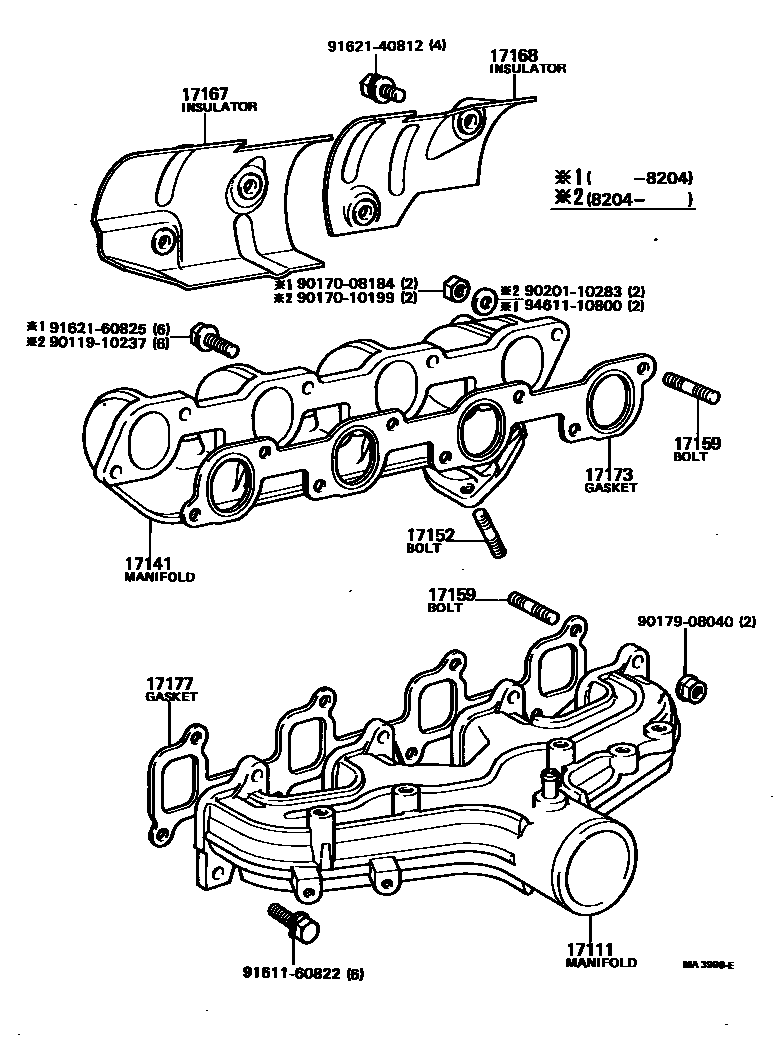

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-54011iL..LN30,40197909-198101

main17101-54030iL..LN36,4#..EUR198108-198307

main17101-54040iL..LN3#,4#198101-198403

17141MANIFOLD, EXHAUST

main17141-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198204

sub17141-54012

main17141-54012iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198204-198311

sub17141-54040

sub90116-10091

main17141-54040iL..LN30,40198311-198403

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017iL..LN46..T1..ARL..CBU197808-198312

L=38,S=14&21

main90116-10027i18R..RN46..ARL..CBU197909-198207

L=45.4,S=14&20

main90116-10042i12R#..RN30,40197808-198403

L=37,S=13&20

main90116-10071i18R..RN46..ARL..CBU198207-198302

L=47.4,S=14&22

sub90116-10088

main90116-10088iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198302-198403

L=47.4,S=14&22

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08053iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198204

main90116-08053iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198204-198403

INTAKE MANIFOLD SIDE

main90116-10027i18R..RN46..ARL..CBU198204-198207

EXHAUST MANIFOLD SIDE

main90116-10071i18R..RN46..ARL..CBU198207-198302

EXHAUST MANIFOLD SIDE

sub90116-10088

main90116-10088iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198302-198403

EXHAUST MANIFOLD SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54010iL..LN30,40197909-198010

sub17167-54011

main17167-54011i18R..RN46..ARL..CBU198010-198401

sub17167-54040

main17167-54040iL..LN30,40198401-198403

sub17167-54041

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-54010iL..LN30,40197909-198010

sub17168-54011

main17168-54011i18R..RN46..ARL..CBU198010-198403

sub17168-54012

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54010i18R..RN46..ARL..CBU197909-198204

sub17173-54011

main17173-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198204-198403

sub17173-54012

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54010iL..LN3#,4#197909-198107

sub17177-54011

main17177-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198107-198403

sub17177-54012

9011910237

main90119-10237

9017008184

main90170-08184

9017010199

main90170-10199

9017908040

main90179-08040

9020110283

main90201-10283

9161160822

main91611-60822

9162140812

main91621-40812

9162160825

main91621-60825

9461110800

main94611-10800

17 parts on this diagram · 3 diagrams in section
