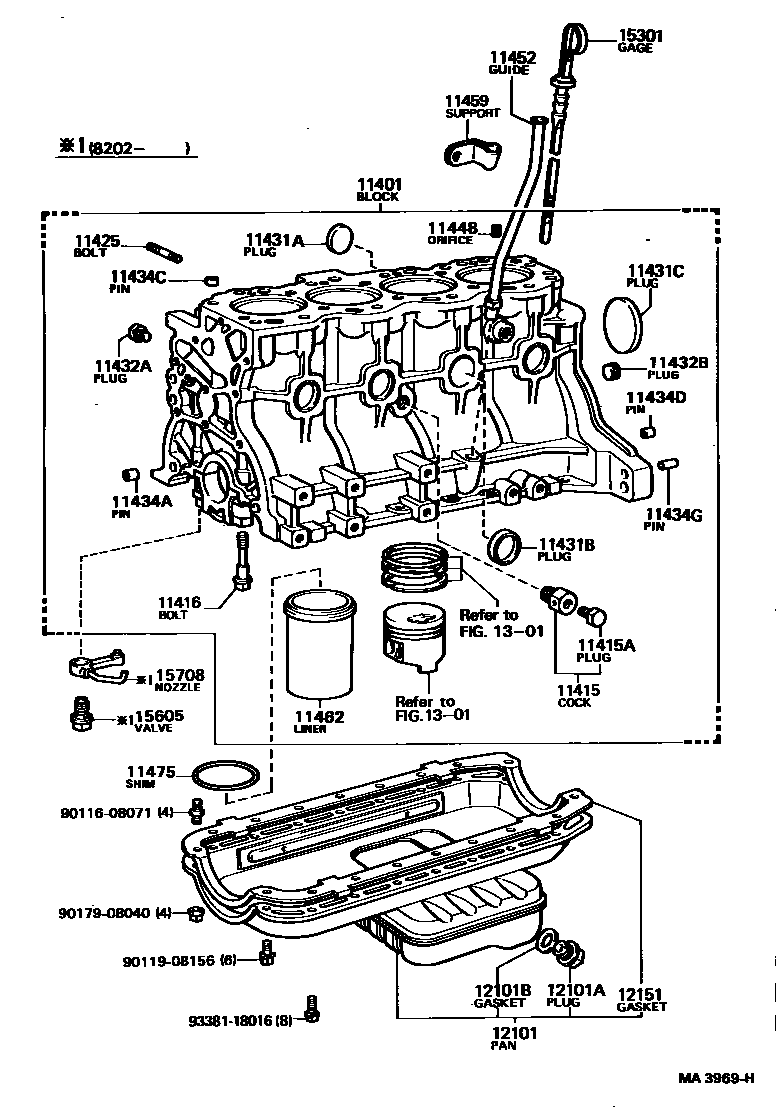

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39127i12R..RN30,40197808-198403

main11401-39285i18R..RN31,41197808-198010

sub11401-39286

main11401-39286i18R..RN31,41198010-198104

sub11401-39287

main11401-39287i18R..RN31,41198104-198208

main11401-39288i18R..RN31,41198208-198312

main11401-39305i18R..RN36,46197901-198104

sub11401-39306

main11401-39306iL..LN46..T1..ARL..CBU198104-198208

main11401-39307iL..LN46..T1..ARL..CBU198208-198307

main11401-59066iL..LN3#,4#197909-198105

sub11401-59155

main11401-59067iL..LN3#,4#198105-198106

sub11401-59195

main11401-59106iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198106-198202

sub11401-59185

main11401-59107i18R..RN46..ARL..CBU198202-198207

sub11401-59185

main11401-59185i18R..RN46..ARL..CBU198207-198304

sub11401-59195

main11401-59235i18R..RN46..ARL..CBU198304-198403

sub11401-59236

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09074iL..LN46..T1..ARL..CBU198002-198312

main96431-03833i12R#..RN30,40;18R..RN46..ARL..CBU197808-198403

sub96431-53828

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96431-23814iL..LN3#,4#197808-198403

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90109-12012iL..LN46..T1..ARL..CBU197901-198307

OIL PUMP FITTING

main90910-02042iL..LN46..T1..ARL..CBU197808-198312

*12-1.25PX75-25

main90910-02061iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

*12-1.25PX80-24

main90910-02064i12R#..RN30,40197808-198403

*12-1.25PX62-21

sub90910-02032

11425BOLT, STUD(FOR OIL FILTER)

main90116-08053iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198202

L=36,S=11&14

main90116-08157iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198403

L=36,S=11&14

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

OD=25

main96411-44500iL..LN46..T1..ARL..CBU197808-198312

OD=45

main96411-45000i12R#..RN30,40197808-198403

OD=50

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i12R#..RN30,40197808-198403

OD=30

main96411-43500iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

OD=35

main96411-44000iL..LN46..T1..ARL..CBU197808-198312

OD=40

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

OD=50

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90341-32038iL..LN46..T1..ARL..CBU197808-198312

main90345-51006i12R#..RN30,40;18R..RN46..ARL..CBU198210-198403

main90345-51025i18R..RN46..ARL..CBU197808-198210

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90072-34107i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

sub90345-51006

main90344-53002i18R..RN46..ARL..CBU198306-198403

main90344-53011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198306

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-10192i12R#..RN30,40197808-198403

L=22,OD=10,L=22,OD=10

main90253-11001i18R..RN31,36,41,46197808-198403

L=11,OD=11,L=11,OD=11

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

L=18,OD=8,L=18,OD=8

main90253-15005iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

L=7,OD=14.5,L=7,OD=14.5

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90253-11001iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

L=11,OD=11,L=11,OD=11

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10192i18R..RN46..ARL..CBU197909-198403

L=22,OD=10

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198212

sub11448-54020

main11448-54020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198212-198403

11452GUIDE, OIL LEVEL GAGE

main11452-31020i12R#..RN30,40197808-198403

main11452-34010i18R..RN31,41197808-198312

main11452-40010i18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197901-198307

main11452-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

11459SUPPORT, OIL LEVEL GAGE GUIDE

main90461-10271iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

11462LINER, CYLINDER

main11461-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

11475SHIM, CYLINDER LINER

main11475-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

T=0.05

main11476-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

T=0.10

12101PAN SUB-ASSY, OIL

main12101-39225i18R..RN31,41197808-198312

sub12101-39226

main12101-39245i12R#..RN30,40197808-198403

sub12101-39246

main12101-39275iL..LN46..T1..ARL..CBU197901-198307

sub12101-39276

main12101-59105iL..LN30,40197909-198403

sub12101-54041

sub12151-54020

sub90341-18089

sub90430-18013

main12101-59165i18R..RN46..ARL..CBU198103-198307

sub12101-54061

sub12151-54020

sub90116-08071

sub90341-18089

sub90430-18013

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089iL..LN3#,4#197808-198403

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244iL..LN3#,4#197808-198403

sub90430-18023

12151GASKET, OIL PAN

main12151-30010i12R#..RN30,40197808-198403

main12151-54020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31050i12R#..RN30,40197808-198403

main15301-33013iL..LN46..T1..ARL..CBU197901-198307

main15301-34021i18R..RN31,41197808-198312

main15301-54030iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198403

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198403

9011608071

main90116-08071

9011908156

main90119-08156

9017908040

main90179-08040

9338118016

main93381-18016

31 parts on this diagram · 6 diagrams in section
