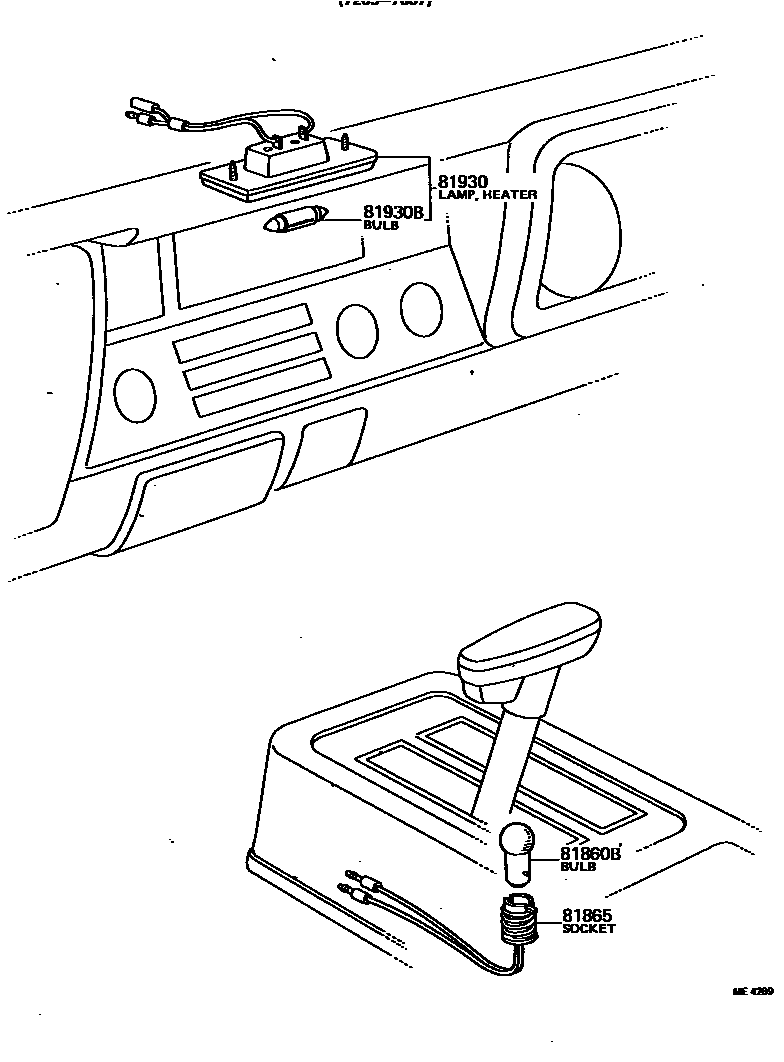

INDICATOR

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11034iRN22..ATM197404-197807

12V 3.4W,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-12010iRN22..ATM197404-197807

sub35906-12020

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-89102iRN2#197205-197608

sub81930-89101

main81930-89104iRN2#197608-197807

sub81930-89103

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11010iRN2#197205-197807

12V 2W,12V 2W

4 parts on this diagram · 1 diagram in section
