INSIDE TRIM BOARD

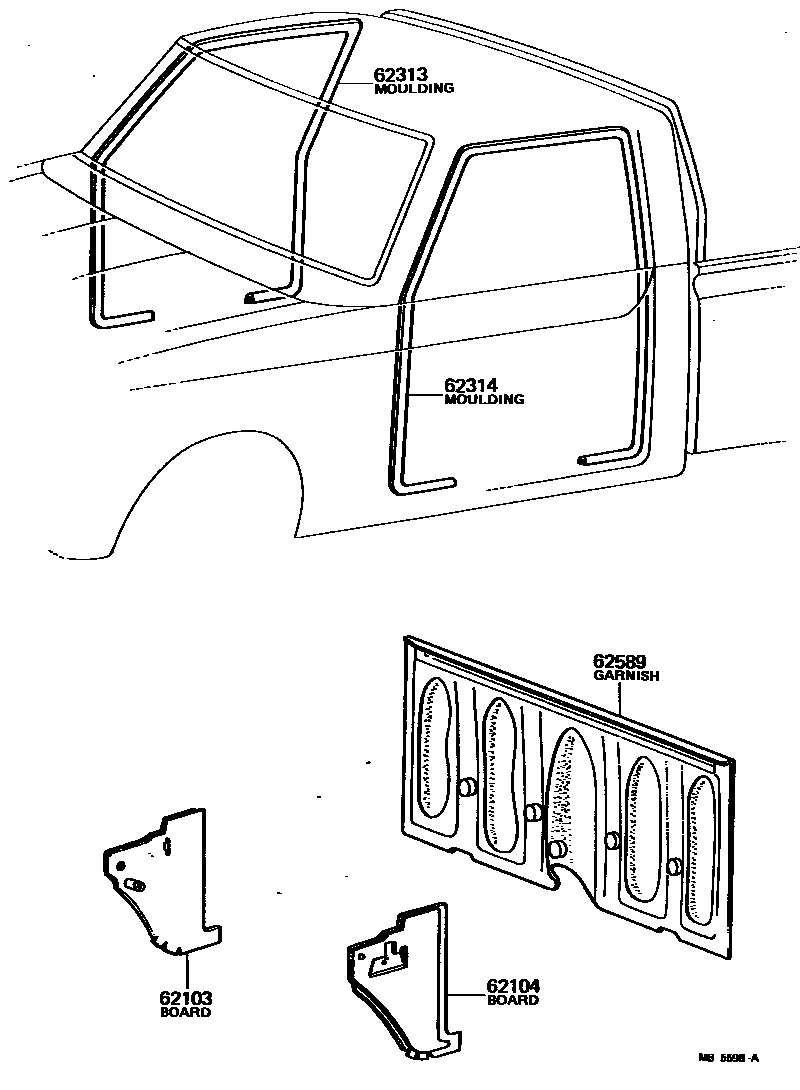

Parts diagram

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-89101-01i197404-197805

BLACK,BLACK

main62101-89101-04i197805-197807

BLUE,BLUE

main62101-89101-06i197805-197807

BROWN,BROWN

main62101-89103-01i197805-197807

BLACK,BLACK

main62101-89103-04i197805-197807

BLUE,BLUE

main62101-89103-06i197805-197807

BROWN,BROWN

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-89101-01i197404-197807

BLACK,BLACK

main62102-89101-04i197708-197807

BLUE,BLUE

main62102-89101-06i197408-197807

BROWN,BROWN

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-89101i197205-197408

main62313-89101-11i197408-197410

BLACK,BLACK

main62313-89102i197410-197509

main62313-89102-01i197509-197608

BLACK,BLACK

main62313-89102-06i197509-197608

BROWN,BROWN

main62313-89103-01i197608-197701

BLACK,BLACK

main62313-89103-06i197608-197701

BROWN,BROWN

main62313-89104-01i197701-197807

BLACK,BLACK

main62313-89104-04i197708-197807

BLUE,BLUE

main62313-89104-06i197701-197807

BROWN,BROWN

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-89101i197205-197408

main62313-89101-11i197408-197410

BLACK,BLACK

main62313-89102i197410-197509

main62313-89102-01i197509-197608

BLACK,BLACK

main62313-89102-06i197509-197608

BROWN,BROWN

main62313-89103-01i197608-197701

BLACK,BLACK

main62313-89103-06i197608-197701

BROWN,BROWN

main62313-89104-01i197701-197807

BLACK,BLACK

main62313-89104-04i197708-197807

BLUE,BLUE

main62313-89104-06i197701-197807

BROWN,BROWN

62589GARNISH, BACK PANEL

main62581-89102i197404-197408

main62581-89102-11i197408-197807

BLACK,BLACK

5 parts on this diagram · 1 diagram in section
