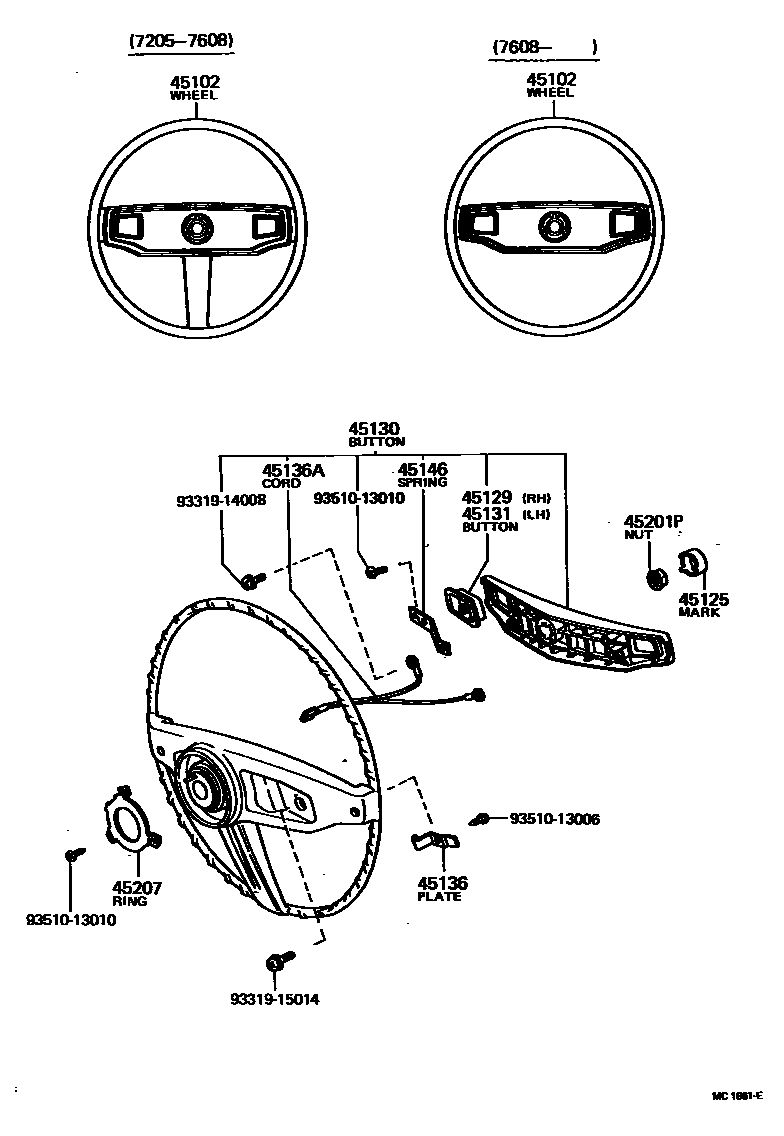

STEERING WHEEL

45102WHEEL SUB-ASSY, STEERING

main45100-35080iRN2#..RHD197205-197309

main45100-35090iRN2#..LHD197205-197309

main45100-35120iRN2#..RHD197309-197608

main45100-35121iRN2#..RHD197608-197807

main45100-35130iRN20,25..LHD197309-197608

main45100-35131iRN20,22,25..LHD197608-197807

45125MARK, STEERING WHEEL PAD

main45125-35020iRN2#197205-197807

45129BUTTON, HORN, NO.2

main45131-35050iRN2#197205-197309

main45131-35060iRN2#197309-197807

45130BUTTON ASSY, HORN

main45130-35060iRN2#197205-197309

main45130-35090iRN2#197309-197807

45131BUTTON, HORN, NO.1

main45131-35050iRN2#197205-197309

main45131-35060iRN2#197309-197807

45136PLATE, HORN BUTTON CONTACT

main45136-35020×2iRN2#197205-197706

main45136-35021iRN2#197706-197807

FOR RH.

main45137-35020iRN2#197706-197807

FOR LH.

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iRN2#197205-197807

45146SPRING, HORN BUTTON CONTACT

main45146-35020×2iRN2#197205-197807

45201PNUT, STEERING WHEEL SET

main90179-12086iRN2#197205-197807

45207RING, HORN CONTACT

main45176-35010iRN2#197205-197807

9331914008

main93319-14008

9331915014

main93319-15014

9351013006

main93510-13006

9351013010

main93510-13010

14 parts on this diagram · 1 diagram in section
