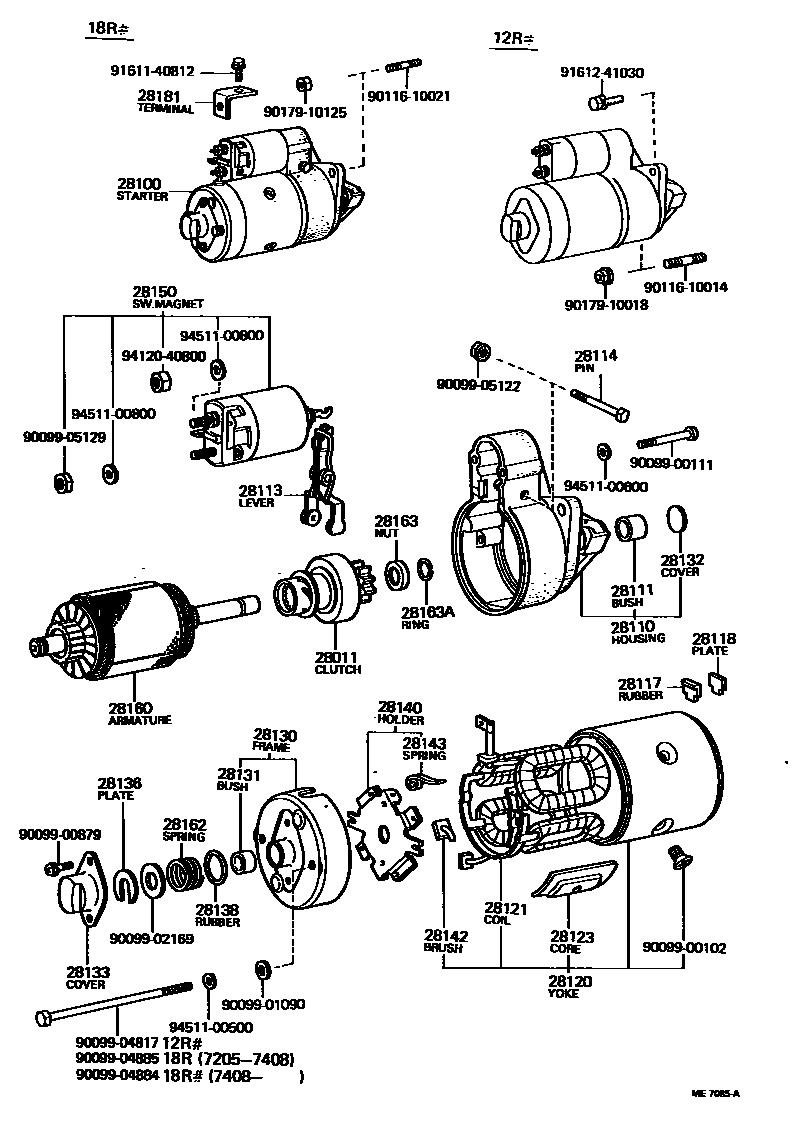

STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-41011i12R#,18R..RN2#197511-197807

main28011-41012i12R,18R..RN2#197205-197511

28100STARTER ASSY

main28100-23010i12R#..RN20,25197511-197805

12V 0.8KW

main28100-23011i12R#..RN20,25197805-197807

12V 0.8KW

main28100-36040i18R..RN22197408-197511

12V 0.8KW

main28100-36060i18R..RN22,27197511-197807

12V 0.8KW

main28100-40014i12R..RN20,25197205-197511

12V 0.8KW

main28100-40041i18R..RN22197404-197408

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-40019i12R#..RN20,25197205-197805

main28110-40030i12R#..RN20,25197805-197807

main28110-40045i18R..RN22,27197404-197807

28111BUSH(FOR STARTER HOUSING)

main28111-51011i12R#,18R..RN2#197205-197807

28113LEVER, STARTER PINION DRIVE

main28113-41011i12R#,18R..RN2#197205-197807

28114PIN, STARTER DRIVE LEVER SET

main28114-41011i12R#,18R..RN2#197205-197807

28117RUBBER(FOR STARTER YOKE)

main28117-41012i12R,18R..RN2#197205-197807

main28117-41013i12R#..RN20,25197511-197807

28118PLATE(FOR STARTER YOKE)

main28118-41012i12R,18R..RN2#197205-197807

main28118-41013i12R#..RN20,25197511-197807

28120YOKE ASSY, STARTER

main28120-36040i18R..RN22197408-197807

main28120-40011i18R..RN22197404-197408

main28120-89101i12R..RN20,25197205-197511

28121COIL, STARTER FIELD

main28121-36040i12R#,18R..RN2#197408-197807

main28121-40014i12R..RN20,25197205-197511

main28121-41011i18R..RN22197404-197408

28123CORE, STARTER POLE

main28123-40012i12R#,18R..RN2#197205-197807

main28123-41011i18R..RN22197404-197408

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i12R#,18R..RN2#197205-197807

28131BUSH, COMMUTATOR END FRAME

main28131-20010i12R#,18R..RN2#197205-197807

STD

main90099-10039i12R#,18R..RN2#197205-197807

U/S 0.3

main90099-10040i12R#,18R..RN2#197205-197807

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i12R#,18R..RN2#197205-197807

28133COVER, BEARING(FOR END FRAME)

main28132-41011i12R#,18R..RN2#197205-197807

28136PLATE, STARTER LOCK

main28136-41011i12R#,18R..RN2#197205-197807

28138RUBBER(FOR STARTER BEARING COVER)

main28138-41011i12R#,18R..RN2#197205-197807

28140HOLDER ASSY, STARTER BRUSH

main28140-41012i12R..RN20,25197205-197807

main28140-41013i18R..RN22197404-197408

28142BRUSH, STARTER

main28142-21010i12R#,18R..RN2#197205-197807

28143SPRING, STARTER BRUSH

main28143-40010i12R#,18R..RN2#197205-197807

main28143-40040i18R..RN22197404-197408

28150SWITCH ASSY, MAGNET STARTER

main28150-12030i18R..RN22197408-197511

main28150-22011i12R,18R..RN2#197205-197511

main28150-23010i12R#..RN20,25197511-197807

main28150-23011i12R#..RN20,25197807-197807

main28150-36050i18R..RN22,27197511-197807

28160ARMATURE ASSY, STARTER

main28160-40014i12R..RN20,25197205-197807

main28160-41011i18R..RN22197404-197408

28162SPRING, STARTER BRAKE

main28162-41011i12R#,18R..RN2#197205-197807

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i12R..RN20,25197205-197807

main28163-41011i18R..RN22197404-197408

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i12R#,18R..RN2#197205-197807

28181TERMINAL, STARTER

main28181-20010i18R..RN22,27197408-197807

9009900102

main90099-00102

9009900111

main90099-00111

9009900879

main90099-00879

9009901090

main90099-01090

9009902169

main90099-02169

9009904817

main90099-04817

9009904884

main90099-04884

9009904885

main90099-04885

9009905122

main90099-05122

9009905129

main90099-05129

9011610014

main90116-10014

9011610021

main90116-10021

9017910018

main90179-10018

9017910125

main90179-10125

9161140812

main91611-40812

9161241030

main91612-41030

9412040800

main94120-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

46 parts on this diagram · 1 diagram in section
