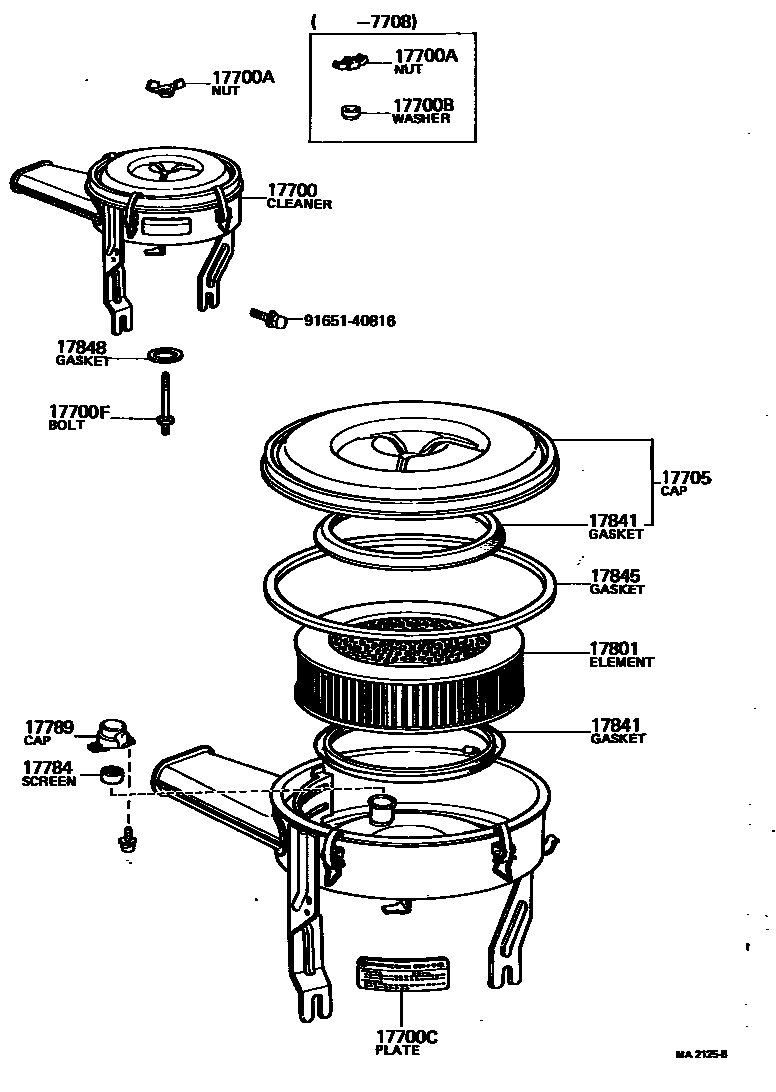

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17700CLEANER ASSY, AIR

main17700-31161i12R..RN2#197205-197206

W/PCV

main17700-31162i12R..RN2#197206-197211

W/PCV

main17700-31163i12R..RN20,25197211-197511

W/PCV

sub17700-31260

main17700-31164i12R..RN20,25197511-197709

main17700-31165i12R..RN20,25197709-197807

main17700-31181i12R..RN2#197205-197211

L/PCV

main17700-31182i12R..RN20,25197211-197511

L/PCV

main17700-31261i12RM..RN20197711-197807

main17700-31290i18R..RN22,27..RHD197609-197807

DUSTY REGION

main17700-31320i18R..RN22..5F197702-197807

DUSTY REGION

main17700-31330i12R..RN20,25..4H197702-197709

AUSTRALIA N.S.W. SPEC.

main17700-31331i12R..RN20,25..4H197709-197807

AUSTRALIA N.S.W. SPEC.

main17700-31901i12R..RN20,25..LHD197610-197807

DUSTY REGION

main17700-34203i18R..RN22197404-197508

sub17700-34204

main17700-34354i18R..RN27197711-197807

18RC

sub17700-34355

main17700-34370i18R..RN22197508-197607

sub90917-07069

main17700-34371i18R..RN22197607-197701

main17700-36152i18R..RN22197701-197704

sub12261-34070

main17700-36153i18R..RN22,27197704-197807

main17700-36163i18R..RN27197710-197807

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i12R#,18R..RN2#197709-197807

main90175-06026i18R..RN22197701-197706

main94270-00600i12R..RN2#197205-197402

main94271-00600i12R,18R..RN2#197402-197701

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-06001i12R..RN2#197205-197308

main90210-06023i12R,18R..RN2#197609-197709

DUSTY REGION

main90210-09026i18R..RN22197701-197706

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main90917-07052i12R..RN2#197205-197311

main90917-07053i12R,18R..RN2#197311-197607

sub90917-07079

main90917-07070i18R..RN22,27197607-197807

sub90917-07084

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06106i12R..RN2#197205-197210

L=87,S=13&30

main90116-06142i12R#..RN20,25197210-197807

L=88,S=12&25

main90116-06143i18R..RN22,27..RHD197404-197807

L=62,S=12&25

main90116-06230i12R,18R..RN2#197609-197807

DUSTY REGION L=74,S=12&25

17705CAP SUB-ASSY, AIR CLEANER

main17705-31030i12R..RN20,25197205-197511

L/P.C.V.

sub17705-23040

main17705-31031i12R..RN20,25197205-197709

W/P.C.V.

main17705-31032i12R#..RN20,25197709-197807

W/P.C.V.

sub17705-31033

main17705-34071i18R..RN22197404-197508

main17705-34141i18R..RN22,27197701-197807

sub17705-34191

main17705-34160i18R..RN22197508-197701

17784SCREEN, AIR CLEANER

main17784-31010i12R#,18R..RN2#197205-197807

17789CAP, AIR CLEANER SCREEN

main17789-31010i12R,18R..RN2#197205-197704

main17789-31020i12R..RN20,25..4H197702-197704

AUSTRALIA N.S.W. SPEC.

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25010i12R#..RN20,25197608-197807

main17801-31010i12R..RN20,25197205-197608

main17801-31040i12R,18R..RN2#197609-197807

DUSTY REGION

sub17801-54040

main17801-33030i18R..RN22197404-197708

main17801-34060i18R..RN22,27197708-197807

17841GASKET, FILTER ELEMENT

main17841-21010i12R..RN20,25197205-197511

L/PCV CASE SIDE

main17841-31020×2i12R#..RN20,25197511-197807

main17841-33011×2i18R..RN22,27197404-197807

17845GASKET, AIR CLEANER CAP

main17845-31020i12R#..RN20,25197205-197807

sub17845-25010

main17845-33010i18R..RN22197404-197607

main17845-33011i18R..RN22,27197607-197807

sub17845-42010

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63187i12R#..RN20,25197205-197807

main90430-72114i18R..RN22,27197404-197807

9165140816

main91651-40816

13 parts on this diagram · 6 diagrams in section
