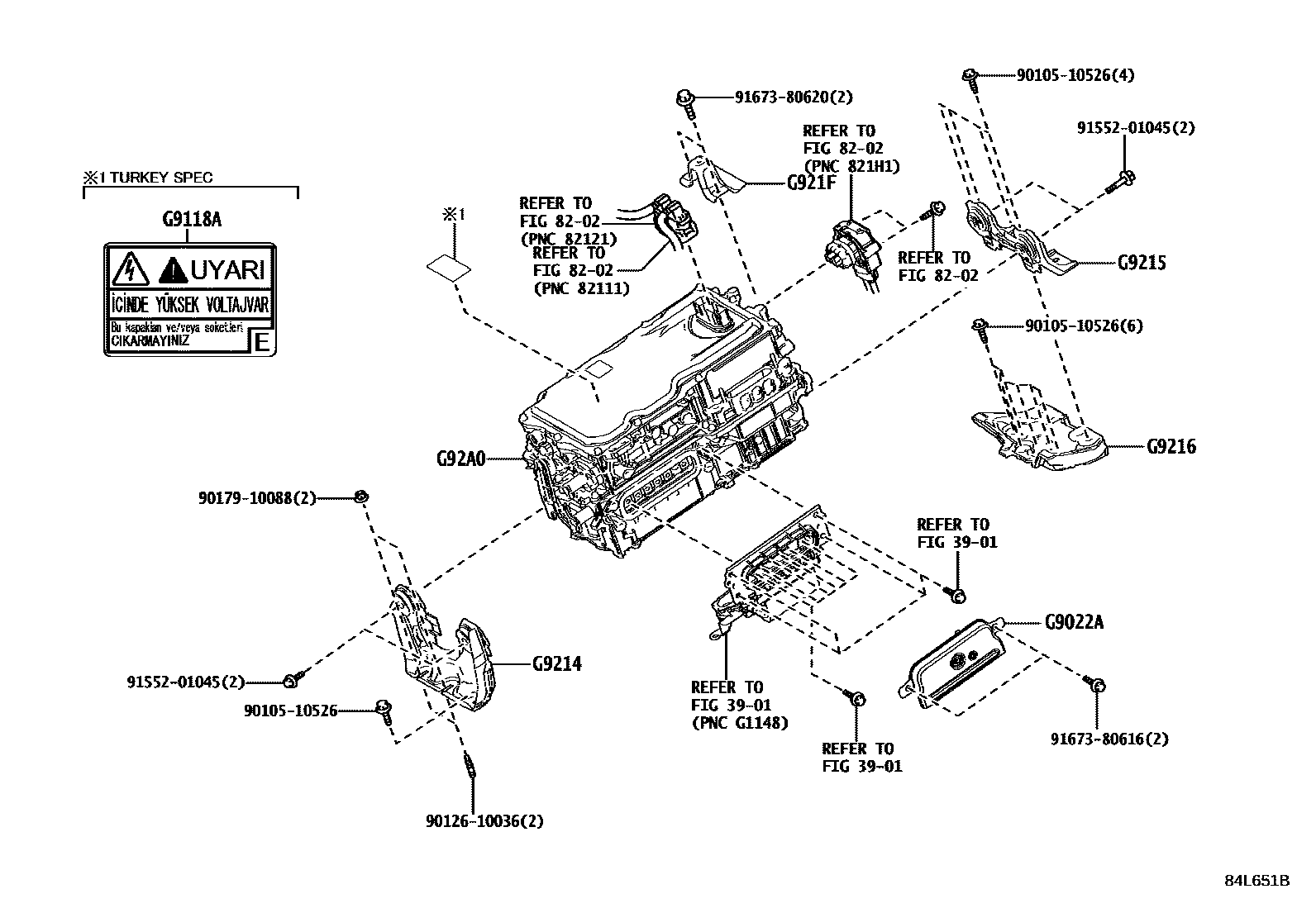

HEV INVERTER

0001 1 0002 1HV CONVERTER KIT

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAXAP54202310

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911852010iAXAP54..LHD202006-202210

TURKEY SPEC

G9214BRACKET, INVERTER, NO.1

mainG921442010iAXAP54202006-202210

G9215BRACKET, INVERTER, NO.2

mainG921542020iAXAP54202210-202310

G9216BRACKET, INVERTER, NO.3

mainG921642020iAXAP54202006-202210

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAXAP54202006-202210

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A042110iAXAP54202006-202108

mainG92A042111iAXAP54202109-202206

mainG92A042112iAXAP54202207-202210

mainG92A042113iAXAP54202307-202310

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155201045

main91552-01045

9167380616

main91673-80616

9167380620

main91673-80620

15 parts on this diagram · 2 diagrams in section
