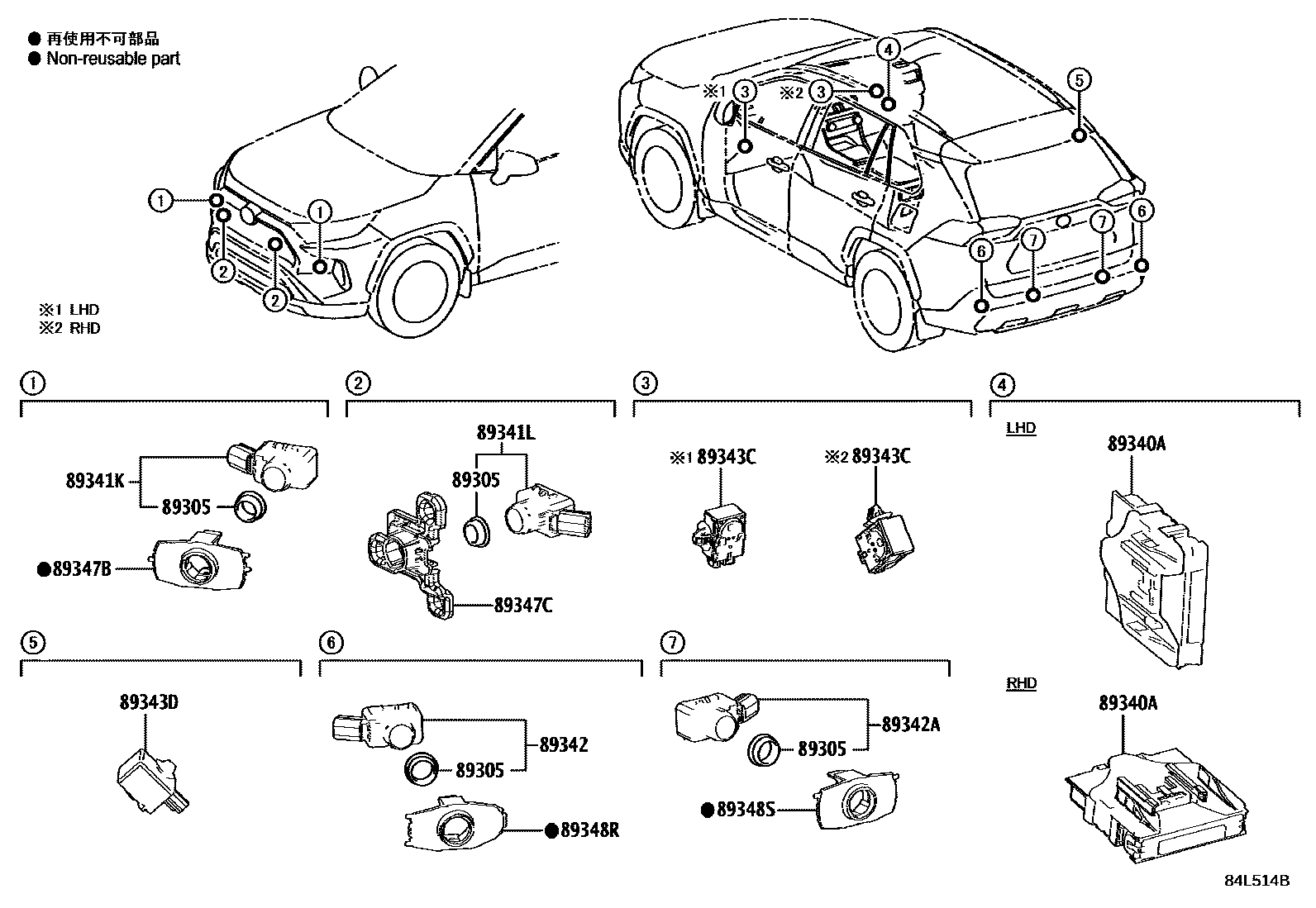

CLEARANCE & BACK SONAR
89305CUSHION SET, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),*614
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),*614
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),*614
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
89341KSENSOR, ULTRASONIC, FRONT CORNER
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070 ,2QJ
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3 ,2QZ
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6 ,2QY
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,2SC ,3U5; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,2RA ,8X8; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,8X8
89341LSENSOR, ULTRASONIC, FRONT CENTER
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070 ,2QJ
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3 ,2QZ
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6 ,2QY
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,2SC ,3U5; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,2RA ,8X8; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070 ,2QJ
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3 ,2QZ
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6 ,2QY
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,2SC ,3U5; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,2RA ,8X8; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,8X8
89342ASENSOR, ULTRASONIC, REAR CENTER
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070 ,2QJ
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3 ,2QZ
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6 ,2QY
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,2SC ,3U5; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,2RA ,8X8; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,8X8
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
89343DBUZZER, CLEARANCE WARNING, NO.2
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER
PLATINUM WHITE PEARL MC.,089 ,2PS,RH; PLATINUM WHITE PEARL MC.,089,RH
PLATINUM WHITE PEARL MC.,089 ,2PS,LH; PLATINUM WHITE PEARL MC.,089,LH
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SUPER WHITE 2,040,RH
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070 ,2QJ,RH; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),WHITE PEARL CS.,070,RH
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6 ,2QY,RH; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),SILVER ME.,1D6,RH
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3 ,2QZ,RH; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),GRAY ME.,1G3,RH
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),ATTITUDE BLACK MC.,218,RH
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,2SC ,3U5,RH; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),EMOTIONAL RED 2,3U5,RH
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,2RA ,8X8,RH; CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),DK. BLUE MC.,8X8,RH
89347CRETAINER, ULTRASONIC SENSOR, FRONT CENTER
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),RH
89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8,RH; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8,RH
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8,LH; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8,LH
89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8,LH; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8,LH
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8,RH; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8,RH
ATTITUDE BLACK MC.,040 ,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8,RH & LH; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8,RH & LH
GR SPORT,ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8,LH
GR SPORT,ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8,RH
12 parts on this diagram · 1 diagram in section
