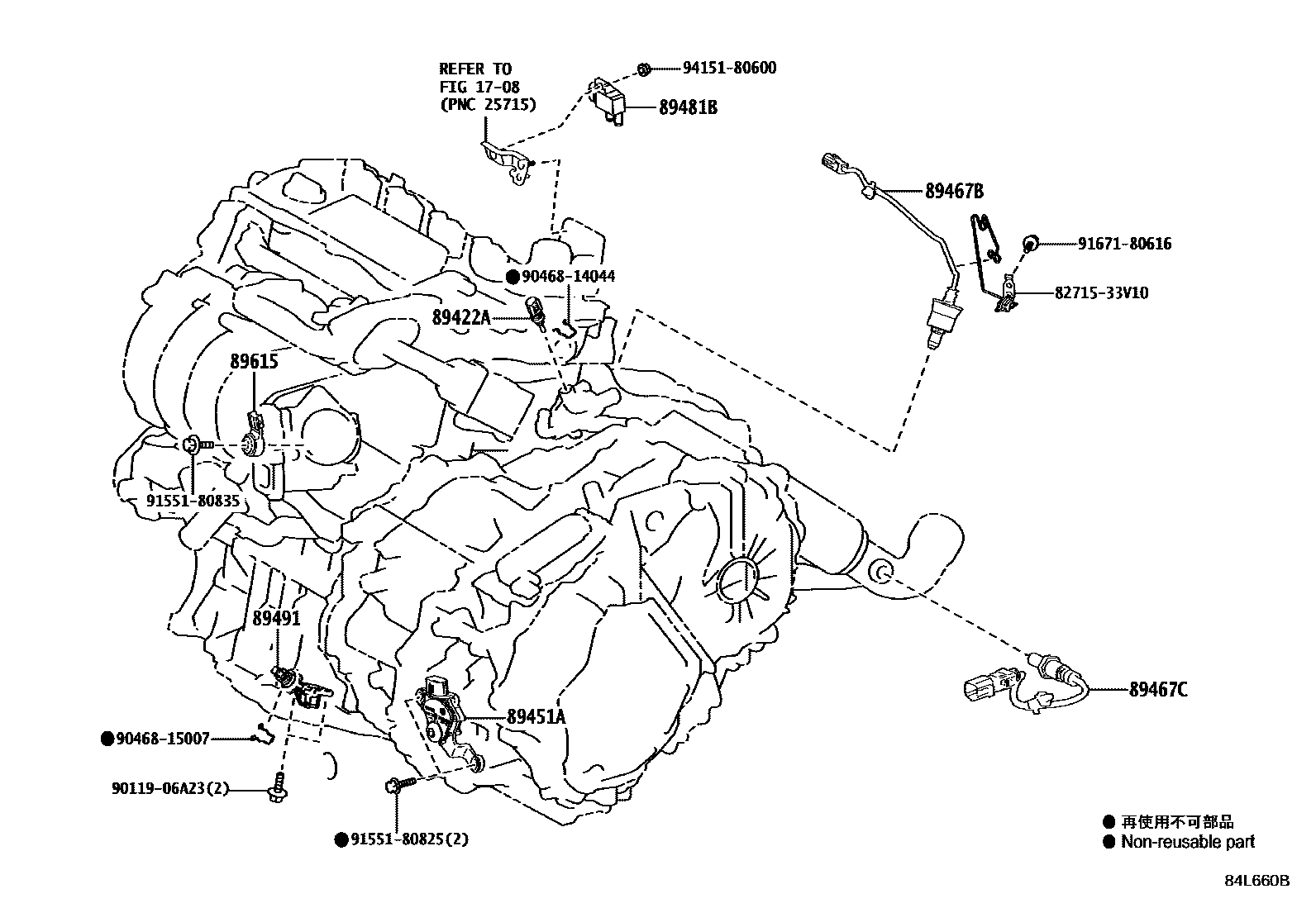

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXAP54202006-202310

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXAP54202006-202310

89467BSENSOR, AIR FUEL RATIO

main89467-33310iAXAP54202006-202310

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42190iAXAP54202006-202310

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iAXAP54202006-202210

main89481-K0010iAXAP54202210-202310

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXAP54202006-202204

main89491-33052iAXAP54202205-202310

89615SENSOR, KNOCK CONTROL

main89615-20090iAXAP54202006-202310

8271533V10BRACKET,WIRING HARNESS CLAMP

main82715-33V10

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180825

main91551-80825

9155180835

main91551-80835

9167180616

main91671-80616

9415180600

main94151-80600

16 parts on this diagram · 16 diagrams in section
