WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE 0006 1ENGINE 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR & ROOF 0011 1HIGH TENSION CABLE 0012 1SEAT 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CABLE BOND 0016 1CONNECTOR 1/3 0017 1CONNECTOR 2/3 0018 1CONNECTOR 3/3

81269BSEAL, FOG LAMP

82111WIRE, ENGINE ROOM MAIN

main82115-42310iAXAP54..LHD202006-202112

main82115-42311iAXAP54..LHD202112-202210

main82115-42370iAXAP54..RHD202006-202112

main82115-42371iAXAP54..RHD202112-202210

main82115-42P60iAXAP54..LHD202210-202310

main82115-42P61iAXAP54..LHD202310

main82115-42P80iAXAP54..RHD202210-202310

main82115-42P81iAXAP54..RHD202310

82114WIRE, ENGINE ROOM, NO.4

main82114-42290iAXAP54..LHD202006-202112

main82114-42320iAXAP54..RHD202006-202112

ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)

main82114-42321iAXAP54202112-202210

main82114-42322iAXAP54202210-202310

821H2WIRE, HV AIR CONDITIONER

main821H2-42030iAXAP54202006-202310

82666AHOLDER, CONNECTOR NO.2

main82666-42710iAXAP54202006-202310

82666BHOLDER, CONNECTOR NO.3

main82666-60220iAXAP54202006-202310

82666DHOLDER, CONNECTOR NO.5

main82666-42720iAXAP54202006-202210

main82666-42780iAXAP54202210-202310

82712ASUPPORT, WIRING HARNESS

main82712-42150iAXAP54202006-202310

82712BSUPPORT, WIRING HARNESS

main82712-42180iAXAP54202006-202310

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42A90iAXAP54202006-202310

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-42020iAXAP54202006-202112

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-58130iAXAP54202006-202310

G921DPROTECTOR, INVERTER CONNECTOR COVER

mainG921D42020iAXAP54202006-202310

9011906A06

main90119-06A06

9011906A39

main90119-06A39

9017806026

main90178-06026

9017906274

main90179-06274

9167180820

main91671-80820

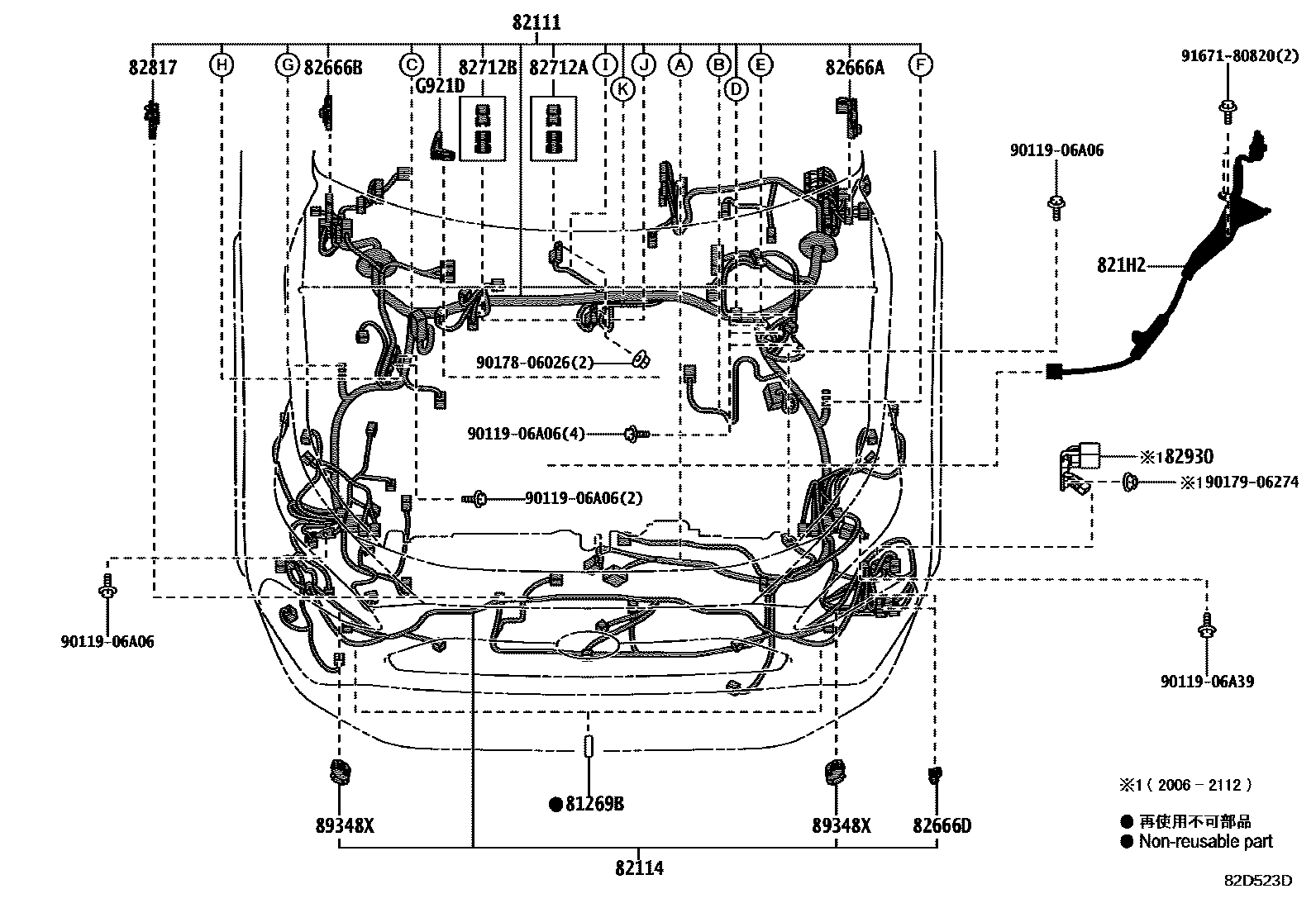

18 parts on this diagram · 18 diagrams in section
