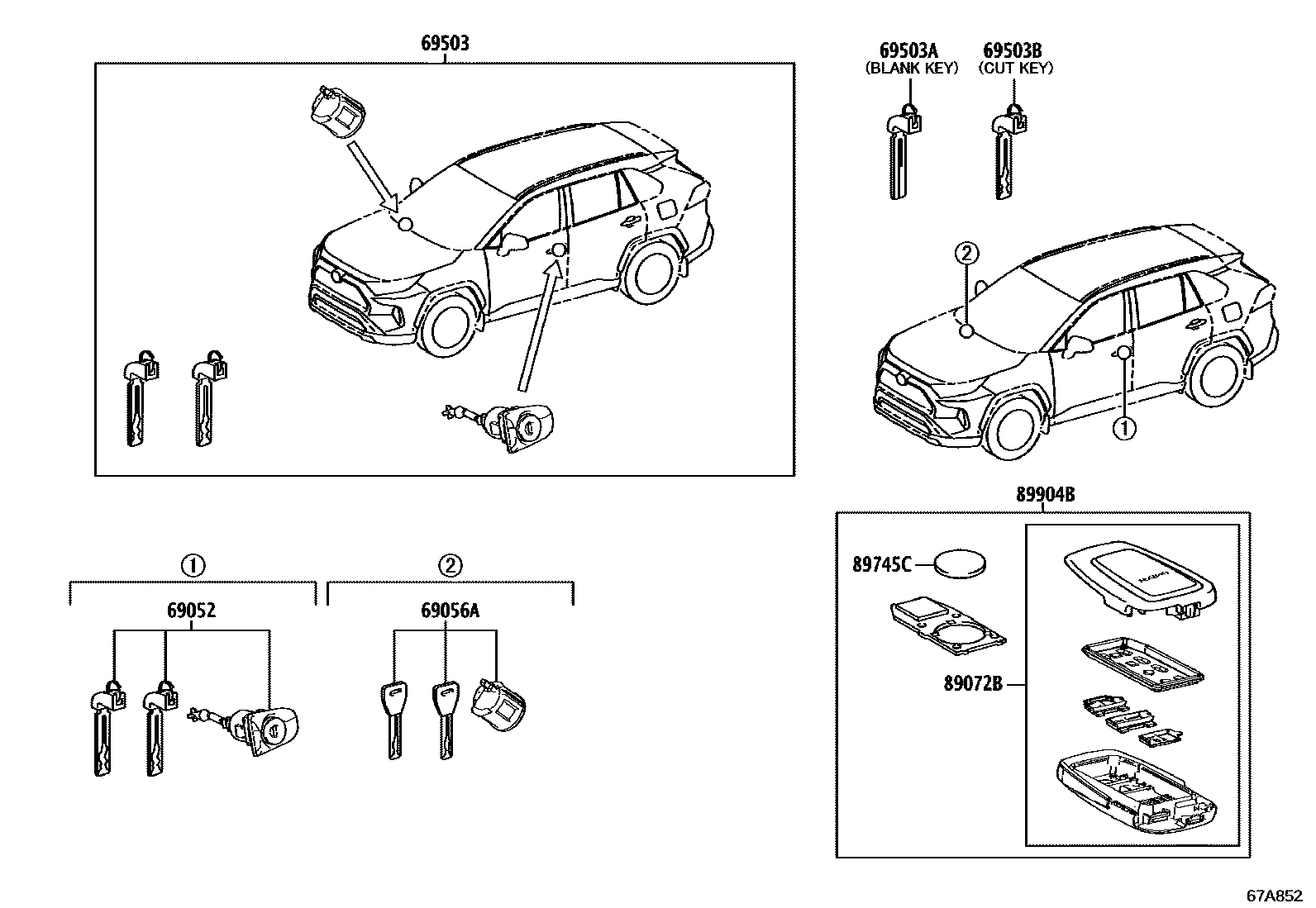

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
BLANK KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
sub89072-42A91
POWER DOOR LOCK-WITH(AUTO LOCK & *PBD(KICK SENSOR))
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & *PBD)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & *PBD)
POWER DOOR LOCK-WITH(AUTO LOCK & *PBD(KICK SENSOR))
POWER DOOR LOCK-WITH(AUTO LOCK & *PBD(KICK SENSOR))
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & *PBD)
89745CBATTERY, TRANSMITTER
CR2450
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
sub8990H-42411
POWER DOOR LOCK-WITH(AUTO LOCK & *PBD(KICK SENSOR))
sub8990H-42421
POWER DOOR LOCK-WITH(AUTO LOCK & *PBD(KICK SENSOR))
sub8990H-42422
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & *PBD)
POWER DOOR LOCK-WITH(AUTO LOCK & *PBD(KICK SENSOR))
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & *PBD)
POWER DOOR LOCK-WITH(AUTO LOCK & *PBD(KICK SENSOR))
8 parts on this diagram · 2 diagrams in section
