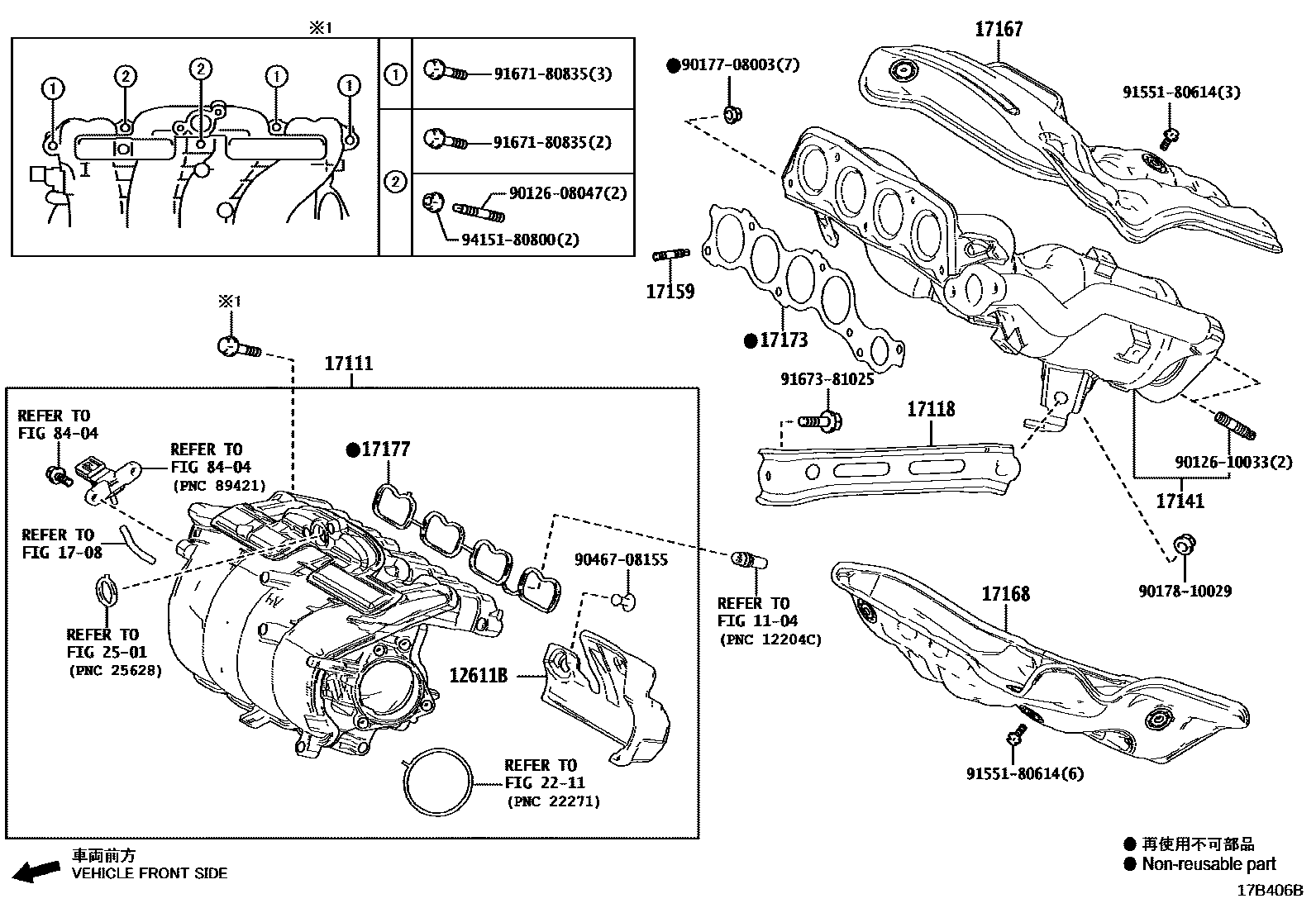

MANIFOLD

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

12611BCOVER, ENGINE, NO.1

main12613-25020iA25AFXS..AXAP54202006-202210

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17120-25020iA25AFXS..AXAP54202006-202210

17118STAY, MANIFOLD

main17118-25030iA25AFXS..AXAP54202006-202210

17141MANIFOLD, EXHAUST

main17141-25181iA25AFXS..AXAP54202006-202009

*114=TOYOTA/25180/Y

main17141-25182iA25AFXS..AXAP54202009-202210

*114=TOYOTA/25180/Y

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×7iA25AFXS..AXAP54202006-202210

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-25030iA25AFXS..AXAP54202006-202210

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-25040iA25AFXS..AXAP54202006-202210

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-25020iA25AFXS..AXAP54202006-202210

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-25010iA25AFXS..AXAP54202006-202210

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9012608047

main90126-08047

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

9046708155

main90467-08155

9155180614

main91551-80614

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800

23 parts on this diagram · 2 diagrams in section
