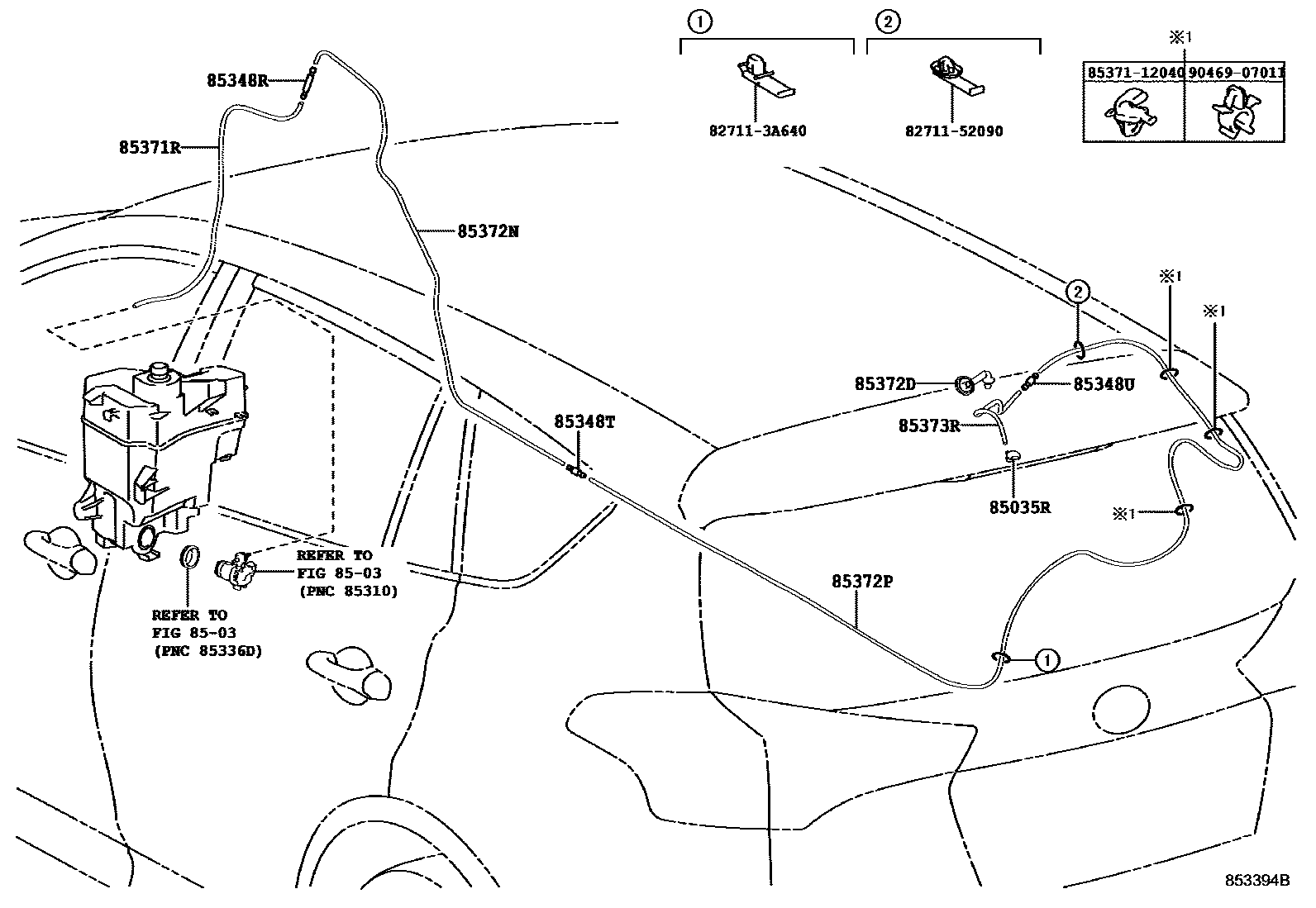

REAR WASHER
8503
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=840),*562
L=1450(*H,L=840),AUSTRALIA SPEC,*562
L=1450(*H,L=840),AUSTRALIA SPEC&HEADLAMP-DISCHARGE,*562
L=1450(*H,L=840),NEW ZEALAND SPEC,*562
L=1450(*H,L=840),NEW ZEALAND SPEC&HEADLAMP-DISCHARGE,*562
L=1450(*H,L=840),SOUTH AFRICA SPEC,*562
L=1450(*H,L=840),SOUTH AFRICA SPEC&HEADLAMP-DISCHARGE,*562
L=1450(*H,L=840),COLD AREA SPEC,*562
L=1450(*H,L=840),COLD AREA SPEC&HEADLAMP-DISCHARGE,*562
L=1450(*H,L=840),COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562
L=1450(*H,L=840),HEADLAMP-DISCHARGE,*562
L=1450(*H,L=840),HEADLAMP-DISCHARGE & W(*AHB),*562
main90099-33080iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810
L=1450(*H,L=840),*561,*562
main90099-33080iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810
L=1450(*H,L=840),COLD AREA SPEC,*561,*562
main90099-33080iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
L=1450(*H,L=200),*561,*562
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1200,*562
main90099-33382iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810
L=1200,*561,*562
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3374
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=350
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
9046907011
main90469-07011
14 parts on this diagram · 2 diagrams in section
