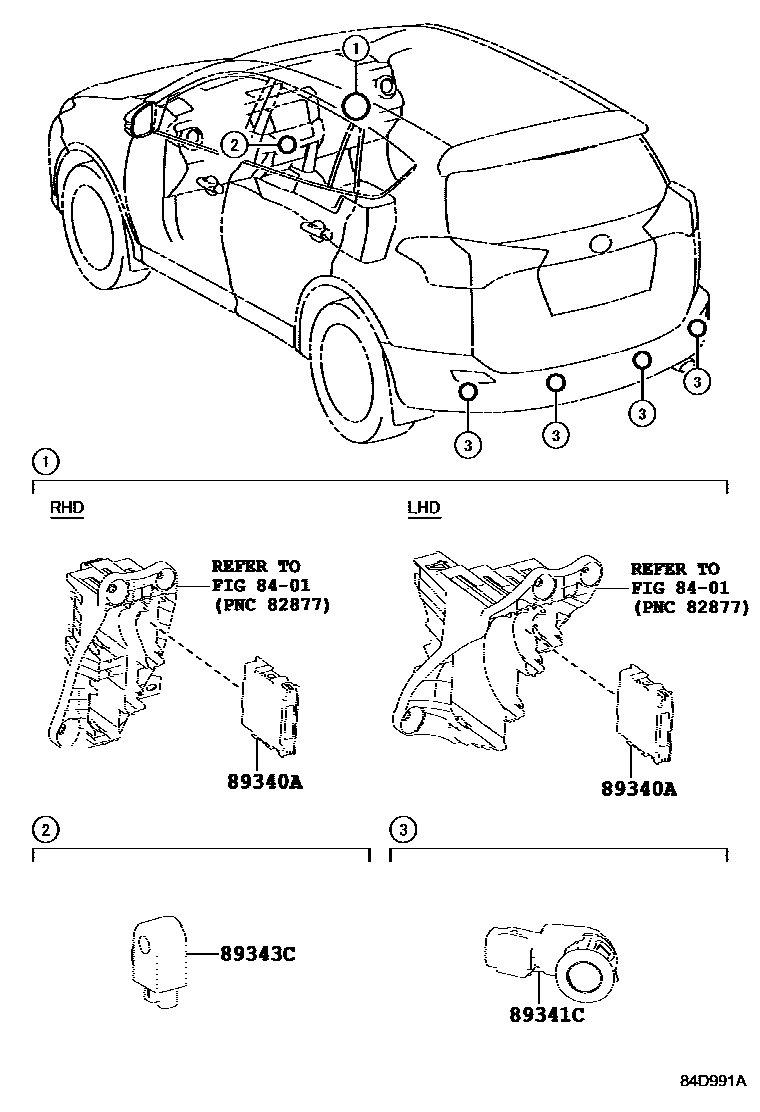

CLEARANCE & BACK SONAR

8401SWITCH & RELAY & COMPUTER

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-42010i201212-201301

BASIC PACKAGE; CLEARANCE & BACK SONAR-WITH(REAR); CLEARANCE & BACK SONAR-WITHOUT

main89340-42011i201301-201311

BASIC PACKAGE; CLEARANCE & BACK SONAR-WITH(REAR); CLEARANCE & BACK SONAR-WITHOUT

main89340-42030i201311-201510

BASIC PACKAGE; CLEARANCE & BACK SONAR-WITH(REAR); CLEARANCE & BACK SONAR-WITHOUT

main89340-42040i201510-201810

CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main89340-42050i201510-201810

CLEARANCE & BACK SONAR-WITH(REAR)

89341CSENSOR, ULTRASONIC, NO.3

main89341-42010×4i201212-201311

BASIC PACKAGE; CLEARANCE & BACK SONAR-WITH(REAR); CLEARANCE & BACK SONAR-WITHOUT

main89341-42030×4i201311-201510

BASIC PACKAGE; CLEARANCE & BACK SONAR-WITH(REAR); CLEARANCE & BACK SONAR-WITHOUT

89343CBUZZER, CLEARANCE WARNING, NO.1

CLEARANCE & BACK SONAR-WITH(FRONT&REAR); CLEARANCE & BACK SONAR-WITH(REAR); FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main89343-72010i201212-201510

BASIC PACKAGE; CLEARANCE & BACK SONAR-WITH(REAR); CLEARANCE & BACK SONAR-WITHOUT

4 parts on this diagram · 2 diagrams in section
