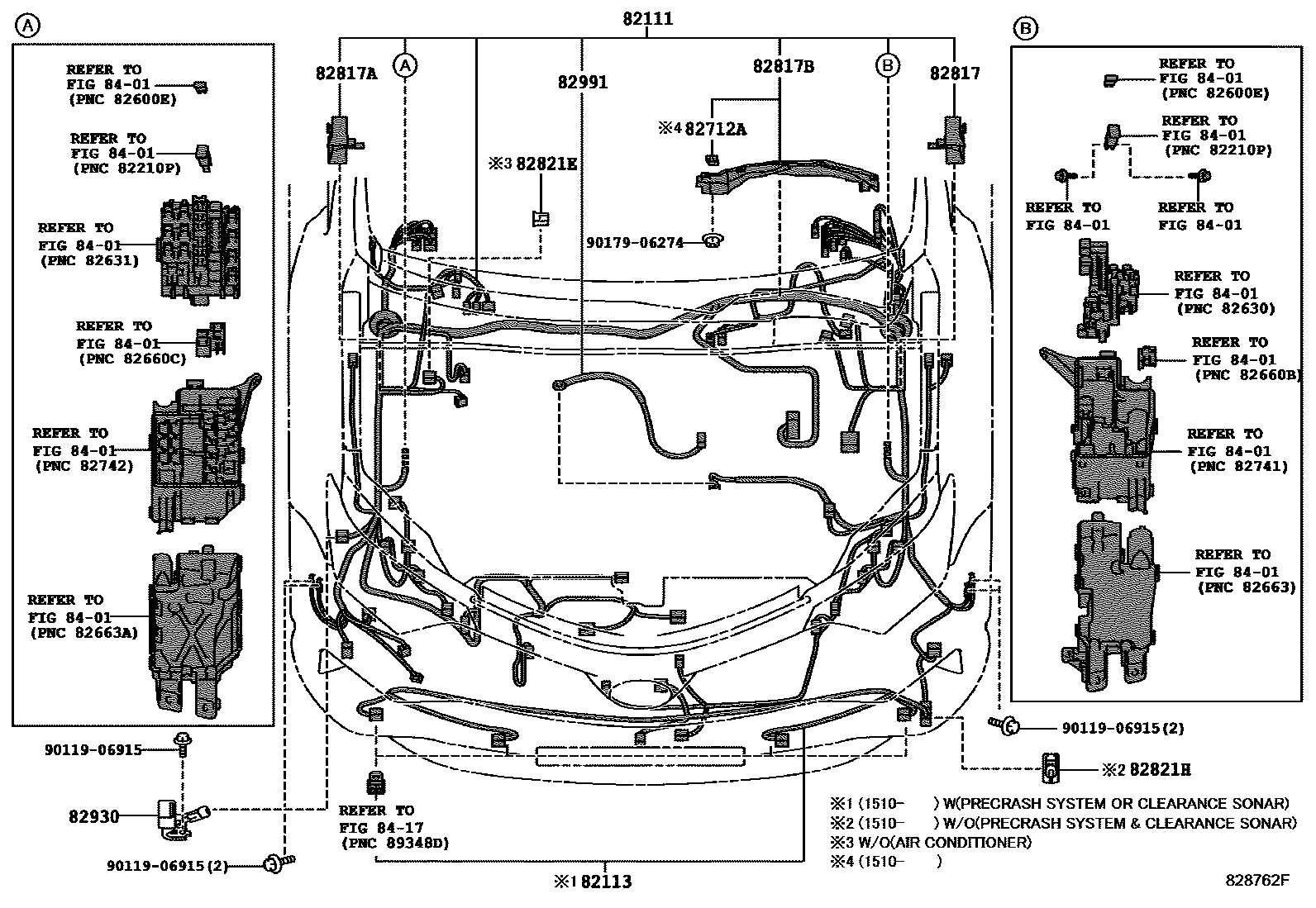

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-42M90i201212-201311

main82111-42M91i201311-201410

main82111-42M92i201410-201504

main82111-42N60i201212-201311

main82111-42N61i201311-201504

main82111-42N62i201504-201510

main82111-42N70i201212-201311

main82111-42N71i201311-201504

main82111-42N72i201504-201510

main82111-42N80i201212-201311

main82111-42N81i201311-201504

main82111-42N82i201504-201510

main82111-42R10i201311-201504

main82111-42R11i201504-201510

main82111-42U30supersedes 82111-42V10i201510-201608

FRENCH SPEC&BASIC PACKAGE

main82111-42U31supersedes 82111-42V11i201608-201708

FRENCH SPEC&BASIC PACKAGE

main82111-42U32supersedes 82111-42V12i201708-201810

FRENCH SPEC&BASIC PACKAGE

main82111-4A440supersedes 82111-4A470i201510-201608

BASIC PACKAGE

main82111-4A620supersedes 82111-4A640i201510-201608

BASIC PACKAGE

main82111-4A621supersedes 82111-4A641i201608-201708

BASIC PACKAGE

main82111-4A622supersedes 82111-4A642i201708-201805

BASIC PACKAGE

main82111-4A670i201510-201608

main82111-4A671i201608-201708

main82111-4A672i201708

main82111-4A761supersedes 82111-4A751i201610-201708

main82111-4A762i201708

COLD AREA SPEC & W/O(REAR SEAT HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(REAR SEAT HEATER)&HEAD LAMP-LED

main82111-4A850i201510-201608

main82111-4A851i201608-201708

main82111-4A852i201708

main82111-4AB30i201510-201608

main82111-4AB31i201608-201708

main82111-4AB32i201708-201810

main82111-4AC21supersedes 82111-4AN31i201610-201708

main82111-4AC23i201708-201810

COLD AREA SPEC & W/O(REAR SEAT HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(REAR SEAT HEATER)&HEAD LAMP-LED

main82111-4AJ30i201510-201608

main82111-4AJ90i201510-201608

main82111-4AJ91i201608-201708

main82111-4AJ92i201708-201810

main82111-4AL80i201504-201510

main82111-4AL90i201510-201608

main82111-4AL91i201608-201708

main82111-4AL92i201710

main82111-4AM21supersedes 82111-4AM22i201610-201710

main82111-4AM22i201710

COLD AREA SPEC & W/O(REAR SEAT HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(REAR SEAT HEATER)&HEAD LAMP-LED

main82111-4AM62i201708-201810

main82111-4AN41supersedes 82111-4AN51i201608-201708

FRENCH SPEC&BASIC PACKAGE

main82111-4AN42supersedes 82111-4AN52i201708-201810

FRENCH SPEC&BASIC PACKAGE

main82111-4AN61i201708-201810

main82111-42N10supersedes 82111-42N00i201212-201311

COLD AREA SPEC

main82111-42N11supersedes 82111-42N01i201311-201504

COLD AREA SPEC

main82111-42N12supersedes 82111-42N02i201504-201510

COLD AREA SPEC

main82111-42N30i201212-201311

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42N31i201311-201504

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42N32i201504-201510

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42N40supersedes 82111-42N20i201212-201311

COLD AREA SPEC

main82111-42N41supersedes 82111-42N21i201311-201504

COLD AREA SPEC

main82111-42N42supersedes 82111-42N22i201504-201510

COLD AREA SPEC

main82111-42N50i201212-201311

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42N51i201311-201410

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42N52i201410-201504

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42N53i201504-201510

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42P40i201212-201311

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42P41i201311-201504

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42P42i201504-201510

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42P50i201212-201311

HEADLAMP-DISCHARGE

main82111-42P51i201311-201504

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42P52i201504-201510

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42Q40i201212-201311

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-42Q41i201311-201504

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-42Q42i201504-201510

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-42Q80i201311-201504

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42Q81i201504-201510

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-42Q90supersedes 82111-42Q70i201311-201504

COLD AREA SPEC

main82111-42Q91supersedes 82111-42Q71i201504-201510

COLD AREA SPEC

main82111-42R20i201410-201504

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-42R21i201504-201510

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-42R30i201410-201504

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-42R31i201504-201510

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-42T30supersedes 82111-4AN50i201510-201608

ECO PACKAGE-WITHOUT; FRENCH SPEC&BASIC PACKAGE&ECO PACKAGE-WITHOUT

main82111-42T70supersedes 82111-4AN50i201510-201608

ECO PACKAGE-WITHOUT; ECO PACKAGE-WITHOUT&HEAD LAMP-LED; ECO PACKAGE-WITHOUT&HEAD LAMP-LED, W(*AHB)

main82111-42V10i201510-201608

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-42V11i201608-201708

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-42V12i201708-201810

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-42Y20supersedes 82111-42Y60i201510-201608

COLD AREA SPEC

main82111-42Y21supersedes 82111-42Y61i201608-201708

COLD AREA SPEC; COLD AREA SPEC & WITH(STEERING HEATER)

main82111-42Y22supersedes 82111-42Y62i201708-201805

COLD AREA SPEC; COLD AREA SPEC & WITH(STEERING HEATER)

main82111-42Y60supersedes 82111-42Z20i201510-201608

FRENCH SPEC&BASIC PACKAGE&AUDIO-WITHOUT

main82111-42Y61supersedes 82111-42Z21i201608-201708

FRENCH SPEC&BASIC PACKAGE&AUDIO-WITHOUT

main82111-42Y62supersedes 82111-42Z22i201708-201805

FRENCH SPEC&BASIC PACKAGE&AUDIO-WITHOUT

main82111-42Y80supersedes 82111-42Z20i201510-201608

COLD AREA SPEC; COLD AREA SPEC&HEAD LAMP-LED; COLD AREA SPEC&HEAD LAMP-LED, W(*AHB)

main82111-42Y81i201608-201708

COLD AREA SPEC; COLD AREA SPEC & WITH(STEERING HEATER); COLD AREA SPEC & WITH(STEERING HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(STEERING HEATER)&HEAD LAMP-LED, W(*AHB); COLD AREA SPEC&HEAD LAMP-LED; COLD AREA SPEC&HEAD LAMP-LED, W(*AHB)

main82111-42Y82i201708-201805

main82111-42Z20i201510-201608

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-42Z21i201608-201708

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-42Z22i201708-201805

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4A441supersedes 82111-4A471i201608-201708

BASIC PACKAGE

main82111-4A442supersedes 82111-4A472i201708-201810

BASIC PACKAGE

main82111-4A470i201510-201608

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4A471supersedes 82111-4A441i201608-201708

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4A472supersedes 82111-4A442i201708-201810

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4A640i201510-201608

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4A641i201608-201708

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4A642i201708-201805

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4A680i201510-201608

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4A681i201608-201708

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4A682i201708

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4A750i201510-201608

HEAD LAMP-LED

main82111-4A751i201608-201708

HEAD LAMP-LED

main82111-4A752i201708

HEAD LAMP-LED

main82111-4A760supersedes 82111-4A750i201510-201608

COLD AREA SPEC & W/O(REAR SEAT HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(REAR SEAT HEATER); COLD AREA SPEC & WITH(REAR SEAT HEATER)&HEAD LAMP-LED

main82111-4A860i201510-201608

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4A861i201608-201708

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4A862i201708

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4AA30i201510-201608

HEAD LAMP-LED

main82111-4AA31i201608-201708

HEAD LAMP-LED

main82111-4AA32i201708

HEAD LAMP-LED

main82111-4AA40supersedes 82111-4AA30i201510-201607

COLD AREA SPEC & WITH(REAR SEAT HEATER)

main82111-4AA41i201608-201708

COLD AREA SPEC & W/O(REAR SEAT HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(REAR SEAT HEATER)&HEAD LAMP-LED

main82111-4AA42i201708-201810

COLD AREA SPEC & W/O(REAR SEAT HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(REAR SEAT HEATER)&HEAD LAMP-LED

main82111-4AB40i201510-201608

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4AB41i201608-201708

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4AB43i201708

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4AC20i201510-201608

COLD AREA SPEC & W/O(REAR SEAT HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(REAR SEAT HEATER); COLD AREA SPEC & WITH(REAR SEAT HEATER)&HEAD LAMP-LED

main82111-4AJ40i201510-201608

COLD AREA SPEC & W/O(REAR SEAT HEATER); COLD AREA SPEC & WITH(REAR SEAT HEATER)

main82111-4AJ41supersedes 82111-4AJ31i201608-201708

COLD AREA SPEC & W/O(REAR SEAT HEATER); COLD AREA SPEC & WITH(REAR SEAT HEATER)

main82111-4AJ42i201708-201810

COLD AREA SPEC & W/O(REAR SEAT HEATER); COLD AREA SPEC & WITH(REAR SEAT HEATER)

main82111-4AL20supersedes 82111-42M93i201504-201510

COLD AREA SPEC

main82111-4AL30i201504-201510

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-4AL50supersedes 82111-4AL40i201504-201510

COLD AREA SPEC

main82111-4AL60i201504-201510

HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & W(*AHB)

main82111-4AL70i201504-201510

COLD AREA SPEC&HEADLAMP-DISCHARGE; COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB)

main82111-4AM00i201510-201608

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4AM01i201608-201710

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4AM02i201710

COLD AREA SPEC & W/O(REAR SEAT HEATER)

main82111-4AM10i201510-201608

HEAD LAMP-LED

main82111-4AM11i201608-201710

HEAD LAMP-LED

main82111-4AM12i201710

HEAD LAMP-LED

main82111-4AM20i201510-201608

COLD AREA SPEC & W/O(REAR SEAT HEATER)&HEAD LAMP-LED; COLD AREA SPEC & WITH(REAR SEAT HEATER); COLD AREA SPEC & WITH(REAR SEAT HEATER)&HEAD LAMP-LED

main82111-4AN30i201510-201608

HEAD LAMP-LED

main82111-4AN31i201608-201708

HEAD LAMP-LED

main82111-4AN33i201708-201810

HEAD LAMP-LED

main82111-4AN40supersedes 82111-4AN50i201510-201608

FRENCH SPEC&BASIC PACKAGE

main82111-4AN50i201510-201608

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4AN51i201608-201708

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4AN52i201708-201810

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main82111-4AN70i201608-201708

FRENCH SPEC&BASIC PACKAGE; HEAD LAMP-HALOGEN; HEAD LAMP-HALOGEN, W(*AHB)

main82111-4AN71i201708-201810

FRENCH SPEC&BASIC PACKAGE; HEAD LAMP-HALOGEN; HEAD LAMP-HALOGEN, W(*AHB)

main82111-4AN80i201608-201708

BASIC PACKAGE; HEAD LAMP-HALOGEN; HEAD LAMP-HALOGEN, W(*AHB)

main82111-4AN81i201708-201810

BASIC PACKAGE; HEAD LAMP-HALOGEN; HEAD LAMP-HALOGEN, W(*AHB)

82113WIRE, ENGINE ROOM, NO.3

main82113-42010i201510

CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main82113-42030i201510-201805

BACK MONITOR-WITH(*PVM); CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM)

main82113-42050i201608-201805

PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL DAB EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR); PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main82113-42060i201510-201810

PRE-COLLISION SYSTEM-WITH&BACK MONITOR-WITH(*PVM); PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM)

82712ASUPPORT, WIRING HARNESS

main82712-28440i201510-201810

main82712-33190i201510-201810

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42750i201710-201810

main82817-42A20i201510-201810

UK,MALTA SPEC; UK,MALTA SPEC&ANTI-THEFT SYSTEM-W/(IMMOBI&D-LOCK&ALM)&PITCH&GLASS SENS); UK,MALTA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBI&D-LOCK&ALARM&GLASS SENSOR)

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-42760i201710-201810

main82817-42A30i201510-201810

UK,MALTA SPEC; UK,MALTA SPEC&ANTI-THEFT SYSTEM-W/(IMMOBI&D-LOCK&ALM)&PITCH&GLASS SENS); UK,MALTA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBI&D-LOCK&ALARM&GLASS SENSOR)

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-42460i201510

main82817-78010i201510-201810

82821ECOVER, CONNECTOR

main82821-12400i201212-201510

BASIC PACKAGE

82821HCOVER, CONNECTOR

main82821-42090i201510-201810

BASIC PACKAGE&BACK MONITOR-WITHOUT

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-42010i201510

82991WIRE, FUSIBLE LINK REPAIR
