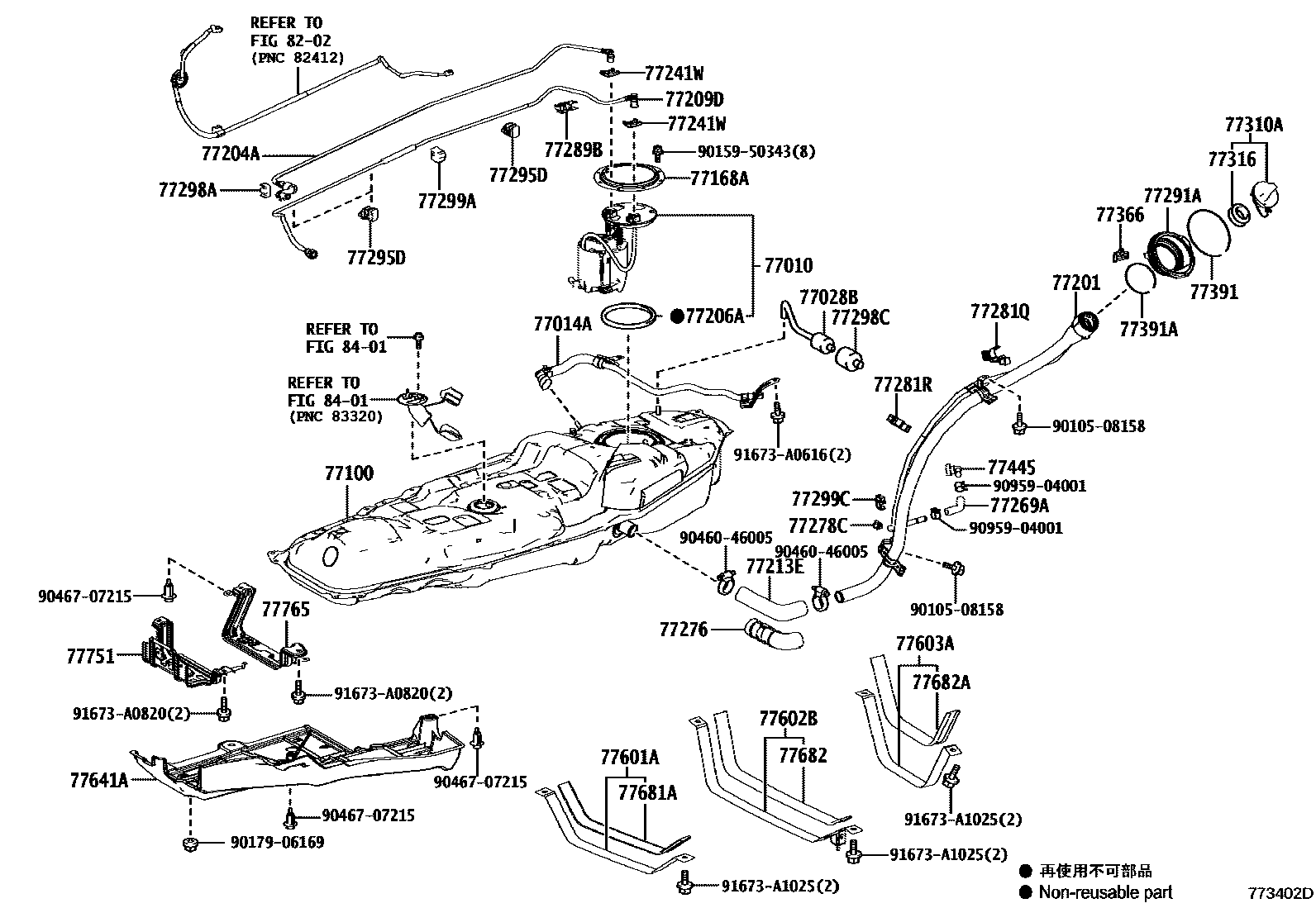

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK 0009 1FUEL TANK 0010 1FUEL TUBE 0011 1FUEL TUBE(COLD AREA SPEC) 0012 1FUEL TUBE 0013 1FUEL TUBE 0014 1FUEL TUBE 0015 1FUEL TUBE 0016 1FUEL TUBE 0017 1FUEL TUBE(COLD AREA SPEC) 0018 1FUEL LID OPENER 0019 1FUEL LID OPENER

77010TUBE ASSY, FUEL TANK VENT

main77010-42040iALA49..RUP;ALA49..(G,M)..DCRE201510

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-42010iALA4#,ZSA44201212-201405

main77014-42020iALA4#,ZSA44201406-201510

main77014-48011iAVA4#201510-201810

77028BTUBE SUB-ASSY, FUEL EVAPORATION, NO.3

main77028-42010iALA4#201212-201510

77100TANK ASSY, FUEL

main77001-42221iZSA44201212-201401

main77001-42231iALA4#201212-201510

main77001-42250iZSA44..6F201401-201510

main77001-42270iWWA42201510-201805

main77001-42290iAVA4#201510-201810

main77001-42370iASA44,ZSA4#..RUP201809

main77001-42380iALA49..JPP201809-201810

main77001-48190iZSA44..EUR201510-201808

main77001-48270iZSA44..EUR201809-201810

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iALA4#,ZSA44201212-201510

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-42211iALA4#201212-201310

main77201-42212iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201510-201810

main77201-42220iZSA44201212-201310

main77201-42221iAVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M)201510-201810

77204ATUBE, FUEL TANK RETURN

main77204-42080iALA49201510-201909

main77204-42090iWWA42201510-201805

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-52010iALA4#,ZSA44201212-201510

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42170iZSA44..RHD..X;ASA44,ZSA4#..RUP;ASA44..JPP..X..RUS;ZSA42..JPP..6F..(G,M);ZSA44..JPP..6F..(G,X)..RUS201510

main77209-42180iALA49..RUP;ALA49..(G,M)..DCRE201510

main77209-42200iWWA42201510-201805

main77209-48110iAVA4#201510-201810

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-42080iZSA44..RHD..X;ASA44,ZSA4#..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

main77213-42100iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201510-201810

77241WCLIP, TUBE JOINT

main77241-33011×2iALA4#; ZSA44201212-201510

77269AHOSE, FUEL TANK BREATHER

main77269-42030iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

77276PROTECTOR, FUEL HOSE

main77276-42020iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-42030iALA4#,ZSA44201212-201510

77281QCLAMP, FUEL FILLER, NO.1

main77281-42030iALA4#,ZSA44201212-201510

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-42040iALA4#,ZSA44201212-201510

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52110iAVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M)201510-201810

77289BCLAMP, FUEL TUBE, NO.3

main77289-42020iZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201510

main77289-42030iWWA42201510-201805

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-42050iALA4#,ZSA44201212-201510

77295DGROMMET, FUEL TUBE

main77295-42110×3iALA4#,ZSA44201212-201510

main77295-42130×3iWWA42201510-201805

77298ACLAMP, FUEL TUBE, NO.4

main77298-42030iZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201510

main77298-48110×3iAVA4#201510-201810

77298CCLAMP, FUEL TUBE, NO.4

main77298-42010iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201510-201810

main77298-48130×2iAVA4#201510-201810

77299ACLAMP, FUEL TUBE, NO.5

main77298-48140iAVA4#201510-201810

main77299-42010iZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201510

main77299-42020iWWA42201510-201805

77299CCLAMP (FOR FUEL FILLER PIPE)

main89639-28130iALA4#,ZSA44201212-201510

77310ACAP ASSY, FUEL TANK

main77300-20020iALA49..JPP..DCRL;ALA49..JPP..X..DCRE201510-201810

main77300-52030iZSA44201212-201510

77316GASKET, FUEL TANK CAP

main77316-52040iALA4#,ZSA44201212-201510

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iALA4#,ZSA44201212-201510

77391RING, FUEL INLET BOX

main77391-30020iALA4#,ZSA44201212-201510

77391ARING, FUEL INLET BOX

main77391-12020iALA4#,ZSA44201212-201510

77445CONNECTOR, FUEL TANK VENT, NO.2

main77445-42020iALA4#,ZSA44201212-201405

main77445-42050iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42090iALA4#,ZSA44201212-201409

main77601-42091iALA4#,ZSA44201410-201510

main77601-78010iAVA4#201510-201810

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-42030iALA4#,ZSA44201212-201409

main77602-42031iALA4#,ZSA44201410-201510

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-42040iAVA4#201510-201810

main77603-42030iALA4#,ZSA44201212-201409

main77603-42031iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)201510-201810

77641APROTECTOR, FUEL TANK, NO.1

main77641-42040iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

main77641-42060iASA44,AVA4#,WWA42,ZSA44..EUR201510-201810

77681ASEAT, FUEL TANK BAND

main77681-42020iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201510

main77681-60210iAVA4#201510-201810

77682SEAT, FUEL TANK BAND, LH

main77681-21010iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201510

77682ASEAT, FUEL TANK BAND, NO.2

main77681-42010iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)201510-201810

main77681-78010iAVA4#201510-201810

77751BRACKET, CHARCOAL CANISTER BASE

main77751-0R030iALA4#,ZSA44201212-201411

main77751-78020iALA4#,ZSA44201412-201510

77765PROTECTOR, CHARCOAL CANISTER

main77765-0R030iALA4#,ZSA44201212-201411

main77765-78020iALA4#,ZSA44201412-201510

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508158

main90105-08158

9015950343

main90159-50343

9017906169

main90179-06169

9046046005

main90460-46005

9046707215

main90467-07215

9095904001

main90959-04001

91673A0616

main91673-A0616

91673A0820

main91673-A0820

91673A1025

main91673-A1025

50 parts on this diagram · 19 diagrams in section
