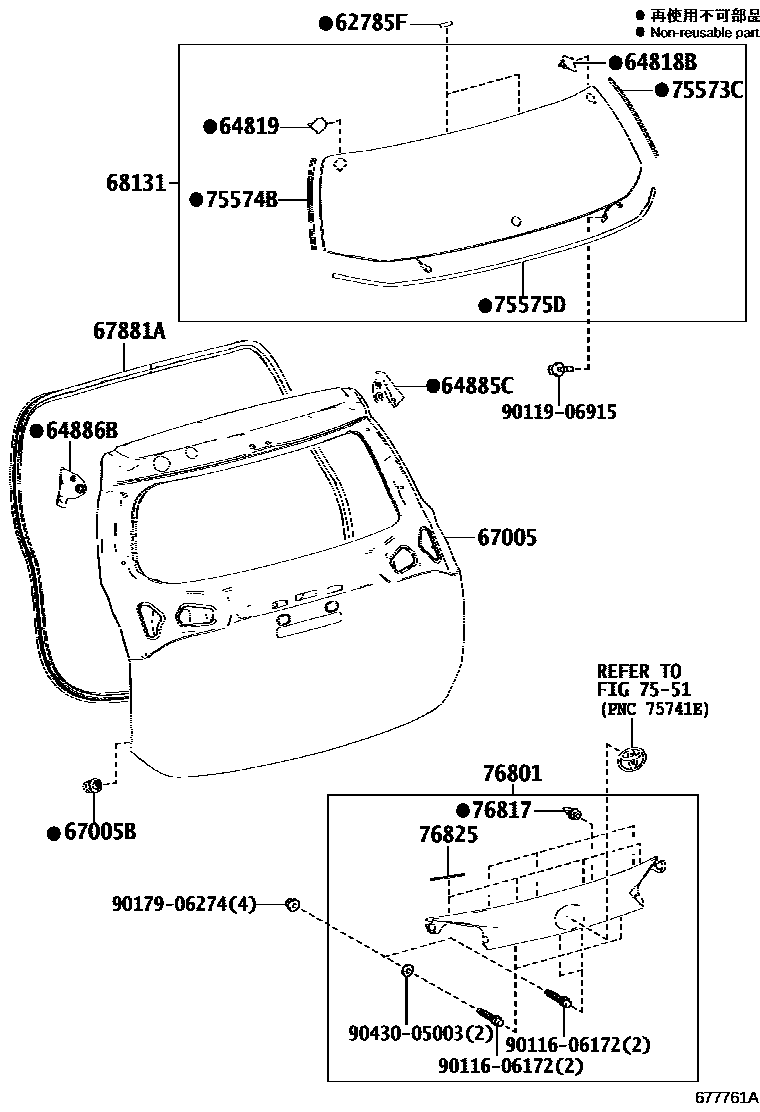

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
64885CCHANNEL, BACK DOOR GLASS, RH
main64885-42010iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)
sub67005-42431
BASIC PACKAGE&BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT
POWER DOOR LOCK-WITH
BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT
POWER DOOR LOCK-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT
sub67005-42441
POWER DOOR LOCK-WITH(POWER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT
BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT
sub67005-42451
POWER DOOR LOCK-WITH
AUSTRALIA SPEC&AUDIO-13MM *DA W(CD & USB & *BT)
POWER DOOR LOCK-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
POWER DOOR LOCK-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*DOP)
POWER DOOR LOCK-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA))
POWER DOOR LOCK-WITH(POWER BACK DOOR)
sub67005-42461
BACK MONITOR(REAR TELEVISION CAMERA)-WITH
POWER DOOR LOCK-WITH(POWER BACK DOOR)
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*DOP)
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA))
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*UVCEHT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)
(J)
*UVCEHT,T=3.1,GREEN
main68105-42150iASA44,WWA42..(M,X)..EUR;AVA4#,ZSA44..JPP..(M,X);AVA4#,ZSA44..JPP..G..RUS;ALA49,ASA44,ZSA42..JPP..RUS201510-201810
EXCEPT FOR WVTA&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
main68105-42150iASA44,WWA42..(M,X)..EUR;AVA4#,ZSA44..JPP..(M,X);AVA4#,ZSA44..JPP..G..RUS;ALA49,ASA44,ZSA42..JPP..RUS201510-201810
REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
main68105-42160iALA49..M;ALA49..RHD..X;ALA40,41,ZSA44..LHD..M;ALA40,41,ZSA44..RHD..(M,X)201212-201510
*EHT,T=3.1,DK.GRAY
main68105-42160iALA49..M;ALA49..RHD..X;ALA40,41,ZSA44..LHD..M;ALA40,41,ZSA44..RHD..(M,X)201212-201510
*EHT,T=3.1,DK.GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
REAR SIDE GLASS-REINFORCED(GRAY)
7551
75573CMOULDING, BACK WINDOW, OUTSIDE
(J)
75574BMOULDING, BACK WINDOW, OUTSIDE LH
(J)
75575DMOULDING, BACK WINDOW, LOWER
(L)
(J)
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT,DK. STEEL MC.,1H2
DK. STEEL MC.,1H2
BLACK MC.,209
RED M.M.,3R3
BRONZE M.M.,4T3
BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT,DK.BROWN ME.,4U5
DK.BROWN ME.,4U5
ORANGE ME.,4R8
BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT,ORANGE ME.,4R8
DK.GREEN MC.,6V4
BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER),DK.GREEN MC.,6V4
AUDIO-6SPEAKER(AUDIO LESS),DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*DOP),DK. STEEL MC.,1H2
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)),DK. STEEL MC.,1H2
AUSTRALIA SPEC&AUDIO-13MM *DA W(CD & USB & *BT),DK. STEEL MC.,1H2
BACK MONITOR(REAR TELEVISION CAMERA)-WITH,DK. STEEL MC.,1H2
DK. STEEL MC.,1H2
BLACK MC.,209
RED M.M.,3R3
BRONZE M.M.,4T3
BACK MONITOR(REAR TELEVISION CAMERA)-WITH,DK.BROWN ME.,4U5
DK.BROWN ME.,4U5
AUSTRALIA SPEC&AUDIO-13MM *DA W(CD & USB & *BT),DK.BROWN ME.,4U5
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*DOP),DK.BROWN ME.,4U5
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)),DK.BROWN ME.,4U5
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*DOP),ORANGE ME.,4R8
BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)),ORANGE ME.,4R8
ORANGE ME.,4R8
BACK MONITOR(REAR TELEVISION CAMERA)-WITH,ORANGE ME.,4R8
AUSTRALIA SPEC&AUDIO-13MM *DA W(CD & USB & *BT),ORANGE ME.,4R8
SOUTH AFRICA SPEC&AUDIO-*DX*DA&USB&*BT&6SPEAKER,DK.GREEN MC.,6V4
NEW ZEALAND SPEC&AUDIO-6SPEAKER(AUDIO LESS),DK.GREEN MC.,6V4
AUSTRALIA SPEC&AUDIO-6SPEAKER(AUDIO LESS),DK.GREEN MC.,6V4
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
PAINT REQ.
sub76801-42902
PAINT REQ.,BASIC PACKAGE&AUDIO-WITHOUT
sub76801-42902
PAINT REQ.,AUDIO-6SPEAKER(AUDIO LESS)
sub76801-42902
PAINT REQ.,BACK MONITOR-WITHOUT
sub76801-42902
PAINT REQ.,BACK MONITOR-WITH(*PVM)
sub76801-42903
PAINT REQ.,AUDIO-6SPEAKER 7INCH DA-FULL DAB EU
sub76801-42903
PAINT REQ.,AUDIO-6SPEAKER 7INCH DA-FULL EU
sub76801-42903
PAINT REQ.,BACK MONITOR-WITH(*BGM)
sub76801-42903
PAINT REQ.
PAINT REQ.
PAINT REQ.,AUDIO-6SPEAKER 7INCH DA-FULL EU
76817CLIP, BACK DOOR OUTSIDE GARNISH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
9011606172
main90116-06172
9011906915
main90119-06915
9017906274
main90179-06274
9043005003
main90430-05003
20 parts on this diagram · 3 diagrams in section
