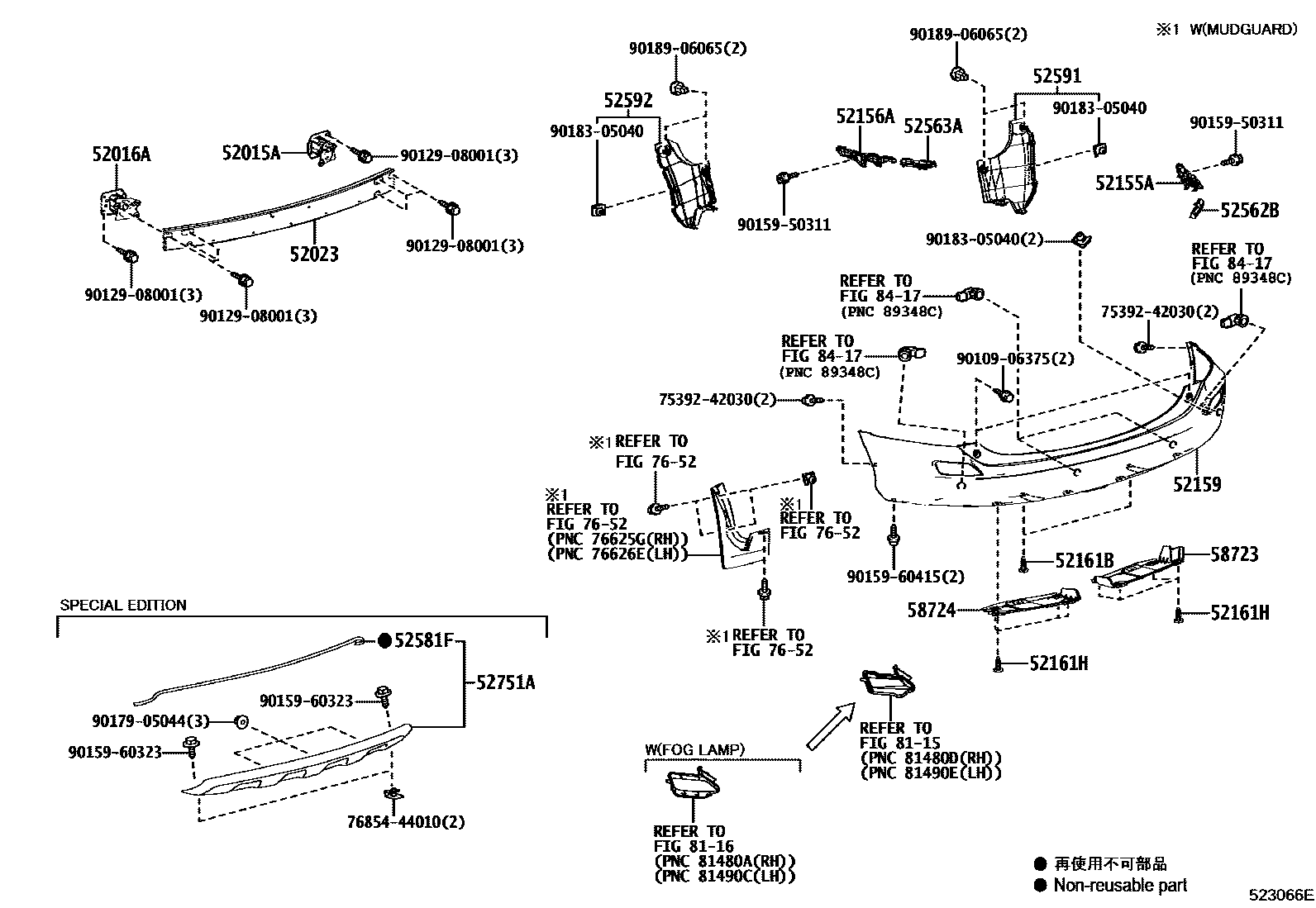

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
main52015-42011iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
52016AARM SUB-ASSY, REAR BUMPER, LH
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
main52023-42040supersedes 52171-42030iASA44..X..RUS;ZSA44..RHD..X;ALA49,ZSA4#..RUP..X;WWA42,ZSA44..JPP..6F..X..(DCRE,EFI); AVA42..G..RUS;ALA49,ASA44,ZSA4#..RUP..G;ALA49,WWA42,ZSA4#..6F..G..(DCRE,EFI); AVA42..M..RUS;ALA49,ASA44,ZSA4#..RUP..M;ALA49,WWA42,ZSA42..JPP..6F..M201510
CLEARANCE & BACK SONAR-WITH(FRONT&REAR); CLEARANCE & BACK SONAR-WITH(REAR)
main52171-42030iZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ZSA44..LHD..(M,X)..EUR;ASA44,AVA42..(M,X)..EUR;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(M,X)..(DCRL,HTWC)201510-201810
52155ASUPPORT, REAR BUMPER SIDE, RH
main52155-42040iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
52156ASUPPORT, REAR BUMPER SIDE, LH
main52156-42020iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
52159COVER, REAR BUMPER
PAINT REQ.
main52159-42200supersedes 52159-42190iALA4#,ZSA44..G; ALA4#,ZSA44..LHD..(M,X); ALA4#,ZSA44..M,X; ALA49..RHD..6F..X..DCR; ALA49..RHD..6FC..X..DCR; ALA49..RHD..X..DCR; ZSA44..RHD..A..X201212-201510
NO PAINT REQ.; NO PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH(REAR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR); NO PAINT REQ.,MUD GUARD-WITH(FRONT & REAR)&CLEARANCE & BACK SONAR-WITH(REAR); NO PAINT REQ.,NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH(REAR); NO PAINT REQ.,SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH(REAR); NO PAINT REQ.,SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH(REAR)
PAINT REQ.
main52159-42190iALA4#,ZSA44..G..(DCRE,DCRL,HTWVM); ALA4#,ZSA44..M,X; ALA49..LHD..G..DCR201212-201510
NO PAINT REQ.; NO PAINT REQ.,BASIC PACKAGE; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,MUD GUARD-WITH(FRONT & REAR)&CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITHOUT&SPECIAL EDITION
CLEARANCE & BACK SONAR-WITH(REAR)&SPECIAL EDITION
52161BPIECE, REAR BUMPER
52161HPIECE, REAR BUMPER
main52161-16010×8iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-42050iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-42040iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
52581FPROTECTOR, REAR BUMPER
SPECIAL EDITION
52591SEAL, REAR BUMPER SIDE, RH
main52591-42090iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
52592SEAL, REAR BUMPER SIDE, LH
main52592-42090iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
52751AMOULDING, REAR BUMPER, CENTER
SPECIAL EDITION,EXCEPT COLOR 070
SPECIAL EDITION,COLOR 070 ONLY
58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1
main58723-42020supersedes 58723-42050iZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
main58723-42050supersedes 58723-42020iAVA44..G..RUS;AVA4#,WWA42,ZSA44..EUR;ALA49,ASA44,ZSA4#..JPP..G..(DCRL,EFI); AVA44..M..RUS;ALA49,ASA44,ZSA4#..JPP..(M,X)..(DCRE,DCRL,EFI)201712-201810
SPARE TIRE-165/80D17(REINFORCED TEMPORARY)
58724PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2
main58724-42020supersedes 58724-42050iZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
main58724-42050supersedes 58724-42020iAVA44..G..RUS;AVA4#,WWA42,ZSA44..EUR;ALA49,ASA44,ZSA4#..JPP..G..(DCRL,EFI); AVA44..M..RUS;ALA49,ASA44,ZSA4#..JPP..(M,X)..(DCRE,DCRL,EFI)201712-201810
SPARE TIRE-165/80D17(REINFORCED TEMPORARY)
7652SPOILER & SIDE MUDGUARD
8115REFLEX REFLECTOR
8116REAR FOG LAMP
8417CLEARANCE & BACK SONAR
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
7685444010RETAINER, FRONT SPOILER, UPPER LH
main76854-44010
9010906375
main90109-06375
9012908001
main90129-08001
9015950311
main90159-50311
9015960323
main90159-60323
9015960415
main90159-60415
9017905044
main90179-05044
9018305040
main90183-05040
9018906065
main90189-06065
30 parts on this diagram · 2 diagrams in section
