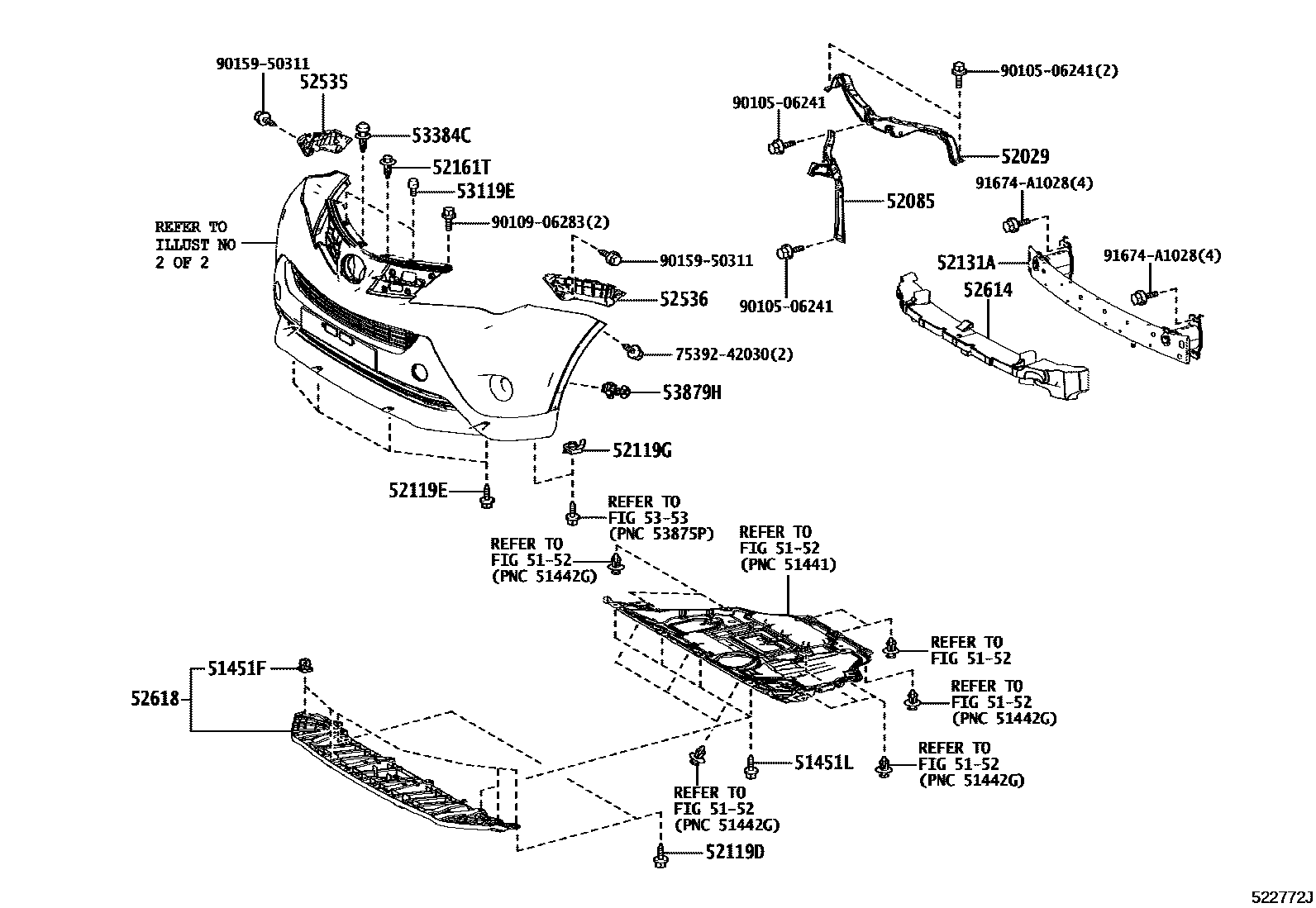

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

51451FGROMMET, NO.1

main90189-06193×6iALA4#,ZSA44201212-201501

main90189-06237×6iALA4#,ZSA44201502-201510

51451LBOLT, NO.1

main90119-06767×4iALA4#,ZSA44201212-201510

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-42100iALA4#,ZSA44201212-201510

main52029-42110iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810

52085STAY SUB-ASSY, FRONT BUMPER, CENTER

main52085-42040iALA4#,ZSA44201212-201510

main52085-42050iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810

52119DSCREW, NO.1

main90159-60431×2iALA4#,ZSA44201212-201510

52119ESCREW, NO.2

main90159-60431×4iALA4#,ZSA44201212-201510

52119GCLIP, NO.1

main90467-05114×2iALA4#,ZSA44201212-201510

52131AREINFORCEMENT, FRONT BUMPER

main52021-42110iALA4#,ZSA44201212-201510

main52021-42120iALA49,ASA44,AVA4#,ZSA4#..RUS201510-201909

52161TPIECE, FRONT BUMPER

main52161-16010iALA4#,ZSA44201212-201510

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42070iALA4#,ZSA44201212-201510

main52535-42080iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42050iALA4#,ZSA44201212-201510

main52536-42070iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-42080iALA4#,ZSA44201212-201510

main52614-42110iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810

52618ABSORBER, FRONT BUMPER, LOWER

main52618-42050iALA4#,ZSA44201212-201510

main52618-42070iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810

53119EPROTECTOR, RADIATOR GRILLE

main53119-12150×2iALA4#,ZSA44201212-201510

53384CCUSHION, HOOD, CENTER

main53384-68010iALA4#,ZSA44201212-201510

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53879HRETAINER, FRONT FENDER LINER

main53879-28010×2iALA4#,ZSA44201212-201510

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9010506241

main90105-06241

9010906283

main90109-06283

9015950311

main90159-50311

91674A1028

main91674-A1028

23 parts on this diagram · 4 diagrams in section
