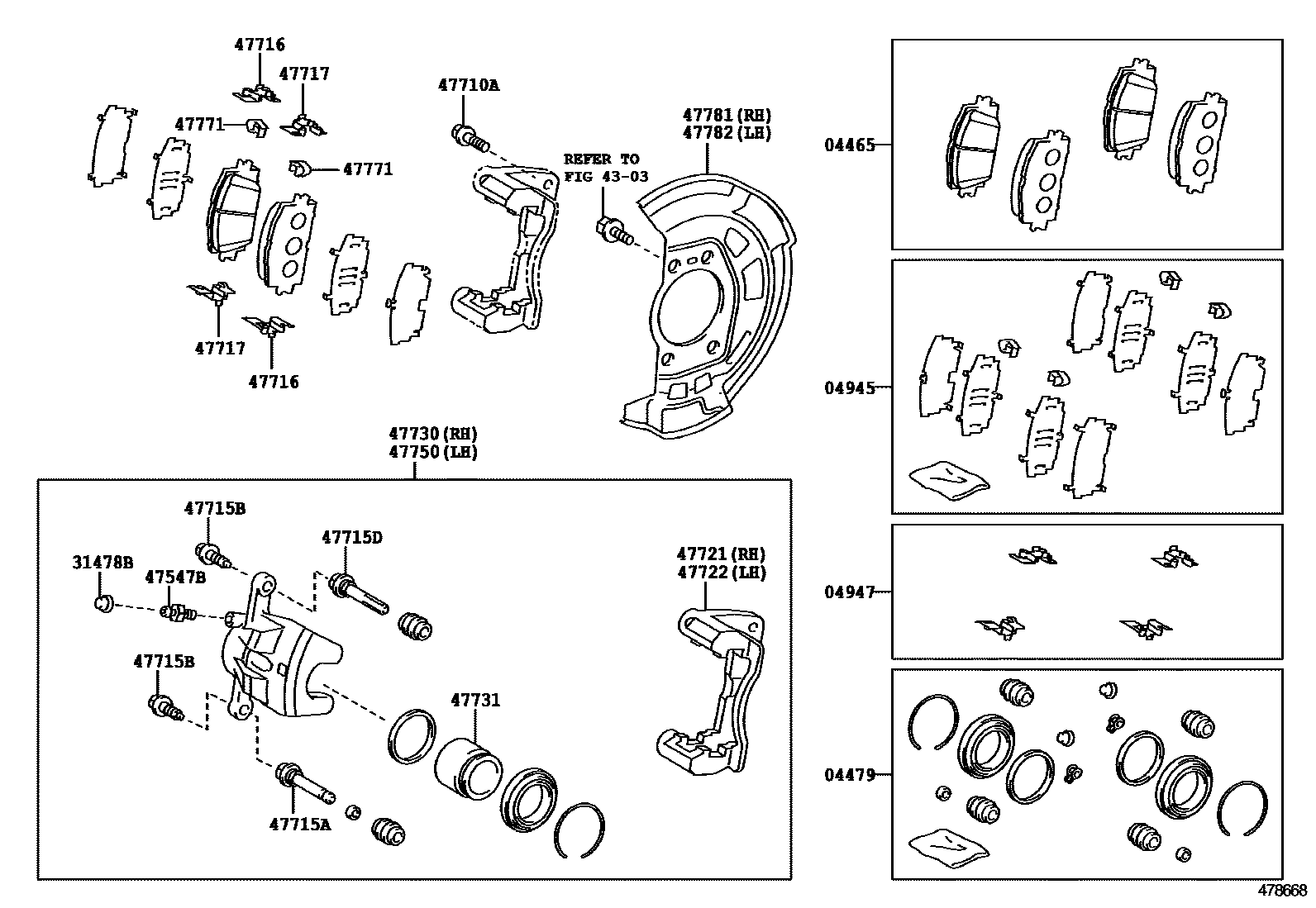

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1W/O(FRONT WHEEL BRAKE-17") 0003 1FRONT WHEEL BRAKE-17"PE45T(2

04465PAD KIT, DISC BRAKE, FRONT

main04465-42190iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201212-201810

MARK TEXTAR T4146

main04465-48170iAVA4#201510-201810

MARK TEXTAR T4146,SPAIN SPEC

main04465-48170iWWA42,ZSA44..LHD..EUR201510-201810

MARK TEXTAR T4146

main04465-48170iWWA42,ZSA44..LHD..EUR201510-201810

MARK TEXTAR T4146,GERMANY SPEC

main04465-48170iWWA42,ZSA44..LHD..EUR201510-201810

MARK TEXTAR T4146,ITALY SPEC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iAVA4#..LHD..EUR201510-201810

FRENCH SPEC&BASIC PACKAGE

main04478-33100iALA4#,ZSA44201212-201510

main04478-33100iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main04478-33100iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

main04478-48150iAVA4#201510-201810

ITALY SPEC

main04478-48150iAVA4#201510-201810

SPAIN SPEC

main04478-48150iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42060iAVA4#..LHD..EUR201510-201810

FRENCH SPEC&BASIC PACKAGE

main04945-42060iALA4#,ZSA44201212-201510

main04945-42060iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main04945-42060iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

main04945-48160iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

main04945-48160iWWA42,ZSA44..LHD..EUR201510-201810

ITALY SPEC

main04945-48160iWWA42,ZSA44..LHD..EUR201510-201810

SPAIN SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iAVA4#..EUR201510-201810

EXCEPT FOR WVTA

main04947-42050iALA4#,ZSA44201212-201510

main04947-42050iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main04947-42050iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main04947-48080iAVA4#201510-201810

GERMANY SPEC

main04947-48080iAVA4#201510-201810

SPAIN SPEC

main04947-48080iWWA42,ZSA44..LHD..EUR201510-201810

ITALY SPEC

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iALA4#,ZSA44201212-201810

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

main47547-12130iAVA4#201510-201810

ITALY SPEC

main47547-12130iAVA4#201510-201810

SPAIN SPEC

main47547-20010iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47547-20010iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47547-20010iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

main47547-20010iALA4#,ZSA44201212-201510

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iALA4#,ZSA44201212-201810

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

main47714-48150iWWA42,ZSA44..LHD..EUR201510-201810

SPAIN SPEC

main47714-48150iAVA4#201510-201810

ITALY SPEC

main47715-12A10iALA4#,ZSA44201212-201510

main47715-12A10iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47715-12A10iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47715-12A10iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iALA4#,ZSA44201212-201510

main90105-08164iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main90105-08164iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main90105-08164iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iWWA42,ZSA44..LHD..EUR201510-201810

SPAIN SPEC

main47715-48150iAVA4#201510-201810

GERMANY SPEC

main47715-48150iAVA4#201510-201810

ITALY SPEC

main47715-52190iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201212-201510

main47715-52190iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47715-52190iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47715-52190iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48150iWWA42,ZSA44..LHD..EUR201510-201810

SPAIN SPEC

main47716-48150iAVA4#201510-201810

GERMANY SPEC

main47716-48150iAVA4#201510-201810

ITALY SPEC

main47716-52191iALA4#,ZSA44201212-201510

main47716-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47716-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47716-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48150iWWA42,ZSA44..LHD..EUR201510-201810

SPAIN SPEC

main47717-48150iAVA4#201510-201810

GERMANY SPEC

main47717-48150iAVA4#201510-201810

ITALY SPEC

main47717-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47717-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47717-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

main47717-52191iALA4#,ZSA44201212-201510

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42091iAVA4#..RHD201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47721-42091iALA4#,ZSA44201212-201510

main47721-42091iAVA4#..RHD201510-201810

FRENCH SPEC&BASIC PACKAGE

main47721-42091iAVA4#..RHD201510-201810

EXCEPT FOR WVTA

main47721-48150iAVA4#201510-201810

SPAIN SPEC

main47721-48150iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

main47721-48150iWWA42,ZSA44..LHD..EUR201510-201810

ITALY SPEC

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42091iALA4#,ZSA44201212-201510

main47722-42091iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47722-42091iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47722-42091iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

main47722-48140iWWA42,ZSA44..LHD..EUR201510-201810

SPAIN SPEC

main47722-48140iAVA4#201510-201810

GERMANY SPEC

main47722-48140iAVA4#201510-201810

ITALY SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42091iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47730-42091iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47730-42091iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

main47730-42091iALA4#,ZSA44201212-201510

main47730-48150iAVA4#201510-201810

ITALY SPEC

main47730-48150iAVA4#201510-201810

SPAIN SPEC

main47730-48150iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

47731PISTON, FRONT DISC BRAKE

main47731-12A70iAVA4#..RHD201510-201810

EXCEPT FOR WVTA

main47731-12A70iALA4#,ZSA44201212-201510

main47731-12A70iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47731-12A70iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47731-48150iAVA4#201510-201810

ITALY SPEC

main47731-48150iAVA4#201510-201810

SPAIN SPEC

main47731-48150iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42091iAVA4#..RHD201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47750-42091iALA4#,ZSA44201212-201510

main47750-42091iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47750-42091iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

main47750-48110iAVA4#201510-201810

SPAIN SPEC

main47750-48110iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

main47750-48110iWWA42,ZSA44..LHD..EUR201510-201810

ITALY SPEC

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

main47771-48150iAVA4#201510-201810

ITALY SPEC

main47771-48150iAVA4#201510-201810

SPAIN SPEC

main47771-52191iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201212-201510

main47771-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47771-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47771-52191iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47781-42040iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47781-42040iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

EXCEPT FOR WVTA

main47781-42040iALA4#,ZSA44201212-201510

main47781-42050iAVA4#201510-201810

ITALY SPEC

main47781-42050iAVA4#201510-201810

SPAIN SPEC

main47781-42050iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iAVA4#..RHD201510-201810

EXCEPT FOR WVTA

main47782-42040iALA4#,ZSA44201212-201510

main47782-42040iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

UK,MALTA SPEC&BASIC PACKAGE

main47782-42040iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCR201510-201810

FRENCH SPEC&BASIC PACKAGE

main47782-42050iAVA4#201510-201810

ITALY SPEC

main47782-42050iAVA4#201510-201810

SPAIN SPEC

main47782-42050iWWA42,ZSA44..LHD..EUR201510-201810

GERMANY SPEC

21 parts on this diagram · 2 diagrams in section
