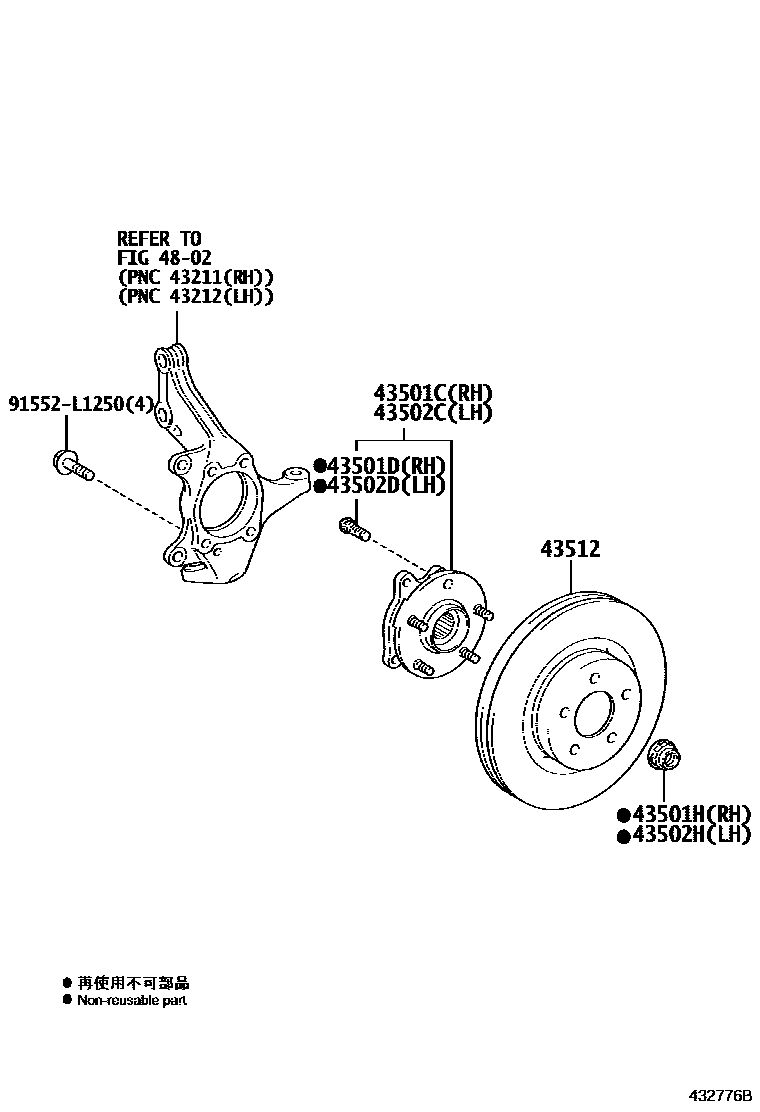

FRONT AXLE HUB
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×5iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201510-201810
43502HNUT (FOR FRONT AXLE SHAFT LH)
43512DISC, FRONT
main43512-42100×2iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201510
GERMANY SPEC; ITALY SPEC; SPAIN SPEC
EXCEPT FOR WVTA; FRENCH SPEC&BASIC PACKAGE; UK,MALTA SPEC&BASIC PACKAGE
4802FRONT AXLE ARM & STEERING KNUCKLE
91552L1250
main91552-L1250
9 parts on this diagram · 1 diagram in section
