TRANSMISSION CASE & OIL PAN (ATM)

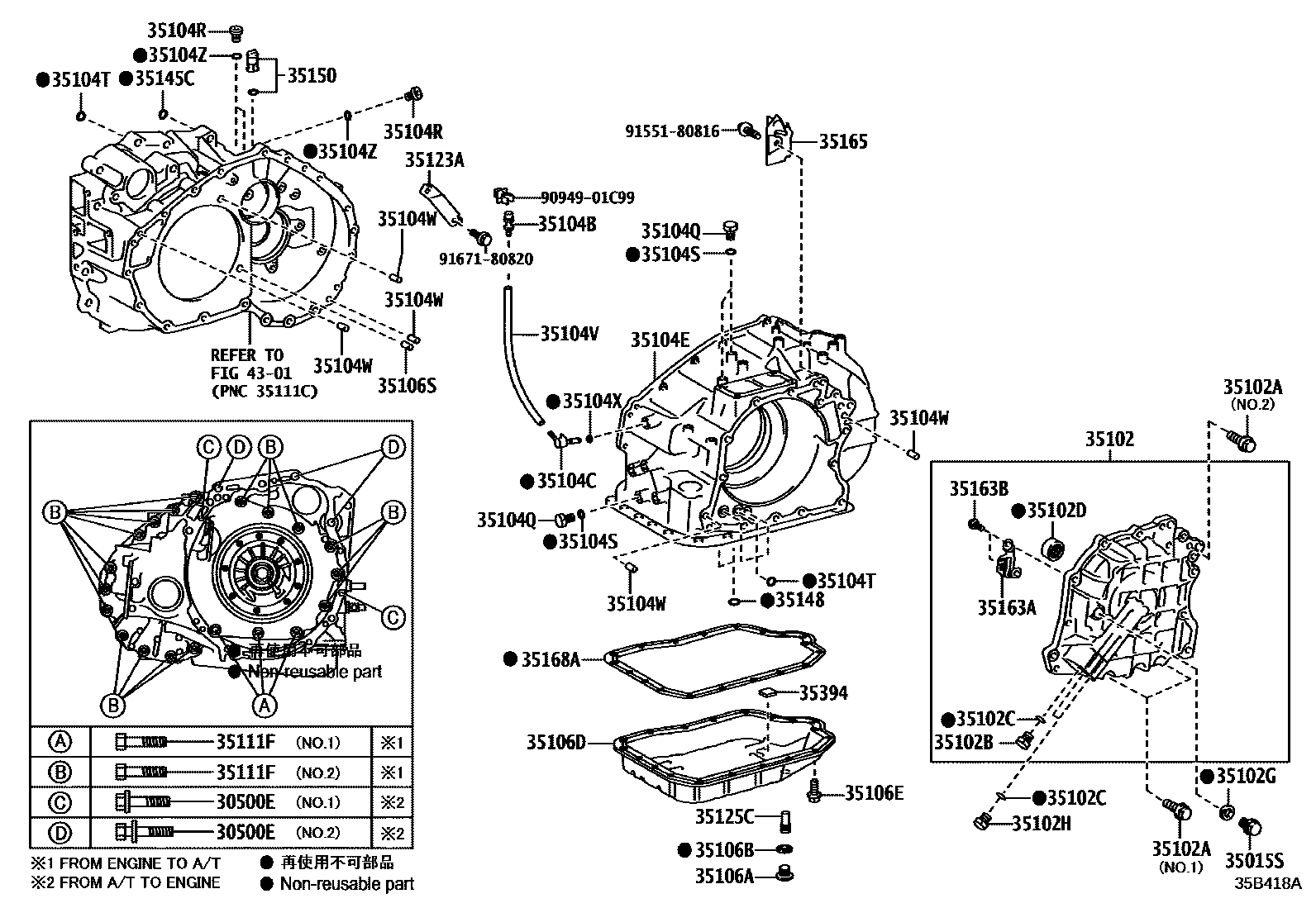

Parts diagram

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-12042i201510-201810

*12-1.25PX75-30,NO.1

main90119-12168×2i201510-201810

*12-1.25PX55-30,NO.1; *12-1.25PX55-30,NO.2

main91512-61050×3i201510-201810

*10-1.25PX50-30,NO.2; *10-1.25PX50-30,NO.3

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064i201510

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-28041i201212-201309

main35102-28042i201309-201510

main35102-33110i201601-201811

*284

main35102-33120i201709

*285

main35102-42041i201510-201512

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2i201212-201510

*8-1.25PX28-22,NO.1

main91551-00828×12i201510

*8-1.25PX28-22,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001i201212-201510

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3i201212-201510

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010i201212-201510

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008i201510

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2i201510-201810

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149i201510-201810

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187i201510

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-33072i201212-201402

main35141-33073i201402-201510

main35141-33141i201709-201810

*285

main35141-73011i201510-201810

*284

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3i201212-201510

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3i201212-201510

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3i201510

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4i201212-201510

35104VHOSE (FOR BREATHER PLUG)

main35121-20090i201510

main35121-33051i201709

*285

main35121-73011i201510-201811

*284

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5i201510-201810

35104XRING, O (FOR BREATHER PLUG)

main90301-06021i201212-201510

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3i201212-201510

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034i201212-201510

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008i201510-201810

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33061i201212-201310

main35106-33070i201709-201810

*285

main35106-48010i201310-201502

main35106-48011i201510-201810

main35106-73010i201510-201810

*284

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18i201510-201810

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007i201212-201510

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3i201510-201810

*8-1.25PX45-22,NO.1

main91551-10845×17i201212-201510

*8-1.25PX45-22,NO.2

35123ASKIRT, TRANSMISSION BREATHER

main35123-21010i201510-201810

main35123-42010i201510-201810

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33130i201510

main35125-73010i201510-201810

35145CGASKET, TRANSAXLE CASE

main35145-33010i201212-201510

35148GASKET, GOVERNOR APPLY, NO.1

main35145-33010×2i201212-201510

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010i201510-201810

35163APLATE, TRANSAXLE REAR COVER

main35163-33010i201510-201810

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2i201212-201510

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010i201510-201810

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33080i201510

main35168-73010i201510-201810

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2i201212-201510

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9094901C99

main90949-01C99

9155180816

main91551-80816

9167180820

main91671-80820
