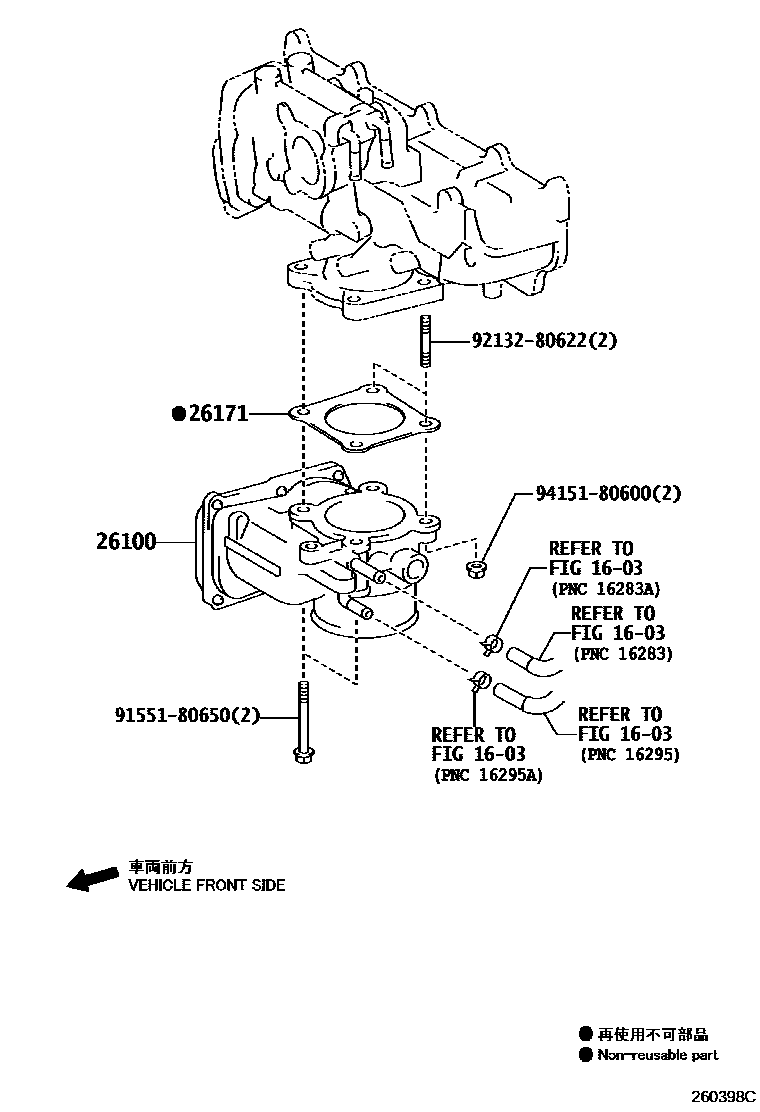

VENTURI

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

26100VENTURI ASSY

main26100-0R020i1ADFTV,2AD#..ALA4#; 1ADFTV..ALA40; 2ADFHV..ALA49; 2ADFTV..ALA49..DCRE201212-201510

*119; 1AD-FTV,*119; 2AD-FHV,*119; 2AD-FTV,*119

26171GASKET, VENTURI

main26171-0R010i1ADFTV,2AD#..ALA4#; 1ADFTV..ALA40; 2ADFHV..ALA49; 2ADFTV..ALA49..DCRE201212-201510

*119; 1AD-FTV,*119; 2AD-FHV,*119; 2AD-FTV,*119

9155180650

main91551-80650

9213280622

main92132-80622

9415180600

main94151-80600

6 parts on this diagram · 1 diagram in section
