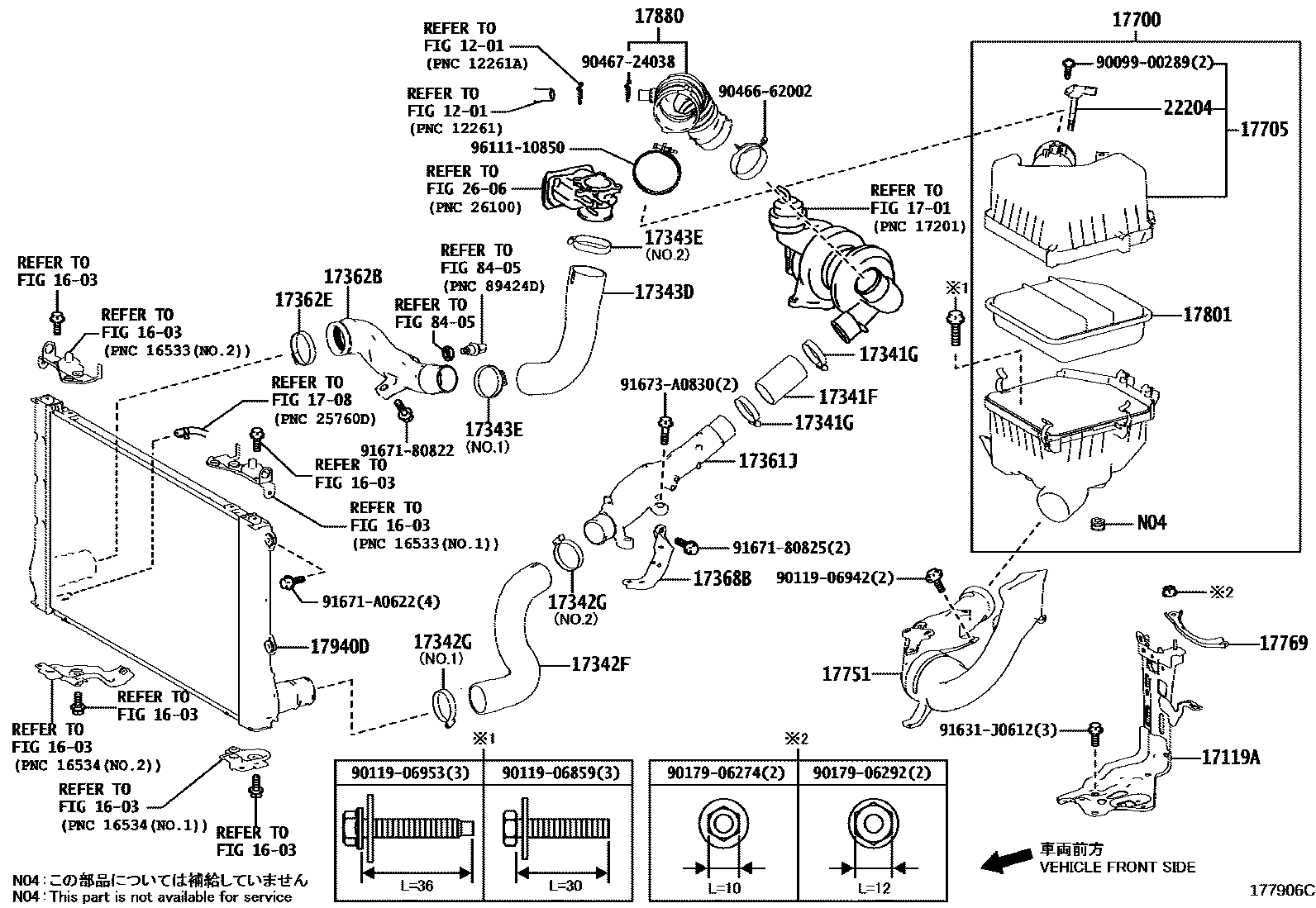

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

17119ABRACKET, AIR CLEANER

main17119-26030i1ADFTV,2AD#..ALA4#201212-201510

main17119-36030i2ARFXE..AVA44201510-201810

17341FHOSE, AIR, NO.1

main17341-26101i1ADFTV,2AD#..ALA4#201212-201510

main17341-53010i2WW..WWA42201510-201805

17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)

main90460-65012×2i1ADFTV,2AD#..ALA4#201212-201510

main90460-70003×2i2WW..WWA42201510-201805

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-26170i2ADFTV..ALA49..JPP..X201510-201810

main17342-26180i2ADFHV..ALA49..JPP201510-201810

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90460-67008i1ADFTV,2AD#..ALA4#201212-201510

NO.2:REFER ILLUST.

main90460-73011i2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X201510-201810

NO.1:REFER ILLUST.

17343DHOSE, AIR, NO.3

main17343-26110i2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X201510-201810

main17343-53010i2WW..WWA42201510-201805

17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)

main90460-70003i2WW..WWA42201510-201805

main90460-73011i2AD#..ALA49..RUP;2ADFTV..ALA49..G,M201510

NO.1:REFER ILLUST.

main90460-77002i2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X201510-201810

NO.2:REFER ILLUST.

17361JTUBE, AIR, NO.1

main17361-26070i2ADFTV..ALA49..JPP..X201510-201810

main17361-26080i2AD#..ALA49..6FC201212-201510

main17361-53010i2WW..WWA42201510-201805

17362BTUBE, AIR, NO.2

main17362-26040i2AD#..ALA49..RUP;2ADFTV..ALA49..G,M201510

main17362-53010i2WW..WWA42201510-201805

17362ECLAMP, NO.2(FOR AIR TUBE, NO.2)

main90460-73011i1ADFTV,2AD#..ALA4#201212-201510

17368BSUPPORT, AIR TUBE

main17368-26040i1ADFTV,2ADFTV..ALA4#..6F201212-201510

main17368-26050i2ADFHV..ALA49..JPP201510-201810

17700CLEANER ASSY, AIR

main17700-26360i1ADFTV,2AD#..ALA4#..DCRE,DCRL201212-201510

main17700-26390i2ADFTV..ALA49..DCR201212-201510

main17700-36260i2ARFE..ASA44201510-201909

main17700-36320i2ARFXE..AVA44;2ARFXE..AVA42..EUR201510-201810

main17700-37241i3ZR#..ZSA4#201510

main17700-YV020i2WW..WWA42201510-201805

17705CAP SUB-ASSY, AIR CLEANER

main17705-26140i1ADFTV,2AD#..ALA4#..DCRE,DCRL201212-201510

main17705-26170i2ADFTV..ALA49..DCR201212-201510

main17705-36090i2ARFE..ASA44201510-201909

main17705-36110i2ARFXE..AVA44;2ARFXE..AVA42..EUR201510-201810

main17705-37141i3ZRFAE..ZSA44201212-201510

17751INLET, AIR CLEANER, NO.1

main17751-26060i2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X201605-201810

main17751-26070i1ADFTV,2AD#..ALA4#201212-201510

main17751-28060i3ZRFAE..ZSA44201212-201510

main17751-36051i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

main17751-36080i2ARFXE..AVA4#201510-201810

main17751-53010i2WW..WWA42201510-201805

17769SUPPORT, AIR CLEANER

main17769-26010i1ADFTV,2AD#..ALA4#201212-201510

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0V020i2ARFE..ASA44201510-201909

(L)

main17801-21050i3ZRFAE..ZSA44201212-201510

main17801-26010i1ADFTV,2AD#..ALA4#..DCRE,DCRL201212-201510

main17801-31170i2ADFTV..ALA49..DCR201212-201510

main17801-37021i2ARFXE..AVA42..RUS201510-201704

main17801-38011i2ARFE..ASA44201510-201909

(J)

main17801-YV020i2WW..WWA42201510-201805

17880HOSE ASSY, AIR CLEANER

main17880-26040i2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X201510-201810

main17880-36090i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

main17880-37110i3ZRFE..ZSA4#..RUP;3ZRFAE..ZSA44..RHD..X;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X)201510

main17880-YV010i2WW..WWA42201510-201805

17940DINTERCOOLER ASSY

main17940-26022i2AD#..ALA49..RUP;2ADFTV..ALA49..G,M201510

main17940-53010i2WW..WWA42201510-201805

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i3ZRFAE..ZSA44201212-201510

MARK 22204-0T040

main22204-0V010i3ZR#..ZSA4#201510

MARK 22204-0V010

main22204-0V020i3ZRFAE..ZSA44201212-201510

MARK 22204-0V020

main22204-26010i2AD#..ALA49201510-201909

main22204-28010i3ZR#..ZSA4#201510

MARK 22204-28010

main22204-YV010i2WW..WWA42201510-201805

2606VENTURI

→ Go to FIG 26-06

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9009900289

main90099-00289

9011906859

main90119-06859

9011906942

main90119-06942

9011906953

main90119-06953

9017906274

main90179-06274

9017906292

main90179-06292

9046662002

main90466-62002

9046724038

main90467-24038

91631J0612

main91631-J0612

9167180822

main91671-80822

9167180825

main91671-80825

91671A0622

main91671-A0622

91673A0830

main91673-A0830

9611110850

main96111-10850

39 parts on this diagram · 7 diagrams in section
