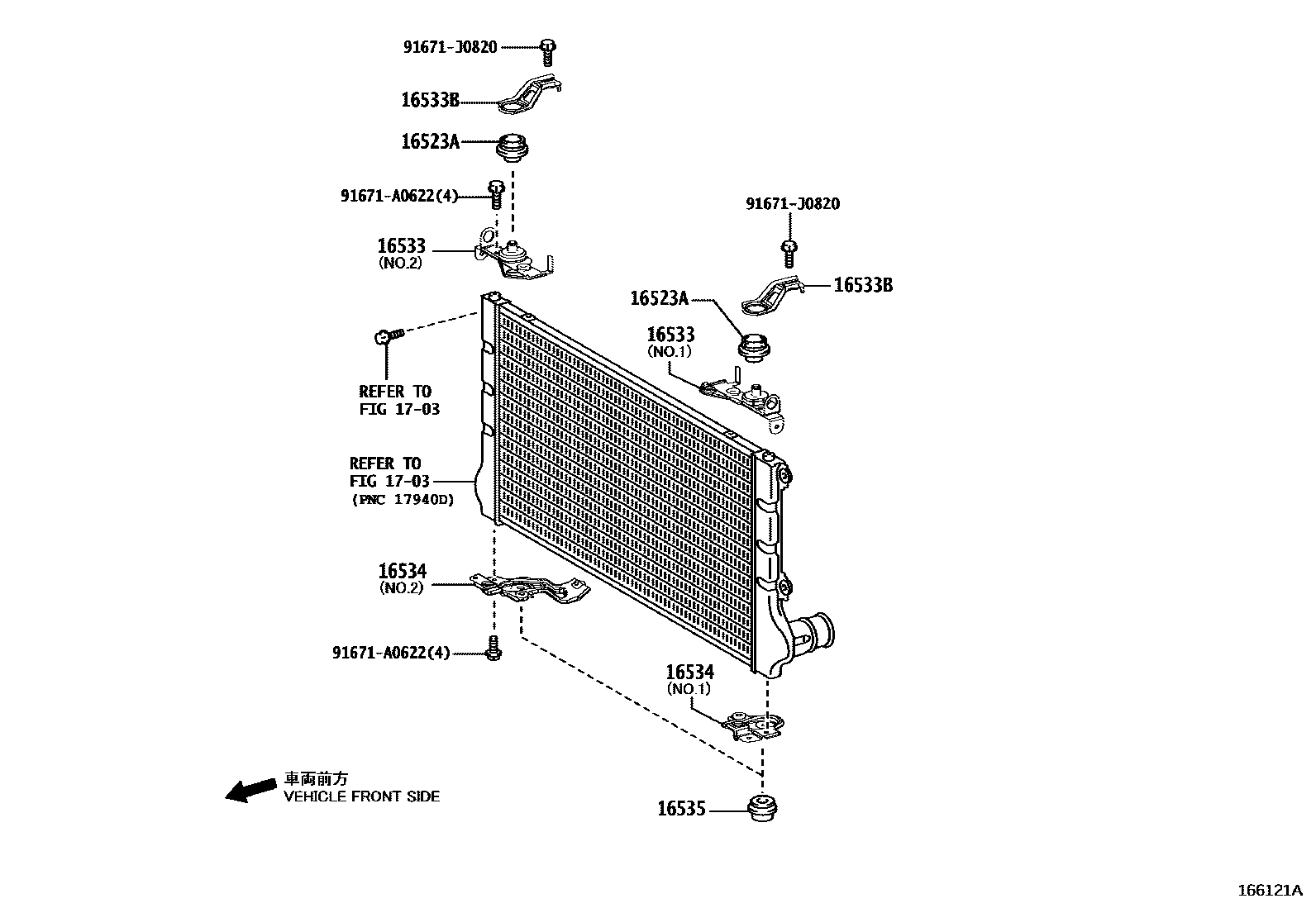

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1ENGINE SIDE 0005 1ENGINE SIDE 0006 1RADIATOR SIDE 0007 1ENGINE SIDE 0008 1RADIATOR SIDE 0009 1ENGINE SIDE W/O(EGR) 0010 1ENGINE SIDE W(EGR) 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1

16523ACUSHION, RADIATOR SUPPORT

main16523-28030×2i2ARFE..ASA44..RUP..X; 3ZRFE..ZSA42..RUP..6F..M;3ZRFE..ZSA44..RUP..6F..X201510-201708

16533SUPPORT, RADIATOR, UPPER

main16533-26070×2i2ARFXE..AVA4#; 3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)201510-201810

main16534-26050i1ADFTV,2AD#..ALA4#201212-201510

NO.1:REFER ILLUST.

main16534-26060i2AD#..ALA49..RUP;2ADFTV..ALA49..G,M201510

NO.2:REFER ILLUST.

16533BSUPPORT, RADIATOR, NO.1

main16533-26070×2i2WW..WWA42201510-201805

16534SUPPORT, RADIATOR, NO.2

main16534-26070i2WW..WWA42201510-201805

NO.1:REFER ILLUST.

main16534-26080i1ADFTV,2AD#..ALA4#201212-201510

NO.2:REFER ILLUST.

main16534-53010i2WW..WWA42201510-201805

NO.2:REFER ILLUST.

16535SUPPORT, RADIATOR, LOWER

main16535-20030×2i3ZRFAE..ZSA44201212-201510

main16535-28060×2i2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;2AR#..ASA44,AVA44..JPP..(G,M)201510-201810

main16535-74230×2i2WW..WWA42201510-201805

1703AIR CLEANER

→ Go to FIG 17-03

91671A0622

main91671-A0622

91671J0820

main91671-J0820

8 parts on this diagram · 23 diagrams in section
