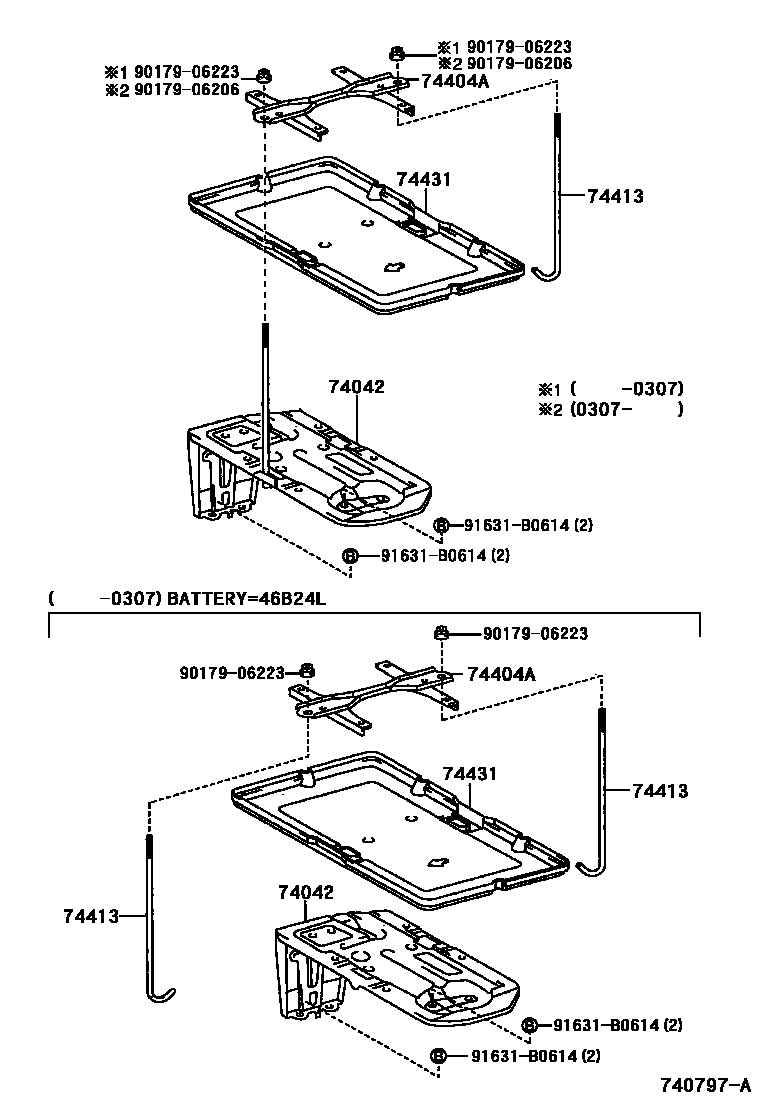

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74401-42010iACA2#..USA200008-200307

BATTERY=46B24L

main74401-42020iACA2#200008-200307

BATTERY=65D23L

main74401-42020iACA2#200307

74404ACLAMP SUB-ASSY, BATTERY

main74404-42020iACA2#..USA200008-200307

BATTERY=46B24L

main74404-42030iACA2#200008-200307

BATTERY=65D23L

main74404-42030iACA2#200307

74413BOLT, BATTERY CLAMP

main74451-10060iACA2#200008-200307

BATTERY=65D23L

main74451-10060iACA2#200008-200307

BATTERY=46B24L

main74451-10060iACA2#200307

74431TRAY, BATTERY

main74431-42060iACA2#200008-200307

9017906206

main90179-06206

9017906223

main90179-06223

91631B0614

main91631-B0614

7 parts on this diagram · 1 diagram in section
