REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK MATERIAL
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
69241EPAD, REAR DOOR OUTSIDE HANDLE, RH
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
LH
RH
69330LOCK ASSY, REAR DOOR, RH
W(POWER DOOR LOCK)
69331BROD, REAR DOOR LOCK OPEN, RH
69332ROD, REAR DOOR LOCK OPEN, LH
69340LOCK ASSY, REAR DOOR, LH
W(POWER DOOR LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9153160608
main91531-60608

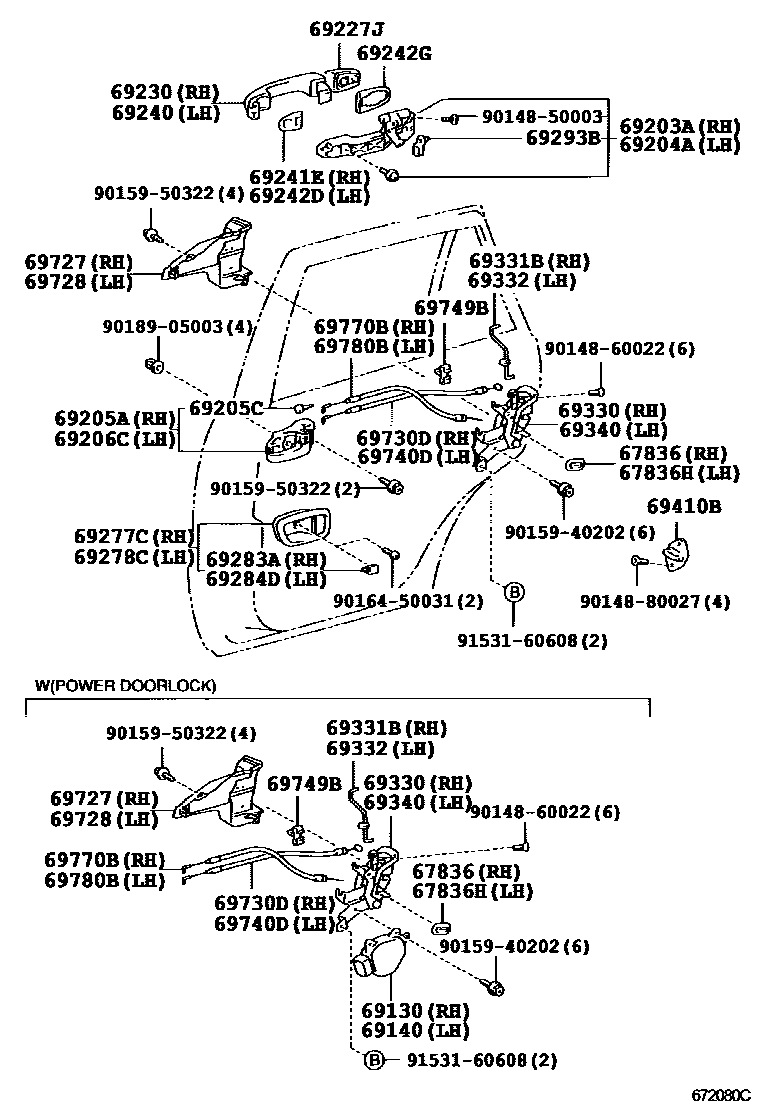

40 parts on this diagram · 1 diagram in section
