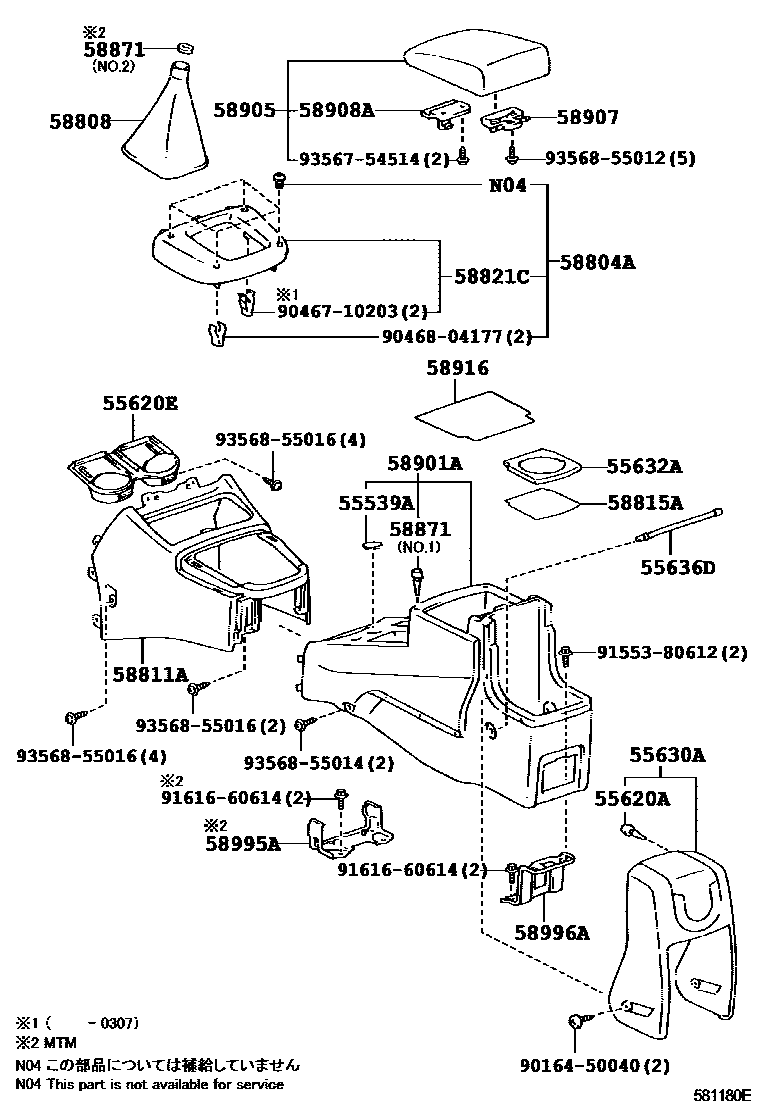

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
55620ACUSHION(FOR CUP HOLDER)
55620EHOLDER ASSY, INSTRUMENT PANEL CUP
55630AHOLDER, REAR CONSOLE BOX, CUP
55632ASUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2
55636DSHAFT, INSTRUMENT PANEL CUP HOLDER, NO.1
58808COVER SUB-ASSY, SHIFTING HOLE
58811ABOX, CONSOLE, FRONT
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
58815ACARPET, CONSOLE BOX
58871CUSHION, CONSOLE BOX
NO.2
NO.1
58901ABOX SUB-ASSY, CONSOLE, REAR
DK.GRAY,TRIM1#
FAWN,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9016450040
main90164-50040
9046710203
main90467-10203
9046804177
main90468-04177
9155380612
main91553-80612
9161660614
main91616-60614
9356754514
main93567-54514
9356855012
main93568-55012
9356855014
main93568-55014
9356855016
main93568-55016
28 parts on this diagram · 1 diagram in section
