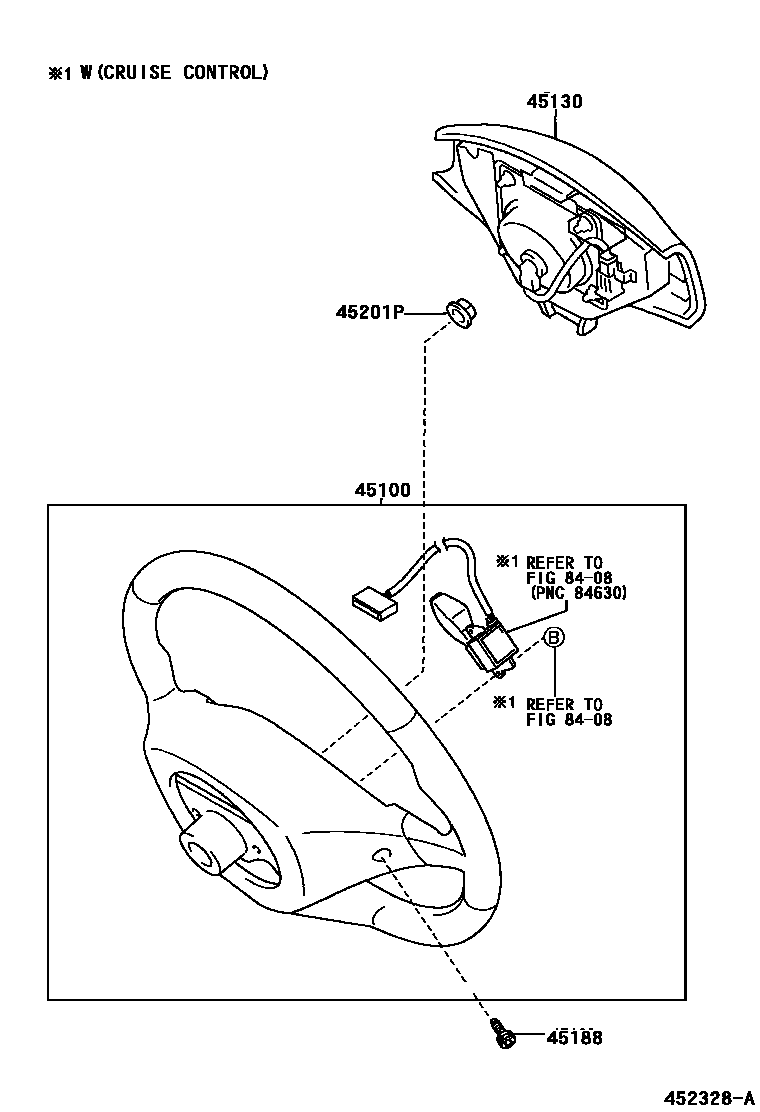

STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE 0003 13-SPOKE,W(AUDIO SWITCH)

45100WHEEL ASSY, STEERING

main45100-42080-C0iACA2#200008-200307

3-SPOKE,URETHANE,BLACK,TRIM1#,4#

main45100-42090-C0iACA2#200008-200307

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#

main45100-42100-C0iACA2#200008-200307

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

main45100-42110-C0iACA2#200008-200307

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM1#,4#

main45100-42200-C0iACA2#200307-200511

3-SPOKE,URETHANE,BLACK,TRIM1#,4#

main45100-42210-C0iACA2#200307-200511

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

main45100-42220-C0iACA2#200307-200511

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#

main45100-42230-C0iACA2#200307-200511

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM1#,4#

45130BUTTON ASSY, HORN

main45130-42080-C0iACA2#200008-200307

BLACK,TRIM1#,4#

main45130-42120-C0iACA2#200307-200511

BLACK,TRIM1#,4#

main45130-42140-C0iACA2#200307-200511

W(AUDIO SWITCH),BLACK,TRIM1#,4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iACA2#200307-200511

L=18

main90148-60007×2iACA2#200008-200307

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iACA2#200008-200307

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

5 parts on this diagram · 3 diagrams in section
