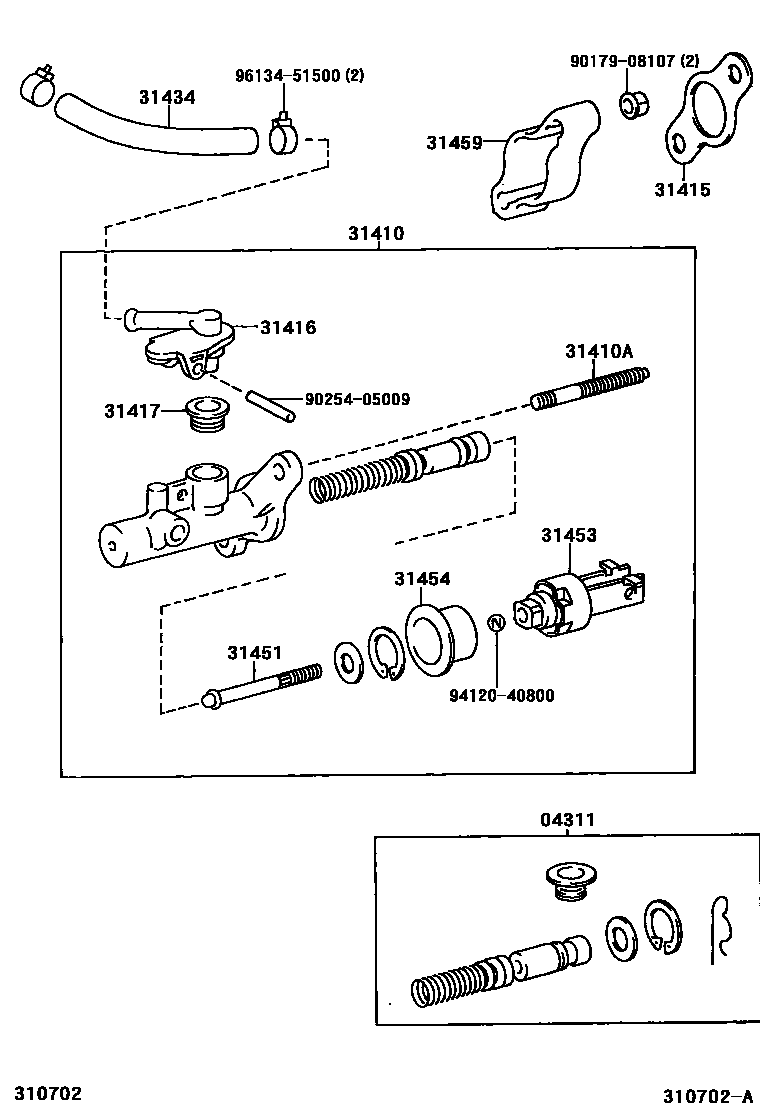

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iACA2#..MTM200008-200307

31410CYLINDER ASSY, CLUTCH MASTER

main31420-42020iACA2#..MTM200008-200307

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08357×2iACA2#..MTM200008-200307

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iACA2#..MTM200008-200307

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-42020iACA2#..MTM200008-200307

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iACA2#..MTM200008-200307

31434TUBE, CLUTCH RESERVOIR

main31434-42030iACA2#..MTM200008-200307

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-42010iACA2#..MTM200008-200307

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iACA2#..MTM200008-200307

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iACA2#..MTM200008-200307

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42020iACA2#..MTM200008-200307

main31459-42021iACA2#..MTM200308

9017908107

main90179-08107

9025405009

main90254-05009

9412040800

main94120-40800

9613451500

main96134-51500

15 parts on this diagram · 2 diagrams in section
