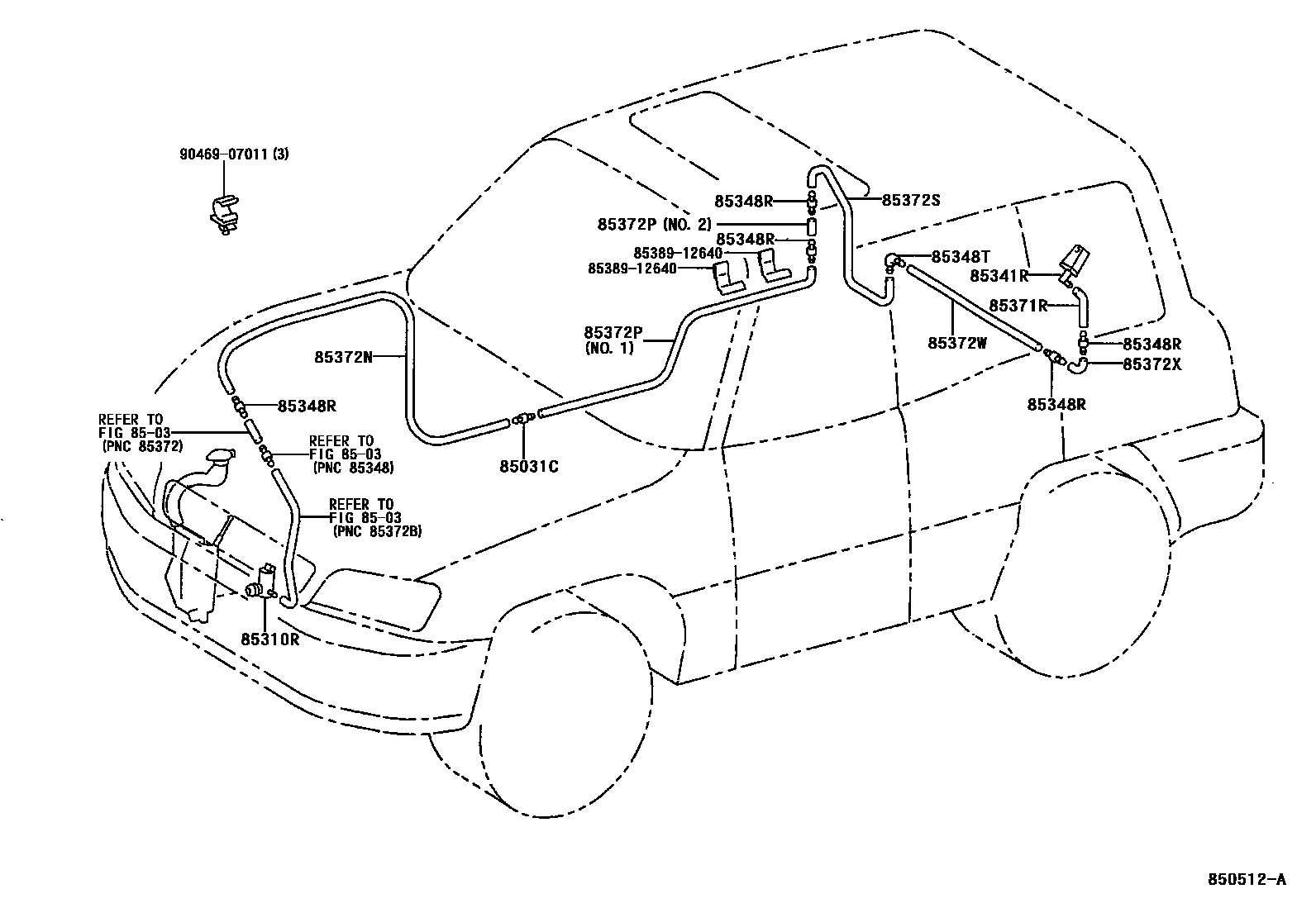

REAR WASHER

8503WINDSHIELD WASHER

85031CVALVE SUB-ASSY, WASHER

85310RMOTOR ASSY, REAR WASHER

main85310-20190i199511-199608

COLD SPEC

main85310-20210i199511-199608

main85330-10280i199608-200008

main85330-33020i199608-200008

COLD SPEC

85341RNOZZLE ASSY, WASHER

85348RJOINT, REAR WASHER HOSE, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122i199511-199608

NO.1

main85355-20200i199511-199608

NO.2

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

L=1800(*H,L=280)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

L=1800(*H,L=1770)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

L=1000(*H,L=40),NO.2

main90446-07001i199511-199608

L=1220; L=1800(*H,L=1640),NO.1

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

L=1800(*H,L=790)

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

L=1800(*H,L=630)

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

8538912640PACKING, WINDSHIELD WASHER HOSE, NO.1

9046907011

14 parts on this diagram · 2 diagrams in section
