WIRING & CLAMP

0001 1CABLE BOND 0002 1ENGINE WIRE 0003 1ENGINE ROOM WIRE 0004 1INSTRUMENT PANEL WIRE 0005 1DOOR,ROOF WIRE 0006 1FLOOR,BACK DOOR WIRE 0007 1CLAMP & BRACKET 0008 1CLAMP & BRACKET

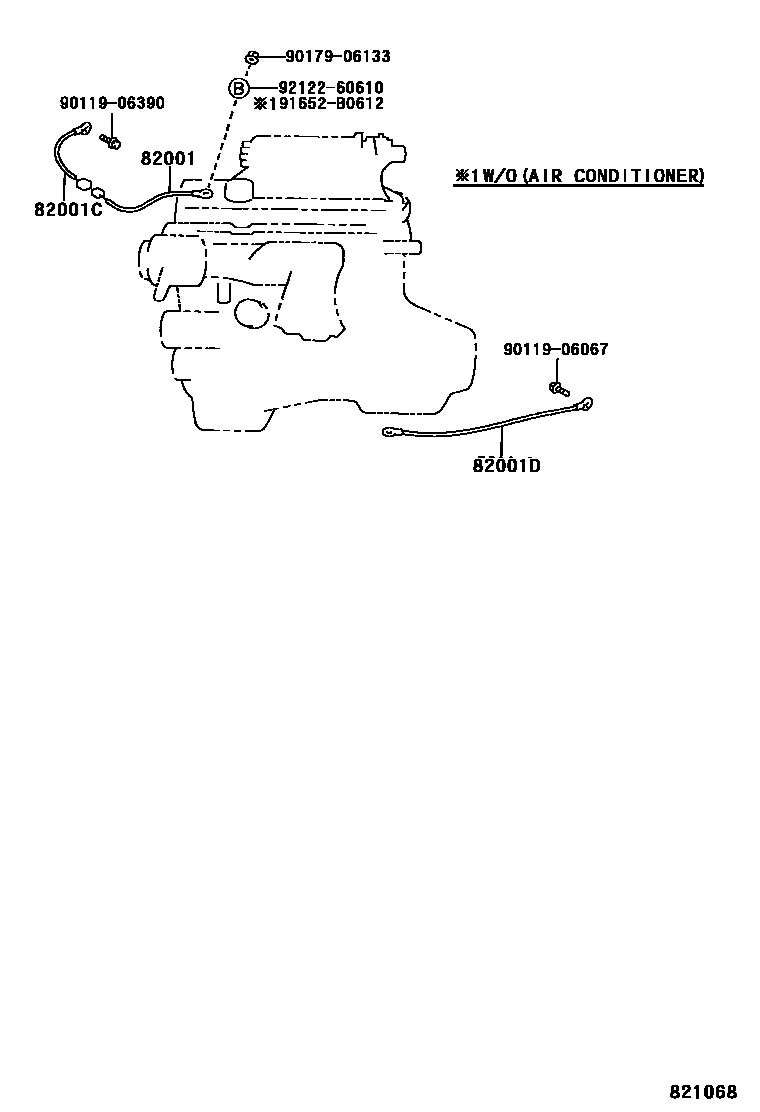

82001CABLE, BOND, NO.1

main90980-07280iSXA1#199511

82001CCABLE, BOND, NO.2

main90980-07325iSXA1#199608-199808

main90980-07342iSXA1#199511-199608

main90980-07406iSXA1#199808

82001DCABLE, BOND, NO.3

main90980-07318iSXA1#199511-199608

main90980-07341iSXA1#199608-199808

main90980-07381iSXA1#199808

9011906067

main90119-06067

9011906390

main90119-06390

9017906133

main90179-06133

91652B0612

main91652-B0612

9212260610

main92122-60610

8 parts on this diagram · 8 diagrams in section
