REAR DOOR PANEL & GLASS

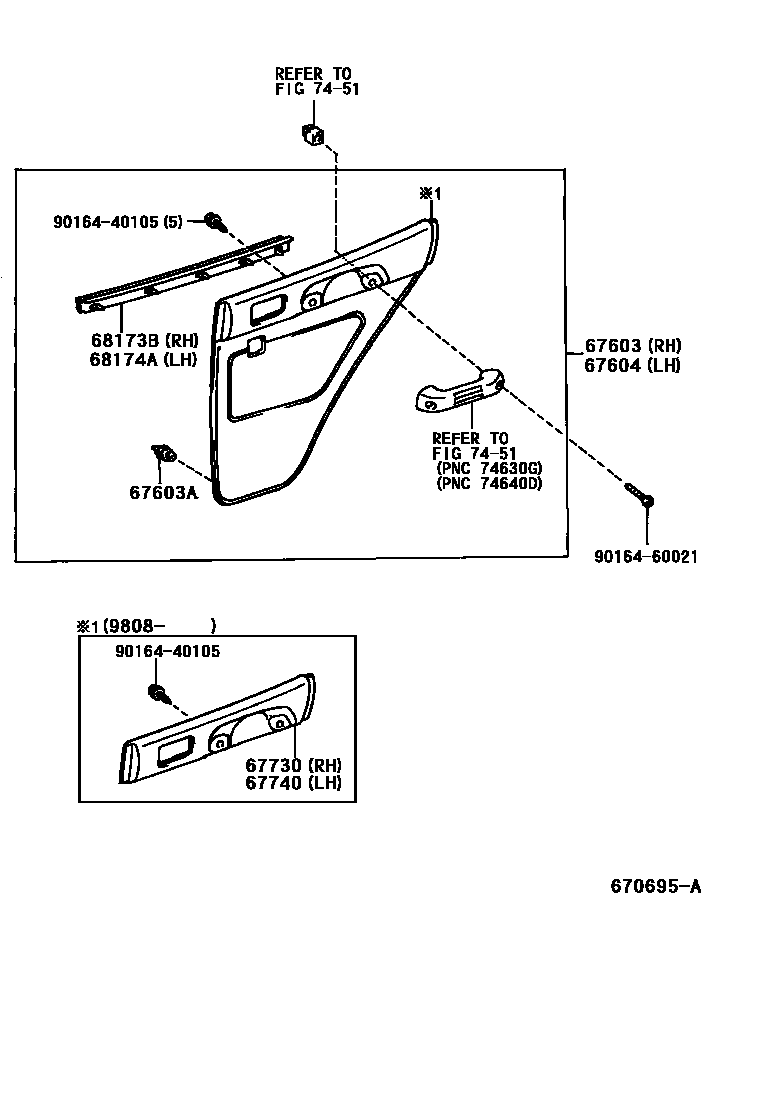

Parts diagram

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-42010-B0i199511-199608

BLUISH GRAY,TRIM11

main67630-42011-B2i199608-199709

BLUISH GRAY,TRIM15

main67630-42011-B3i199612-199709

BLUISH GRAY,TRIM16

main67630-42020-B0i199511-199608

W(POWER WINDOW),BLUISH GRAY,TRIM11

main67630-42021-B2i199608-199709

W(POWER WINDOW),BLUISH GRAY,TRIM15

main67630-42021-B5i199612-199709

W(POWER WINDOW),BLUISH GRAY,TRIM16

main67630-42090-B0i199709

SHADOW GRAY,TRIM1#

main67630-42100-B0i199709

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-42190-B0i199808

W(LEATHER SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-16080×6i199604-199607

PUERTORICO SPEC

main67771-20110×8i199511-199709

GREEN

main67771-33020×2i199709

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-42010-B0i199511-199608

BLUISH GRAY,TRIM11

main67640-42011-B2i199608-199709

BLUISH GRAY,TRIM15

main67640-42011-B3i199612-199709

BLUISH GRAY,TRIM16

main67640-42020-B0i199511-199608

W(POWER WINDOW),BLUISH GRAY,TRIM11

main67640-42021-B2i199608-199709

W(POWER WINDOW),BLUISH GRAY,TRIM15

main67640-42021-B5i199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main67640-42090-B0i199709

SHADOW GRAY,TRIM1#

main67640-42100-B0i199709

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-42190-B0i199808

W(LEATHER SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

67730PANEL ASSY, REAR DOOR TRIM, UPPER RH

main67730-42070-B0i199808

SHADOW GRAY,TRIM1#

67740PANEL ASSY, REAR DOOR TRIM, UPPER LH

main67740-42070-B0i199808

SHADOW GRAY,TRIM1#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-42010i199511

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68173-42010i199511

7451ARMREST & VISOR

→ Go to FIG 74-51

9016440105

main90164-40105

9016460021

main90164-60021

10 parts on this diagram · 2 diagrams in section
