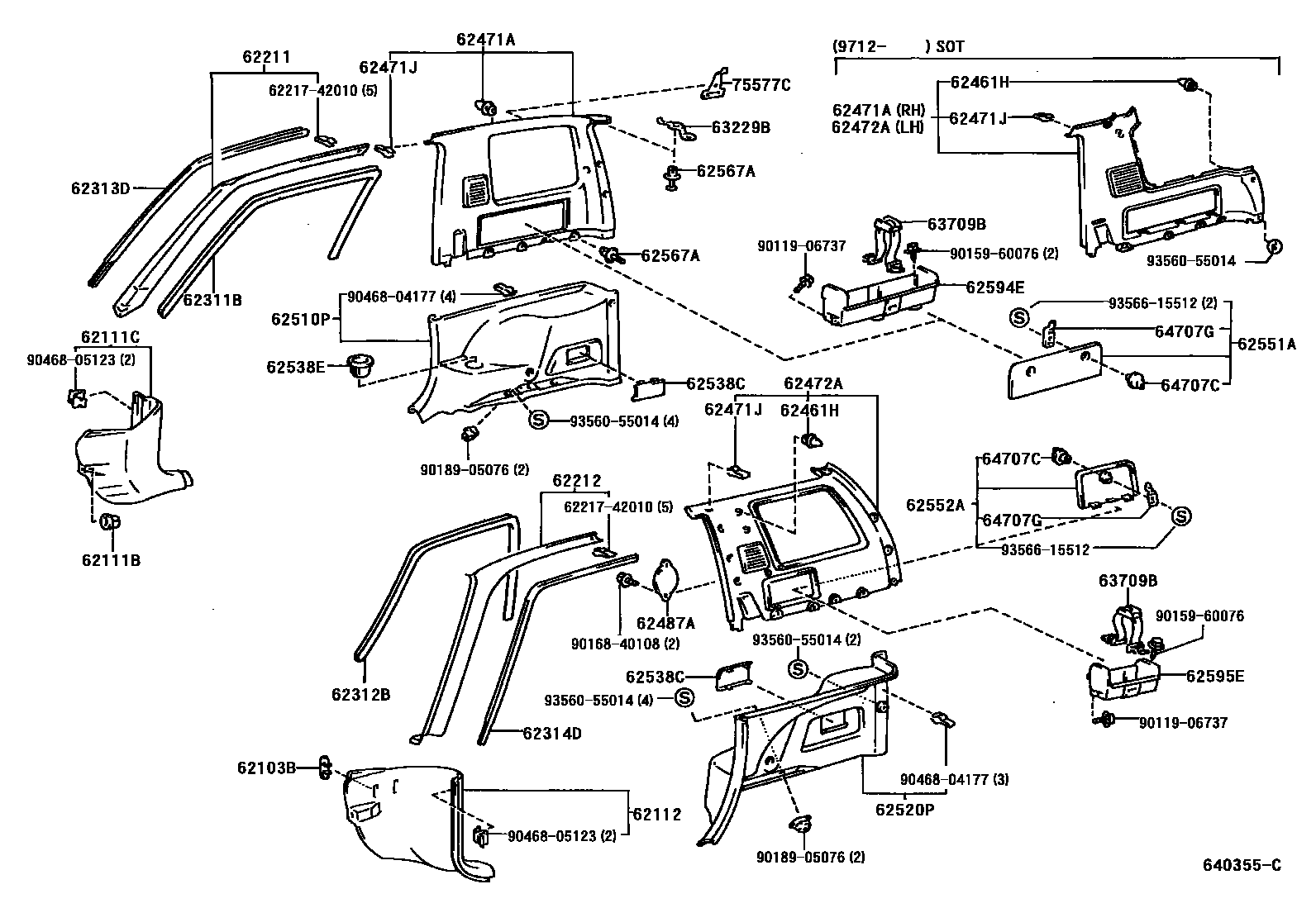

INSIDE TRIM BOARD

0001 1 0002 1

62103BPLUG(FOR COWL SIDE TRIM BOARD)

main90950-01267-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub90950-01267

main90950-01267-B1iSXA1#199709

SHADOW GRAY,TRIM1#

sub90950-01267

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147iSXA1#199511

62111CBOARD, COWL SIDE TRIM, RH

main62111-42010-B0iSXA1#199511-199705

BLUISH GRAY,TRIM1#

sub62111-42011

main62111-42011-B0iSXA1#199705-199709

BLUISH GRAY,TRIM1#

sub62111-42011

main62111-42011-B1iSXA1#199709-200008

SHADOW GRAY,TRIM1#

sub62111-42011

62112BOARD, COWL SIDE TRIM, LH

main62112-42010-B0iSXA1#199511-199705

BLUISH GRAY,TRIM1#

sub62112-42011

main62112-42011-B0iSXA1#199705-199709

BLUISH GRAY,TRIM1#

sub62112-42011

main62112-42011-B1iSXA1#199709-200008

SHADOW GRAY,TRIM1#

sub62112-42011

62211GARNISH, FRONT PILLAR, RH

main62211-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main62211-42010-B1iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

main62211-42020-B0iSXA11,16199511-199709

BLUISH GRAY,TRIM1#

main62211-42020-B1iSXA11,16199709-200008

SHADOW GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main62212-42010-B1iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

main62212-42020-B0iSXA11,16199511-199709

BLUISH GRAY,TRIM1#

main62212-42020-B1iSXA11,16199709-200008

SHADOW GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-42010-B1iSXA11,16199704-199709

BLUISH GRAY,TRIM1#

main62311-42011-B0iSXA11,16199709-200008

SHADOW GRAY,TRIM1#

main62311-42020-B1iSXA10,15199707-199709

BLUISH GRAY,TRIM1#

main62311-42021-B0iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-42010-B1iSXA11,16199704-199709

BLUISH GRAY,TRIM1#

main62312-42011-B0iSXA11,16199709-200008

SHADOW GRAY,TRIM1#

main62312-42020-B1iSXA10199707-199709

BLUISH GRAY,TRIM1#

main62312-42021-B0iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-42010-B0iSXA10,15199511-199707

BLUISH GRAY,TRIM1#

main62313-42020-B0iSXA11,16199511-199704

BLUISH GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-42010-B0iSXA10,15199511-199707

BLUISH GRAY,TRIM1#

main62314-42010-B0iSXA11,16199511-199704

BLUISH GRAY,TRIM1#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-08179iSXA11,16199709

main90467-09158iSXA11,16199511-199709

62471AGARNISH, ROOF SIDE, INNER RH

main62470-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main62470-42010-B1iSXA10,15..HT199709-200008

SHADOW GRAY,TRIM1#

main62470-42020-B0iSXA11,16199511-199709

BLUISH GRAY,TRIM1#

main62470-42030-B0iSXA10,15..SOT199712-200008

SHADOW GRAY,TRIM1#

main62470-42040-B0iSXA11,16199709-200008

SHADOW GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main62217-42010iSXA11,16199805

main90468-05077iSXA1#199511-199805

62472AGARNISH, ROOF SIDE, INNER LH

main62480-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main62480-42010-B1iSXA10,15..HT199709-200008

SHADOW GRAY,TRIM1#

main62480-42020-B0iSXA11,16199511-199709

BLUISH GRAY,TRIM1#

main62480-42030-B0iSXA10,15..SOT199712-200008

SHADOW GRAY,TRIM1#

main62480-42040-B0iSXA11,16199709-200008

SHADOW GRAY,TRIM1#

62487ACOVER, ROOF SIDE INNER GARNISH, RH

main62487-42010iSXA16..ATM199604-199607

PUERTORICO SPEC

main62487-42010iSXA1#199511-199608

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main62510-42010-B1iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main62520-42010-B1iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

62538CCOVER, QUARTER TRIM, HOLE

main62538-42010-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub62538-42010

main62538-42010-B1iSXA1#199709-200008

SHADOW GRAY,TRIM1#

sub62538-42010

62538ECOVER, QUARTER TRIM, HOLE

main55548-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

sub55548-42010

main55548-42010-B2iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

sub55548-42010

62551ACOVER, REAR SEAT SIDE, RH

main62551-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

sub62551-42010

main62551-42010-B1iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

sub62551-42010

62552ACOVER, REAR SEAT SIDE, LH

main62552-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

sub62552-42010

main62552-42010-B1iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

sub62552-42010

62567ACLIP(FOR QUARTER TRIM REAR LOWER COVER)

main90467-07076-B0iSXA11,16199511-199709

GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA11,16199608-199808

BLACK,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA11,16199608-199709

BLACK,TRIM14

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-P0iSXA10,15..SOT199709-199808

SHADOW GRAY,TRIM11

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-P0iSXA11,16199709

SHADOW GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

62594EPOCKET, QUARTER TRIM, RH

main62594-42010iSXA10,15..HT199511

main62594-42020iSXA10,15..SOT199712

62595EPOCKET, QUARTER TRIM, LH

main62595-42010iSXA10,15199511-199709

main62595-42020iSXA10,15199709

63229BBRACKET, ROOF HEADLINING, REAR

main63229-42010iSXA1#..HT199511

63709BBAND SUB-ASSY, ROOM RACK

main63709-42011iSXA10,15199511

main63709-42020iSXA11,16199511

64707CKNOB, JACK COVER

main64769-90K00-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

sub64769-90K00

main64769-90K00-B2iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

sub64769-90K00

64707GSTOPPER, JACK COVER

main64768-60010iSXA10,15199511

75577CBRACKET, ROOF SIDE GARNISH

main75577-42010iSXA1#..HT199511

6221742010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-42010

9011906737

main90119-06737

9015960076

main90159-60076

9016840108

main90168-40108

9018905076

main90189-05076

9046804177

main90468-04177

9046805123

main90468-05123

9356055014

main93560-55014

9356615512

main93566-15512

38 parts on this diagram · 2 diagrams in section
