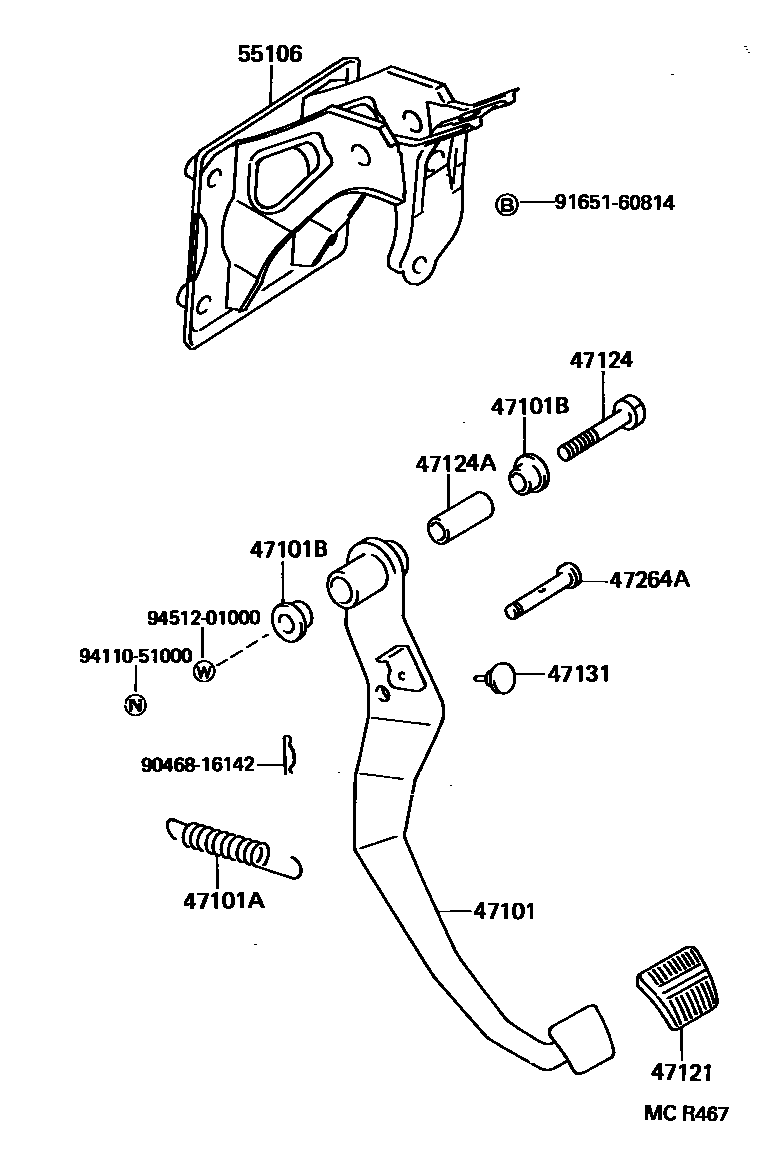

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-42031iSXA1#..MTM199511-199808

main47101-42032iSXA1#..MTM199808

main47101-42041iSXA1#..ATM199511-199808

main47101-42042iSXA1#..ATM199808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14034iSXA1#199511

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iSXA1#199511

47121PAD, BRAKE PEDAL

main31321-14020iSXA1#..MTM199511

main47121-14010iSXA1#..ATM199511

47124SHAFT, BRAKE PEDAL

main90101-10015iSXA1#199511

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iSXA1#199511

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iSXA1#199511

47264APIN(FOR PUSH ROD)

main90249-10064iSXA1#199511

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-42020iSXA1#199511-199709

main55106-42060iSXA1#199709-199808

main55106-42070iSXA1#199808

9046816142

main90468-16142

9165160814

main91651-60814

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
