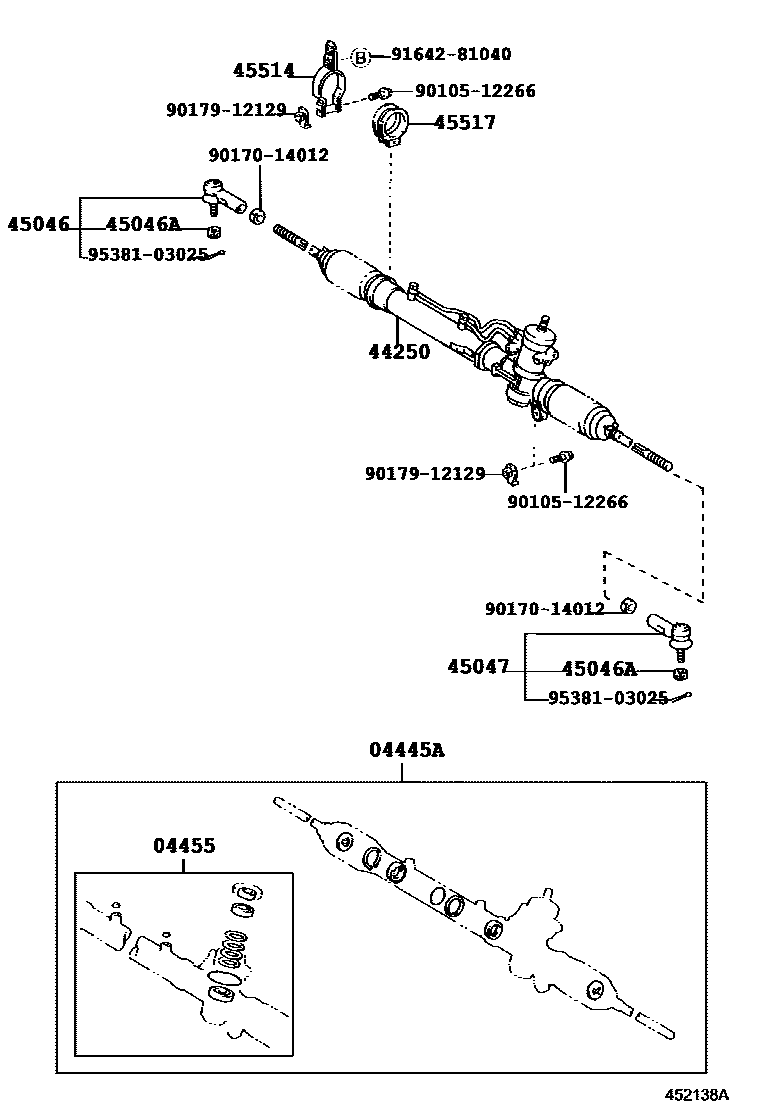

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-42020iSXA1#199511-200003

main04445-42040iSXA1#200003-200008

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iSXA1#199511-200003

main04455-42020iSXA1#200003-200008

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-42020iSXA10,15199511-199608

main44250-42021iSXA10,15199608-199709

main44250-42022iSXA10,15199709-200003

main44250-42040iSXA11,16199511-199608

main44250-42041iSXA11,16199608-199709

main44250-42042iSXA11,16199709-200003

main44250-42080iSXA10,15200003-200008

main44250-42100iSXA11,16200003-200008

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iSXA1#199511-200008

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iSXA1#199511

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iSXA1#199511-200008

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-42010iSXA1#199511-200008

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-42010iSXA1#199511-200008

9010512266

main90105-12266

9017014012

main90170-14012

9017912129

main90179-12129

9164281040

main91642-81040

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section
