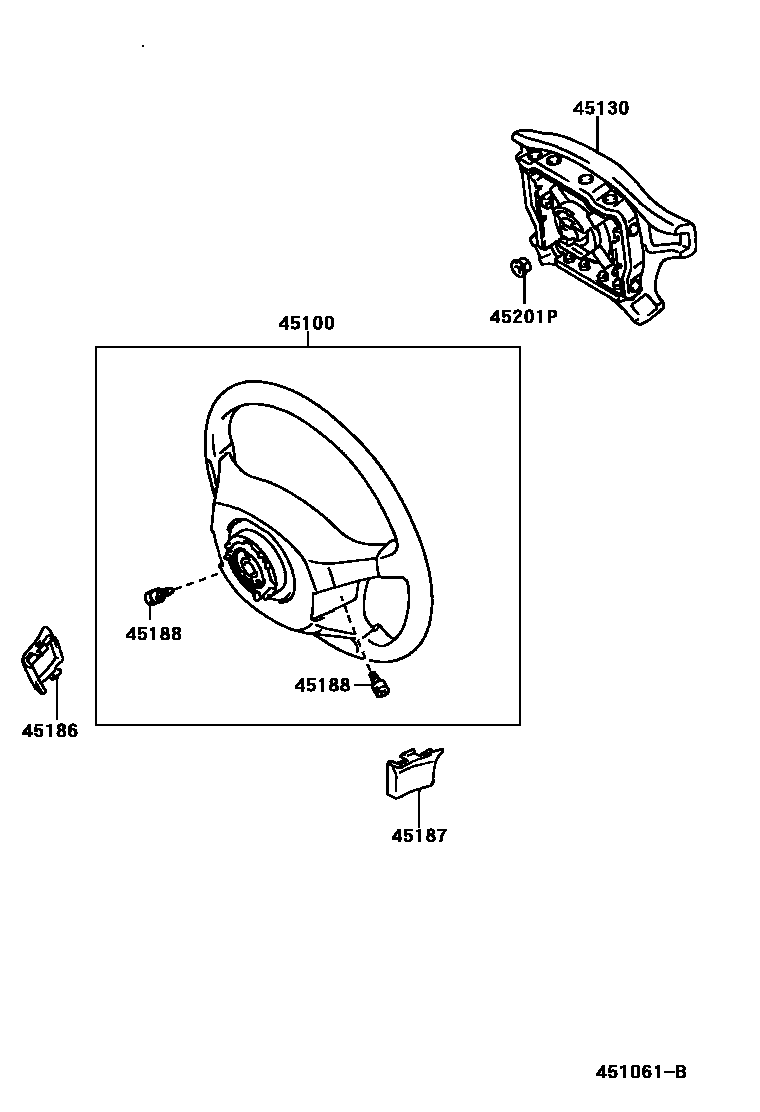

STEERING WHEEL

0001 14-SPOKE, W(*80) 0002 13-SPOKE, W(*80 & CRUISE CONTR0003 13-SPOKE,W(*80)

45100WHEEL ASSY, STEERING

main45100-2B460-C0iSXA1#199511-199709

4-SPOKE,URETHANE,W(*80),BLACK,TRIM1#

main45100-2B470-C0iSXA1#199511-199709

4-SPOKE,URETHANE,W(*80 & CRUISE CONTROL),BLACK,TRIM1#

main45100-42040-C0iSXA1#199709

3-SPOKE,W(*80),BLACK,TRIM1#

main45100-42050-C0iSXA1#199709

3-SPOKE,W(*80 & CRUISE CONTROL),BLACK,TRIM1#

45130BUTTON ASSY, HORN

main45130-14360-C0iSXA1#199709

BLACK,TRIM1#

sub45130-14360

main45130-2B241-C0iSXA1#199511-199604

BLACK,TRIM1#

main45130-42030-C0iSXA1#199604-199709

BLACK,TRIM1#

sub45130-42030

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-20050-C0iSXA1#199511-199709

BLACK,TRIM1#

sub45186-20050

main45186-20060-C0iSXA1#199511-199709

W(CRUISE CONTROL),BLACK,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-20050-C0iSXA1#199511-199709

BLACK,TRIM1#

sub45187-20050

sub45187-20040

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007iSXA1#199511-199709

L=18

main90148-60036iSXA1#199709-199903

L=18.0

sub90148-60007

45201PNUT, STEERING WHEEL SET

main90179-12071iSXA1#199511

6 parts on this diagram · 3 diagrams in section
