NAVIGATION & FRONT MONITOR DISPLAY

0001 1AUDIO LESS 0002 1W(AUDIO),UPPER PANEL TYPE 0003 1W(AUDIO),FILL IN PANEL TYPE 0004 1W(AUDIO),UPPER PANEL TYPE 0005 1W(AUDIO),UPPER PANEL TYPE 0006 1W(AUDIO),FILL IN PANEL TYPE 0007 1W(AUDIO),UPPER PANEL TYPE 0008 1W(AUDIO),UPPER PANEL TYPE

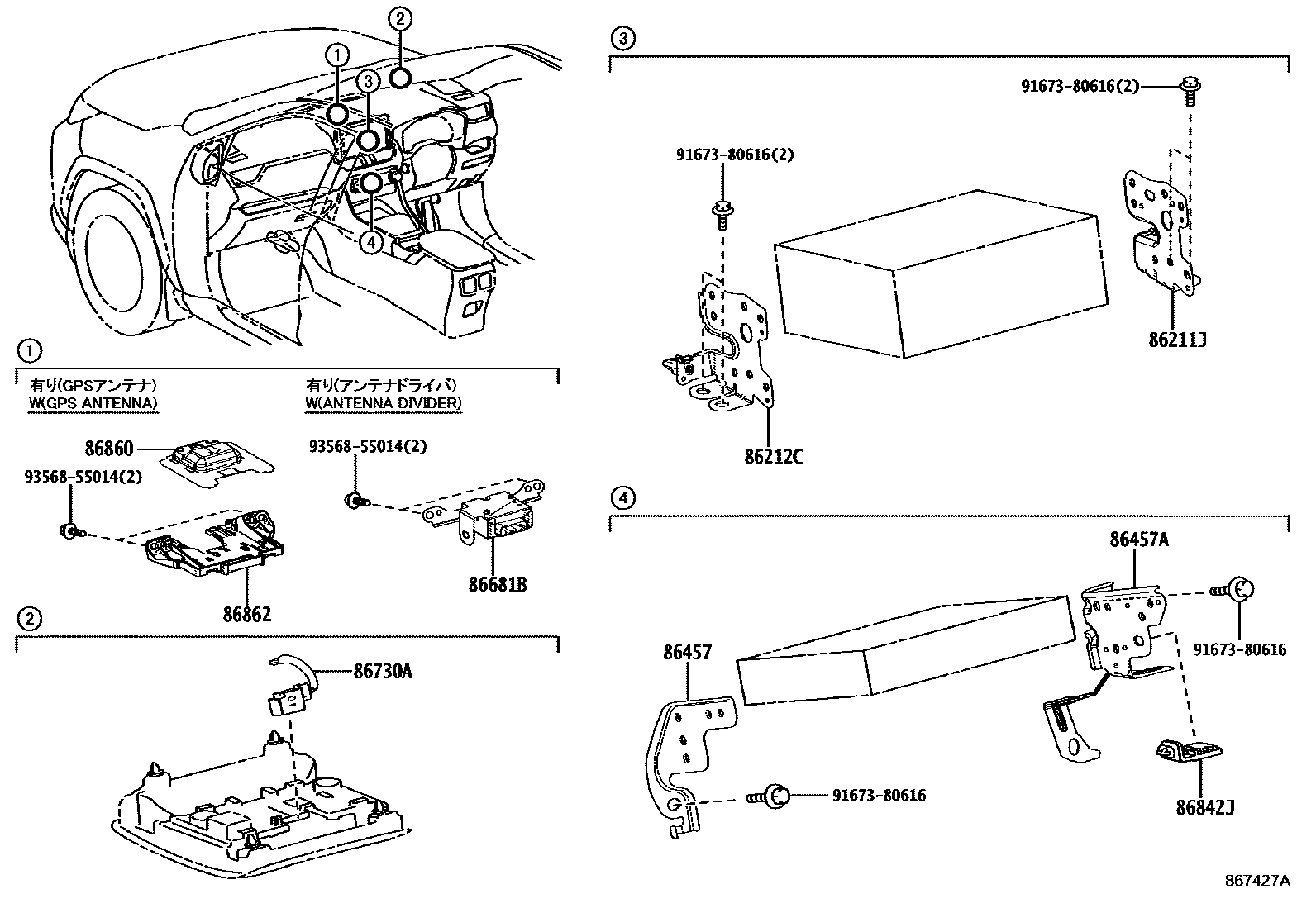

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-42110iAXAH54..LHD..(G,M,X)..EUR202210-202411

AUDIO-6SPEAKER 8INCH, LATIN AMERICA

main86211-42110iAXAH54..LHD..(G,M,X)..EUR202210-202310

AUDIO-6SPEAKER 8INCH DAB, (MID-EAST)

main86211-42110iAXAA54..LHD..V;MXAA52..M..ARL;AXAA5#..JPP..(G,M,X);MXAA54..CVT..(GCC,GEN,SA);AXAH5#..(M,P,X)..(ARL,GCC);AXAH54..(G,V)..(GCC,GEN,SA);MXAA52..CVT..X..(ARL,GCC,GEN);AX202210-202310

OCEANIA OTHERS SPEC

main86211-42110iAXAH54..RUS;MXAA54..6F..G..GEN201811-202203

main86211-42110iAXAH54..LHD..(G,M,X)..EUR202210-202310

PAPUA NEW GUINEA, SAMOA SPEC

main86211-42110iMXAA52..X..SA;AXAA5#..ARL,GEN;MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA54..CVT..G..(EUR,GEN);AXAH54,AXAL5#,MXAA52..ARL,EUR,GEN;AXAH52,MXAA54.201811-202210

AUDIO-RADIO LESS 4SPEAKER

main86211-42110iMXAA52..X..SA;AXAA5#..ARL,GEN;MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA54..CVT..G..(EUR,GEN);AXAH54,AXAL5#,MXAA52..ARL,EUR,GEN;AXAH52,MXAA54.201811-202210

AUDIO-RADIO LESS 6SPEAKER

main86211-42110iMXAA52..RHD..EUR202008-202210

AUDIO-4SPEAKER CD *BT, GENERAL

main86211-42120iMXAA54..CVT..G..GEN;MXAA54..LHD..(M,V,X)..GEN;AXAA5#,AXAH5#,MXAA52..LHD..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA

main86211-42120iMXAA52..6F..G..SA201811-202210

AUDIO-6SPEAKER 7INCH DVD, GENERAL

main86211-42120iMXAA52..CVT..G..SA;AXAA5#,AXAH54,MXAA54..GCC,SA201811-202210

AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86211-42120iMXAA52..CVT..G..SA;AXAA5#,AXAH54,MXAA54..GCC,SA201811-202210

AUDIO-6SPEAKER 7INCH DVD, ASIA

main86211-42120iMXAA52..CVT..G..SA;AXAA5#,AXAH54,MXAA54..GCC,SA201811-202210

AUDIO-RADIO LESS 4SPEAKER

main86211-42120iMXAA52..CVT..G..SA;AXAA5#,AXAH54,MXAA54..GCC,SA201811-202210

AUDIO-RADIO LESS 6SPEAKER

main86211-42130iAXAH52..P..GEN;MXAA5#..6F..GEN202210

main86211-42130iAXAH54..P..GEN202112-202210

AUDIO-RADIO LESS 4SPEAKER

main86211-42130iAXAH54..P..GEN202112-202310

AUDIO-6SPEAKER(AUDIO LESS)

main86211-42130iAXAH54..P..GEN202112-202210

AUDIO-RADIO LESS 6SPEAKER

main86211-42170iAXAL5#;MXAA52..G..ARL;MXAA54..JPP..RUS;AXAH5#..(M,P,X)..EUR;AXAA54,AXAH5#..(G,V)..(ARL,EUR)202210-202310

AUDIO-6SPEAKER 10.5INCH, EUROPE

main86211-42170iAXAA54,AXAH5#,MXAA52..(M,P,X)..ARL202210-202310

AUDIO-6SPEAKER 10.5INCH DAB, (AUSTRALIA)

main86211-42170iMXAA5#..LHD..EUR202210-202410

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-42110iAXAA54..LHD..V;MXAA52..M..ARL;AXAA5#..JPP..(G,M,X);MXAA54..CVT..(GCC,GEN,SA);AXAH5#..(M,P,X)..(ARL,GCC);AXAH54..(G,V)..(GCC,GEN,SA);MXAA52..CVT..X..(ARL,GCC,GEN);AX202210-202310

PAPUA NEW GUINEA, SAMOA SPEC

main86212-42110iAXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL202210-202310

OCEANIA OTHERS SPEC

main86212-42110iAXAH54..RUS;MXAA54..6F..G..GEN201811-202203

main86212-42110iMXAA52..X..SA;AXAA5#..ARL,GEN;MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA54..CVT..G..(EUR,GEN);AXAH54,AXAL5#,MXAA52..ARL,EUR,GEN;AXAH52,MXAA54.201811-202210

AUDIO-RADIO LESS 4SPEAKER

main86212-42110iMXAA52..X..SA;AXAA5#..ARL,GEN;MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA54..CVT..G..(EUR,GEN);AXAH54,AXAL5#,MXAA52..ARL,EUR,GEN;AXAH52,MXAA54.201811-202210

AUDIO-RADIO LESS 6SPEAKER

main86212-42110iMXAA52..RHD..EUR202008-202210

AUDIO-4SPEAKER CD *BT, GENERAL

main86212-42110iAXAA54..LHD..V;MXAA52..M..ARL;AXAA54..JPP..(G,M,X);MXAA52..X..(ARL,GCC,GEN);AXAA52,MXAA54..GCC,GEN,SA;AXAH5#..(M,P,X)..(ARL,GCC);AXAH54..(G,V)..(GCC,GEN,SA);AXAH52,202210-202411

AUDIO-6SPEAKER 8INCH, LATIN AMERICA

main86212-42110iAXAA54..LHD..V;MXAA52..M..ARL;AXAA54..JPP..(G,M,X);MXAA52..X..(ARL,GCC,GEN);AXAA52,MXAA54..GCC,GEN,SA;AXAH5#..(M,P,X)..(ARL,GCC);AXAH54..(G,V)..(GCC,GEN,SA);AXAH52,202210-202310

AUDIO-6SPEAKER 8INCH DAB, (MID-EAST)

main86212-42120iAXAA5#,AXAH54,MXAA54..GCC201811-202210

AUDIO-RADIO LESS 4SPEAKER

main86212-42120iMXAA54..CVT..G..GEN;MXAA54..LHD..(M,V,X)..GEN;AXAA5#,AXAH5#,MXAA52..LHD..GEN201811-202210

AUDIO-RADIO LESS 6SPEAKER

main86212-42120iAXAA52..RHD;MXAA52..G..GEN;AXAH54..LHD..GEN;AXAA54..LHD..G..GEN;MXAA52..LHD..CVT..M..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86212-42120iAXAA52..RHD;MXAA52..G..GEN;AXAH54..LHD..GEN;AXAA54..LHD..G..GEN;MXAA52..LHD..CVT..M..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, GENERAL

main86212-42120iAXAA52..RHD;MXAA52..G..GEN;AXAH54..LHD..GEN;AXAA54..LHD..G..GEN;MXAA52..LHD..CVT..M..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA

main86212-42120iAXAA52..RHD;MXAA52..G..GEN;AXAH54..LHD..GEN;AXAA54..LHD..G..GEN;MXAA52..LHD..CVT..M..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, ASIA

main86212-42130iAXAH54..P..GEN202112-202310

AUDIO-6SPEAKER(AUDIO LESS)

main86212-42130iAXAH54..P..GEN202112-202210

AUDIO-RADIO LESS 4SPEAKER

main86212-42130iAXAH52..X..GEN;AXAH54..P..GEN;MXAA52..RHD..EUR202112-202210

AUDIO-RADIO LESS 6SPEAKER

main86212-42130iAXAH52..P..GEN;MXAA5#..6F..GEN202210

main86212-42170iAXAH52..(G,M)..GEN;AXAA54,AXAH54,MXAA5#..LHD..(G,M,V,X)..GEN202210-202310

AUDIO-6SPEAKER 10.5INCH DAB, (AUSTRALIA)

main86212-42170iAXAL5#;MXAA52..G..ARL;MXAA54..JPP..RUS;AXAH5#..(M,P,X)..EUR;AXAA54,AXAH5#..(G,V)..(ARL,EUR)202210-202310

AUDIO-6SPEAKER 10.5INCH, EUROPE

main86212-42170iMXAA5#..LHD..EUR202210-202410

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

MOLDOVA,ARMENIA,GEORGIA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

AUDIO-JBL 8INCH DAB, EUROPE

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

AUDIO-6SPEAKER 8INCH XM

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

UKRAINE,MOLD SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42010iAXAH54..RUS201811-202203

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

AUDIO-4SPEAKER(AUDIO LESS)

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

AUDIO-4SPEAKER CD *BT, GENERAL

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

AUDIO-6SPEAKER 8INCH, EUROPE

main86457-42010iAXAH5#,MXAA5#..LHD..EUR201811-202007

AUDIO-6SPEAKER 8INCH, AUSTRALIA

main86457-42030iMXAA52..RHD..CVT..EUR201811-201910

AUDIO-6SPEAKER 7INCH DVD, ASIA

main86457-42030iMXAA52..RHD..CVT..EUR201811-202007

OTHER WVTA COUNTRY, WITH RSA&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42030iMXAA52..RHD..CVT..EUR201811-202007

AUDIO-4SPEAKER(AUDIO LESS)

main86457-42030iMXAA52..RHD..CVT..EUR201811-201910

AUDIO-4SPEAKER CD *BT, GENERAL

main86457-42030iMXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR201811-202007

OTHER WVTA COUNTRY, WITH RSA&AUDIO-4SPEAKER CD *BT, EUROPE/SOUTH AFRICA

main86457-42050iMXAA54..JPP..RUS;AXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

EXCEPT WVTA COUNTRY

main86457-42050iMXAA54..JPP..RUS;AXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

AZERBAIJAN,GEORGIA SPEC

main86457-42050iMXAA54..JPP..RUS;AXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

UKRAINE,MOLD SPEC

main86457-42050iAXAH54..X..EUR202210-202410

main86457-42050iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

AUDIO-6SPEAKER 8INCH, EUROPE

main86457-42050iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

UKRAINE,MOLDOVA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42050iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

AZERBAIJAN,GEORGIA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42050iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86457-42050iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main86457-42070iAXAA54..V..ARL;AXAH54,MXAA52..ARL202112-202310

OCEANIA OTHERS SPEC

main86457-42070iAXAH5#,AXAL5#..RHD..X..EUR202008-202210

AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main86457-42070iAXAH5#,AXAL5#..RHD..X..EUR202008-202111

AUDIO-JBL 8INCH DAB, AUSTRALIA

main86457-42070iAXAH54..V..ARL;AXAH5#,AXAL5#..RHD..(G,M,P,V)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42070iAXAH54..V..ARL;AXAH5#,AXAL5#..RHD..(G,M,P,V)..EUR202008-202310

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86457-42070iAXAA54..V..ARL;AXAH5#,MXAA52..G..ARL202112-202310

PAPUA NEW GUINEA, SAMOA SPEC

main86457-42070iMXAA52..ARL;AXAA54..V..ARL;AXAH5#,AXAL5#..RHD..(ARL,EUR)202210-202310

NEW ZEALAND SPEC

main86457-42070iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

86457ABRACKET, MULTI-MEDIA MODULE NO.2

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

UKRAINE,MOLD SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

MOLDOVA,ARMENIA,GEORGIA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

AUDIO-4SPEAKER(AUDIO LESS)

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

AUDIO-4SPEAKER CD *BT, GENERAL

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

AUDIO-6SPEAKER 8INCH, EUROPE

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

AUDIO-6SPEAKER 8INCH, AUSTRALIA

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

AUDIO-JBL 8INCH DAB, EUROPE

main86457-42020iAXAH5#,MXAA5#..LHD..(G,M)..EUR201811-202007

AUDIO-6SPEAKER 8INCH XM

main86457-42020iAXAH54..RUS201811-202203

main86457-42040iAXAH5#..RHD..EUR;MXAA52..RHD..6F..EUR201811-202007

AUDIO-4SPEAKER(AUDIO LESS)

main86457-42040iMXAA52..RHD..G..EUR201811-201910

AUDIO-6SPEAKER 7INCH DVD, ASIA

main86457-42040iMXAA52..RHD..G..EUR201811-201910

AUDIO-4SPEAKER CD *BT, GENERAL

main86457-42040iMXAA52..RHD..G..EUR201811-202007

OTHER WVTA COUNTRY, WITH RSA&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42040iMXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR201811-202007

OTHER WVTA COUNTRY, WITH RSA&AUDIO-4SPEAKER CD *BT, EUROPE/SOUTH AFRICA

main86457-42060iMXAA52..CVT..X..EUR;AXAH54..LHD..(G,V)..EUR;AXAH52..LHD..(G,M)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86457-42060iMXAA52..CVT..X..EUR;AXAH54..LHD..(G,V)..EUR;AXAH52..LHD..(G,M)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main86457-42060iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

AUDIO-6SPEAKER 8INCH, EUROPE

main86457-42060iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

UKRAINE,MOLDOVA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42060iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

AZERBAIJAN,GEORGIA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42060iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202210-202410

main86457-42060iMXAA54..JPP..RUS;AXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

UKRAINE,MOLD SPEC

main86457-42060iMXAA54..JPP..RUS;AXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

AZERBAIJAN,GEORGIA SPEC

main86457-42060iMXAA54..JPP..RUS;AXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

EXCEPT WVTA COUNTRY

main86457-42080iAXAL5#..RHD;AXAA54..V..ARL;AXAH5#,MXAA52..ARL;AXAH52..RHD..(G,P)..EUR202008-202310

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86457-42080iAXAL5#..RHD;AXAA54..V..ARL;AXAH5#,MXAA52..ARL;AXAH52..RHD..(G,P)..EUR202210-202310

NEW ZEALAND SPEC

main86457-42080iAXAL5#..RHD;AXAA54..V..ARL;AXAH5#,MXAA52..ARL;AXAH52..RHD..(G,P)..EUR202112-202310

OCEANIA OTHERS SPEC

main86457-42080iAXAL5#..RHD;AXAA54..V..ARL;AXAH5#,MXAA52..ARL;AXAH52..RHD..(G,P)..EUR202112-202310

PAPUA NEW GUINEA, SAMOA SPEC

main86457-42080iAXAH5#,AXAL5#..RHD..X..EUR202008-202111

AUDIO-JBL 8INCH DAB, AUSTRALIA

main86457-42080iAXAL5#..ARL;MXAA52..6F..ARL202008-202210

AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main86457-42080iAXAH54..V..ARL;AXAH5#,AXAL5#..RHD..(G,M,P,V)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-4SPEAKER(AUDIO LESS)

main86457-42080iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

86681BDIVIDER, ANTENNA

main86681-42030iAXAH5#,MXAA5#..LHD..EUR201811-201910

AUDIO-6SPEAKER 8INCH, EUROPE

main86681-42030iAXAH54..RUS201811-202009

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

GERMANY SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

ITALY SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

NORWAY,SWEDEN,FINLAND,DENMARK SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

OTHER WVTA COUNTRY, WITHOUT RSA&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

SPAIN,JIB SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

UKRAINE,MOLD SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

ISRAEL SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

TURKEY SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-202007

OTHER WVTA COUNTRY, WITH RSA&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

MOLDOVA,ARMENIA,GEORGIA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-202007

AUDIO-4SPEAKER(AUDIO LESS)

main86681-42030iMXAA52..CVT..EUR;MXAA52..LHD..6F..EUR;AXAH5#,MXAA54..LHD..EUR201811-201910

AUDIO-4SPEAKER CD *BT, GENERAL

main86681-42030iMXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR201811-202007

OTHER WVTA COUNTRY, WITH RSA&AUDIO-4SPEAKER CD *BT, EUROPE/SOUTH AFRICA

main86681-42030iMXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR201811-202007

AUDIO-4SPEAKER CD *BT, EUROPE/SOUTH AFRICA

main86681-42030iAXAA54,MXAA5#..RUS202010-202203

AUDIO-6SPEAKER(AUDIO LESS)

main86681-42040iAXAL5#..LHD;AXAH5#..LHD..(P,V)..EUR202008-202210

main86681-42040iAXAH5#,MXAA5#..LHD..EUR202112-202210

EXCEPT WVTA COUNTRY

main86681-42040iAXAH5#,MXAA5#..LHD..EUR202112-202210

ARMENIA SPEC

main86681-42040iAXAH5#,MXAA5#..LHD..EUR202112-202210

UKRAINE,MOLDOVA SPEC

main86681-42040iAXAH5#,MXAA5#..LHD..EUR202112-202210

AZERBAIJAN,GEORGIA SPEC

main86681-42040iAXAH5#,MXAA5#..LHD..EUR202112-202210

CUSTOMS UNION SPEC

main86681-42040iAXAH5#,MXAA5#..LHD..EUR202112-202210

KAZAKHSTAN SPEC

main86681-42050iAXAH52..RHD..(G,P)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-4SPEAKER(AUDIO LESS)

main86681-42050iAXAH5#,AXAL5#..RHD..(G,M,P,V)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86681-42050iAXAH5#,AXAL5#..RHD..X..EUR202008-202111

86730AMICROPHONE ASSY, TELEPHONE

main86730-42050iAXAA52,MXAA54..GCC201811-201910

AUDIO-6SPEAKER(AUDIO LESS)

main86730-42050iAXAA52,MXAA54..GCC201811-201910

AUDIO-4SPEAKER CD *BT, GENERAL

main86730-42050iMXAA54..CVT..G;AXAH54..LHD..GEN;MXAA54..6F..G..EUR;MXAA54..LHD..(M,V,X);AXAH5#,MXAA52..EUR,GCC;AXAA5#,AXAH52,MXAA52..LHD..(GCC,GEN)201811-201910

AUDIO-4SPEAKER(AUDIO LESS)

main86730-42080iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202210

main86730-42080iAXAA52,MXAA54..GCC201910-202007

AUDIO-4SPEAKER(AUDIO LESS)

main86730-42080iAXAA52,MXAA54..GCC201910-202007

AUDIO-6SPEAKER(AUDIO LESS)

main86730-42080iAXAA52,MXAA54..GCC201910-202007

AUDIO-4SPEAKER CD *BT, GENERAL

main86730-75010iAXAH54..RUS201902-202203

86842WIRE, NAVIGATION, NO.1

main86842-42020iAXAH54..RUS201811-202203

main86842-42020iAXAL5#..LHD..X201811-202210

AUDIO-4SPEAKER(AUDIO LESS)

main86842-42020iMXAA52..CVT..X..EUR;AXAH54..LHD..(G,V)..EUR;AXAH52..LHD..(G,M)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main86842-42020iMXAA52..CVT..X..EUR;AXAH54..LHD..(G,V)..EUR;AXAH52..LHD..(G,M)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86842-42020iMXAA52..CVT..X..EUR;AXAH54..LHD..(G,V)..EUR;AXAH52..LHD..(G,M)..EUR201811-202210

AUDIO-6SPEAKER 8INCH, EUROPE

main86842-42020iMXAA52..CVT..X..EUR;AXAH54..LHD..(G,V)..EUR;AXAH52..LHD..(G,M)..EUR202008-202210

EU BASIC PACKAGE

main86842-42020iAXAH5#,AXAL5#,MXAA5#..LHD..EUR201811-202007

AUDIO-4SPEAKER CD *BT, GENERAL

main86842-42020iAXAH5#,AXAL5#,MXAA5#..LHD..EUR201811-202007

AUDIO-6SPEAKER 8INCH, AUSTRALIA

main86842-42020iAXAH5#,AXAL5#,MXAA5#..LHD..EUR201811-202007

AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86842-42020iAXAH5#,AXAL5#,MXAA5#..LHD..EUR201811-202007

AUDIO-6SPEAKER 8INCH XM

main86842-42040iAXAH5#,AXAL5#..RHD..(G,M,P,V)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86842-42040iMXAA52..RHD..CVT..EUR201811-202210

AUDIO-4SPEAKER(AUDIO LESS)

main86842-42040iMXAA52..RHD..CVT..EUR201811-201910

AUDIO-4SPEAKER CD *BT, GENERAL

main86842-42040iMXAA52..RHD..CVT..EUR201811-201910

AUDIO-6SPEAKER 7INCH DVD, ASIA

main86842-42040iMXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR201811-202007

AUDIO-4SPEAKER CD *BT, EUROPE/SOUTH AFRICA

main86842-42040iAXAH5#,AXAL5#..RHD..X..EUR202008-202210

AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main86842-42040iAXAH5#,AXAL5#..RHD..X..EUR202008-202111

AUDIO-JBL 8INCH DAB, AUSTRALIA

main86842-42040iAXAA54..V..ARL;AXAH5#,MXAA52..G..ARL202112-202210

OCEANIA OTHERS SPEC

main86842-42040iAXAA54..V..ARL;AXAH5#,MXAA52..G..ARL202112-202210

PAPUA NEW GUINEA, SAMOA SPEC

86842JWIRE, NAVIGATION, NO.2

main86842-42050iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202210

OCEANIA OTHERS SPEC

main86842-42050iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202210

PAPUA NEW GUINEA, SAMOA SPEC

main86842-42060iAXAL5#..LHD..X202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA

main86842-42060iMXAA52..CVT..X..EUR;AXAH54,AXAL54..LHD..G..EUR;AXAH52,AXAL52..LHD..M..EUR201811-202210

AUDIO-6SPEAKER 8INCH, EUROPE

main86842-42060iMXAA52..CVT..X..EUR;AXAH54,AXAL54..LHD..G..EUR;AXAH52,AXAL52..LHD..M..EUR201811-202007

AUDIO-6SPEAKER 8INCH, AUSTRALIA

main86842-42060iMXAA52..CVT..X..EUR;AXAH54,AXAL54..LHD..G..EUR;AXAH52,AXAL52..LHD..M..EUR201811-202007

AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86842-42060iAXAH54,AXAL54..LHD..EUR;MXAA52..LHD..CVT..(G,X)..EUR201811-202210

AUDIO-4SPEAKER(AUDIO LESS)

main86842-42060iAXAH54,AXAL54..LHD..EUR;MXAA52..LHD..CVT..(G,X)..EUR201811-202007

AUDIO-4SPEAKER CD *BT, GENERAL

main86842-42060iAXAH54..RUS201811-202203

main86842-42060iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

EU BASIC PACKAGE

main86842-42060iAXAH5#,AXAL5#,MXAA5#..LHD..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86842-42070iAXAH5#,AXAL5#..RHD..(G,M,P,V)..EUR201811-202210

AUDIO-4SPEAKER(AUDIO LESS)

main86842-42070iMXAA52..RHD..G..EUR201811-201910

AUDIO-4SPEAKER CD *BT, GENERAL

main86842-42070iMXAA52..RHD..G..EUR201811-201910

AUDIO-6SPEAKER 7INCH DVD, ASIA

main86842-42070iAXAH5#,AXAL5#..RHD..(G,M,P,V)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86842-42070iMXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR201811-202007

AUDIO-4SPEAKER CD *BT, EUROPE/SOUTH AFRICA

main86842-42070iAXAH5#,AXAL5#..RHD..X..EUR202008-202111

86860ANTENNA ASSY, NAVIGATION

main86860-78010iAXAA52..X..GEN;AXAH52..LHD..G..GEN;AXAA54..LHD..(G,M,V)..GEN201811-202007

AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86860-78010iAXAA52..X..GEN;AXAH52..LHD..G..GEN;AXAA54..LHD..(G,M,V)..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, GENERAL

main86860-78010iAXAA52..X..GEN;AXAH52..LHD..G..GEN;AXAA54..LHD..(G,M,V)..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA

main86860-78010iAXAA52..X..GEN;AXAH52..LHD..G..GEN;AXAA54..LHD..(G,M,V)..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, ASIA

main86860-78010iAXAA52..X..GEN;AXAH52..LHD..G..GEN;AXAA54..LHD..(G,M,V)..GEN201811-202007

AUDIO-6SPEAKER 8INCH XM

main86860-78010iAXAA52..X..GEN;AXAH52..LHD..G..GEN;AXAA54..LHD..(G,M,V)..GEN201811-202210

AUDIO-RADIO LESS 4SPEAKER

main86860-78010iAXAA52..X..GEN;AXAH52..LHD..G..GEN;AXAA54..LHD..(G,M,V)..GEN201811-202210

AUDIO-RADIO LESS 6SPEAKER

main86860-78010iAXAA5#,AXAH54,MXAA54..GCC201811-202210

AUDIO-4SPEAKER(AUDIO LESS)

main86860-78010iAXAA5#,AXAH54,MXAA54..GCC201811-202210

AUDIO-6SPEAKER(AUDIO LESS)

main86860-78010iAXAA5#,AXAH54,MXAA54..GCC201811-202210

AUDIO-4SPEAKER CD *BT, GENERAL

main86860-78010iAXAA5#,AXAH54,MXAA54..GCC201811-202007

AUDIO-6SPEAKER 8INCH, AUSTRALIA

main86860-78010iAXAH52..GCC;AXAA54..LHD..V;AXAH52..(G,M,P)..GEN;AXAA54..JPP..(G,M,X);AXAA52,AXAH54,MXAA5#..(G,M,V,X)..(GCC,GEN,SA)202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 8INCH DAB, (MID-EAST)

main86860-78010iMXAA5#..6F..GEN202310-202410

main86860-78010iAXAH52..P..GEN202310-202411

AUDIO-6SPEAKER 8INCH, LATIN AMERICA

main86860-78010iAXAH52..GCC;AXAA54..LHD..V;AXAA5#..JPP..(G,M,X);MXAA52..CVT..X..(GCC,GEN);AXAH52,MXAA52..CVT..(G,M)..(GEN,SA);AXAH54,MXAA54..CVT..(G,M,V,X)..(GCC,GEN,SA)202310

NEW ZEALAND SPEC

main86860-78010iAXAH52..GCC;AXAA54..LHD..V;AXAA5#..JPP..(G,M,X);MXAA52..CVT..X..(GCC,GEN);AXAH52,MXAA52..CVT..(G,M)..(GEN,SA);AXAH54,MXAA54..CVT..(G,M,V,X)..(GCC,GEN,SA)202310

OCEANIA OTHERS SPEC

main86860-78010iAXAH52..GCC;AXAA54..LHD..V;AXAA5#..JPP..(G,M,X);MXAA52..CVT..X..(GCC,GEN);AXAH52,MXAA52..CVT..(G,M)..(GEN,SA);AXAH54,MXAA54..CVT..(G,M,V,X)..(GCC,GEN,SA)202310

PAPUA NEW GUINEA, SAMOA SPEC

main86860-78010iAXAH52..GCC;AXAA54..LHD..V;AXAA5#..JPP..(G,M,X);MXAA52..CVT..X..(GCC,GEN);AXAH52,MXAA52..CVT..(G,M)..(GEN,SA);AXAH54,MXAA54..CVT..(G,M,V,X)..(GCC,GEN,SA)202310

AUDIO-6SPEAKER 10.5INCH, EUROPE

main86880-42010iAXAA54..V..ARL;AXAH5#,MXAA52..ARL202210-202310

main86880-42030iAXAH52..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

EXCEPT WVTA COUNTRY

main86880-42030iAXAH52..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86880-42030iAXAH52..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

UKRAINE,MOLD SPEC

main86880-42030iAXAH52..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

AZERBAIJAN,GEORGIA SPEC

main86880-42030iMXAA54..JPP..RUS202210-202410

main86880-52020iAXAH52..LHD..(G,M)..EUR;AXAH54..LHD..(G,M,V,X)..EUR;MXAA52..LHD..CVT..(G,X)..EUR202112-202210

AZERBAIJAN,GEORGIA SPEC

main86880-52020iAXAH52..LHD..(G,M)..EUR;AXAH54..LHD..(G,M,V,X)..EUR;MXAA52..LHD..CVT..(G,X)..EUR202112-202210

CUSTOMS UNION SPEC

main86880-52020iAXAH52..LHD..(G,M)..EUR;AXAH54..LHD..(G,M,V,X)..EUR;MXAA52..LHD..CVT..(G,X)..EUR202112-202210

KAZAKHSTAN SPEC

main86880-52020iAXAH52..LHD..(G,M)..EUR;AXAH54..LHD..(G,M,V,X)..EUR;MXAA52..LHD..CVT..(G,X)..EUR202112-202210

EXCEPT WVTA COUNTRY

main86880-52020iAXAH52..LHD..(G,M)..EUR;AXAH54..LHD..(G,M,V,X)..EUR;MXAA52..LHD..CVT..(G,X)..EUR202112-202210

ARMENIA SPEC

main86880-52020iMXAA54..CVT..EUR202112-202210

UKRAINE,MOLDOVA SPEC

main86880-52020iAXAH5#,AXAL5#..RHD..X..EUR202008-202111

main86880-52020iAXAH52..RHD..(G,P)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86880-52020iAXAH52..RHD..(G,P)..EUR202008-202210

EXCEPT WVTA COUNTRY&AUDIO-4SPEAKER(AUDIO LESS)

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202210

AUDIO-6SPEAKER(AUDIO LESS)

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202210

AUDIO-4SPEAKER CD *BT, GENERAL

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202007

AUDIO-6SPEAKER 8INCH, AUSTRALIA

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202007

AUDIO-6SPEAKER 7INCH DVD, MID-EAST

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, GENERAL

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202210

AUDIO-6SPEAKER 7INCH DVD, ASIA

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202007

AUDIO-6SPEAKER 8INCH XM

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202210

AUDIO-RADIO LESS 4SPEAKER

main86862-42010iAXAA54..RHD..GEN;AXAH54,MXAA52..GEN;AXAH52,MXAA54..(M,V,X)..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN;AXAA52,MXAA54..(ATM,CVT)..G..GEN201811-202210

AUDIO-RADIO LESS 6SPEAKER

main86862-42010iMXAA54..CVT..G..GEN;MXAA54..LHD..(M,V,X)..GEN;AXAA5#,AXAH5#,MXAA52..LHD..GEN201811-202210

AUDIO-4SPEAKER(AUDIO LESS)

main86862-42010iAXAL5#..LHD..X;AXAH54..(G,M)..GCC;MXAA54..(M,X)..GCC;AXAH5#..X..(ARL,GCC);AXAL5#..(G,M,P,V)..EUR;AXAH5#..LHD..(P,V)..EUR;MXAA52..CVT..(ARL,GCC,SA);AXAA54,MXAA54..(M202008-202210

EXCEPT WVTA COUNTRY&AUDIO-4SPEAKER(AUDIO LESS)

main86862-42010iAXAL5#..LHD..X;AXAH54..(G,M)..GCC;MXAA54..(M,X)..GCC;AXAH5#..X..(ARL,GCC);AXAL5#..(G,M,P,V)..EUR;AXAH5#..LHD..(P,V)..EUR;MXAA52..CVT..(ARL,GCC,SA);AXAA54,MXAA54..(M202008-202210

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86862-42010iAXAH5#,MXAA5#..LHD..(G,M,X)..EUR202112-202210

UKRAINE,MOLDOVA SPEC

main86862-42010iAXAH5#,MXAA5#..LHD..(G,M,X)..EUR202112-202210

AZERBAIJAN,GEORGIA SPEC

main86862-42010iAXAH5#,MXAA5#..LHD..(G,M,X)..EUR202112-202210

CUSTOMS UNION SPEC

main86862-42010iAXAH5#,MXAA5#..LHD..(G,M,X)..EUR202112-202210

KAZAKHSTAN SPEC

main86862-42010iAXAH5#,MXAA5#..LHD..(G,M,X)..EUR202112-202210

EXCEPT WVTA COUNTRY

main86862-42010iAXAH5#,MXAA5#..LHD..(G,M,X)..EUR202112-202210

ARMENIA SPEC

main86862-48060iAXAH52..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

AZERBAIJAN,GEORGIA SPEC

main86862-48060iMXAA54..JPP..RUS202210-202410

main86862-48060iAXAH52..P..GEN202310-202411

AUDIO-6SPEAKER 8INCH, LATIN AMERICA

main86862-48060iAXAH54..X..GCC;AXAH52..ARL,GCC;AXAH52..(G,M)..GEN;AXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH54..LHD..P..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,V);AXAH54..RHD..202310

UKRAINE,MOLD SPEC

main86862-48060iAXAH54..X..GCC;AXAH52..ARL,GCC;AXAH52..(G,M)..GEN;AXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH54..LHD..P..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,V);AXAH54..RHD..202310

EXCEPT WVTA COUNTRY

main86862-48060iAXAH54..X..GCC;AXAH52..ARL,GCC;AXAH52..(G,M)..GEN;AXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH54..LHD..P..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,V);AXAH54..RHD..202310

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86862-48060iAXAH54..X..GCC;AXAH52..ARL,GCC;AXAH52..(G,M)..GEN;AXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH54..LHD..P..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,V);AXAH54..RHD..202310

AUDIO-6SPEAKER(AUDIO LESS)

main86862-48060iAXAH54..X..GCC;AXAH52..ARL,GCC;AXAH52..(G,M)..GEN;AXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH54..LHD..P..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,V);AXAH54..RHD..202310

AUDIO-6SPEAKER 10.5INCH, EUROPE

9167380616

main91673-80616

9356855014

main93568-55014

12 parts on this diagram · 8 diagrams in section
