ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

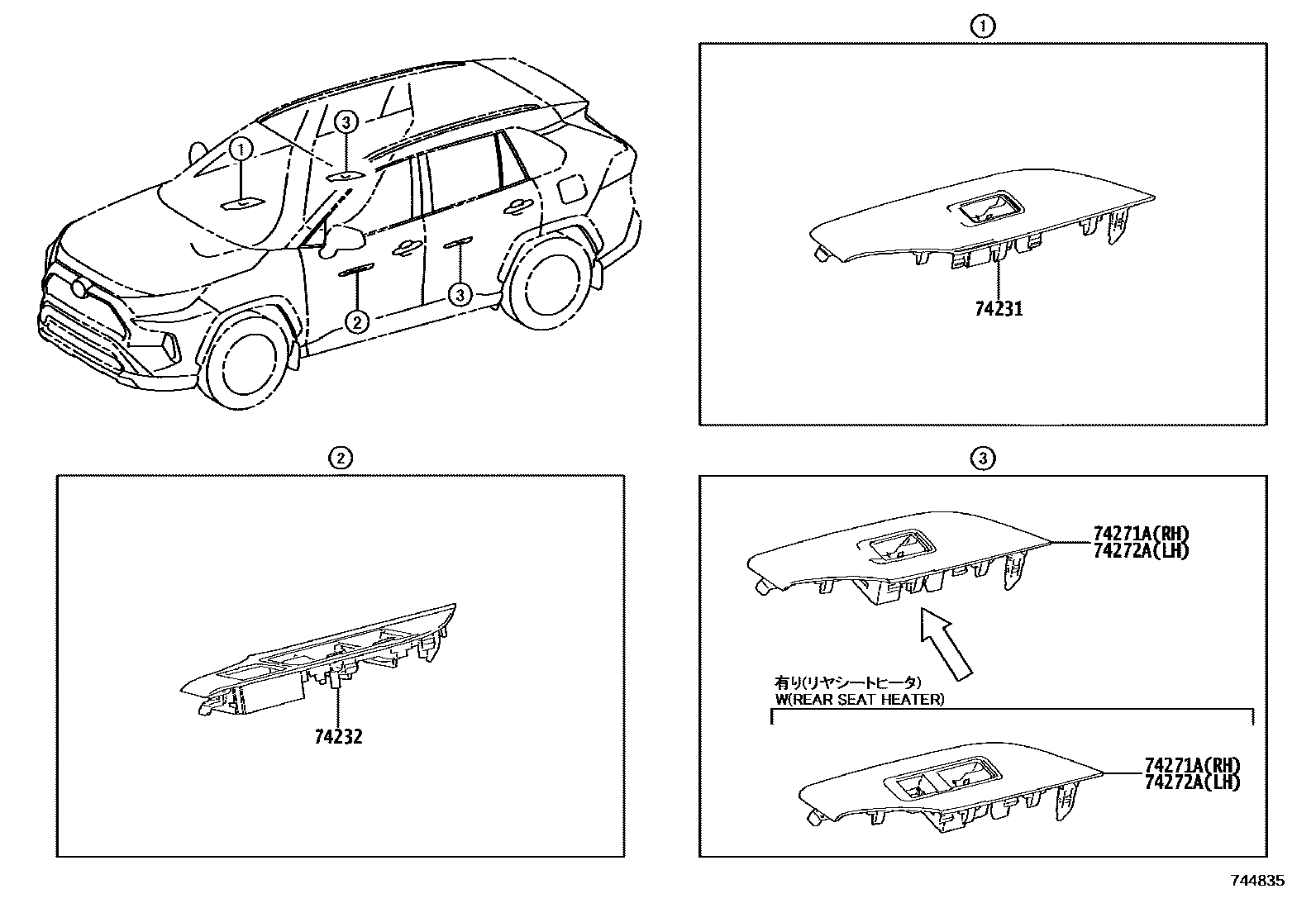

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-42340iAXAH54..RUS;MXAA54..6F..G..GEN201811-201909

main74231-42360iMXAA52..RHD..CVT;AXAH52..RHD..(M,X);MXAA52..RHD..6F..(M,X);AXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD201811-202007

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-42220iAXAH54..X..EUR202310-202410

main74232-42240iAXAL5#..ARL;AXAA54..G..ARL;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA5#..RHD..6F..(ARL,GEN)202008-202111

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-42110iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

main74271-42130iAXAA54,MXAA5#..G..RUS201910-202009

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-42110iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

main74272-42130iAXAA54,MXAA5#..G..RUS201910-202009

4 parts on this diagram · 3 diagrams in section
