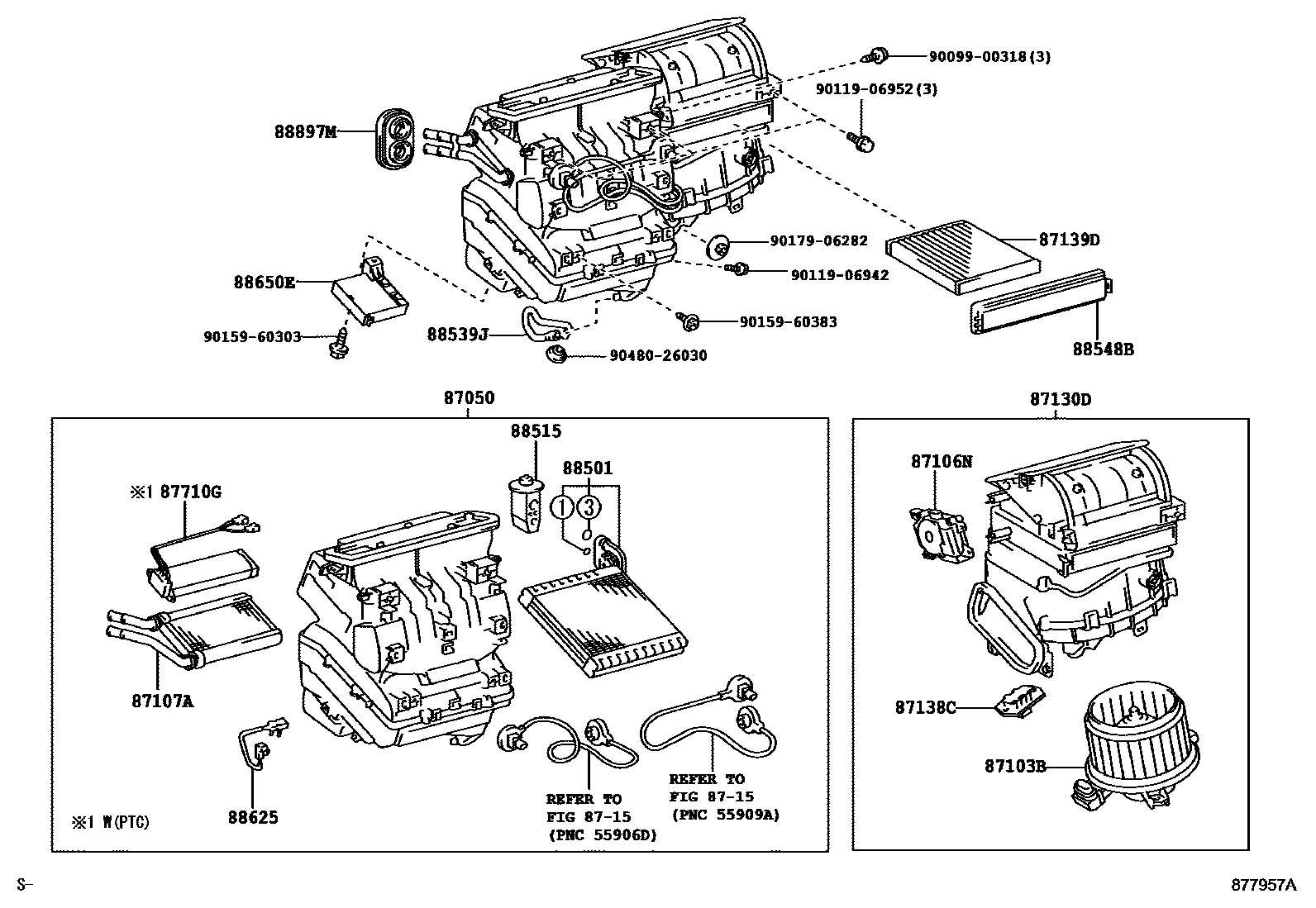

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1W/O(AIR CONDITIONER) 0004 1MANUAL AIR CONDITIONER 0005 1AUTO AIR CONDITONER 0008 1W/O(AIR CONDITIONER) 0009 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12310iACA30..RHD..X200606-200812

AIR CONDITIONER-MANUAL

main87050-12310iACA30,33,38,GSA33,ZSA3#..RHD..X200606-201004

main87050-12311iGSA33..X201005-201008

main87050-12311iACA3#,ZSA3#..RHD..X201005-201212

AIR CONDITIONER-MANUAL

main87050-12330iACA30,33,38,GSA33,ZSA3#..RHD..G200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main87050-12330iACA30..RHD..G200606-201212

main87050-12390iACA30..LHD..G200606-200812

AIR CONDITIONER-MANUAL

main87050-12390iACA30,33,38,ZSA3#..LHD..X200606-201004

main87050-12390iACA30..LHD..X200606-200812

COLD AREA SPEC

main87050-12391iZSA3#..LHD..G201005-201212

AIR CONDITIONER-MANUAL

main87050-12410iACA30,31,33..LHD..G..(EUR,GCC)200606-200812

COLD AREA SPEC

main87050-12410iACA30,33,38,ZSA3#..LHD..G200606-201212

main87050-42290iALA3#..RHD..6F..G200812-201212

AIR CONDITIONER-MANUAL

main87050-42300iACA30..RHD..G200511-200606

AIR CONDITIONER-MANUAL

main87050-42310iALA30..RHD..X200511-200605

AIR CONDITIONER-MANUAL

main87050-42311iALA30..RHD..G200606-200812

AIR CONDITIONER-MANUAL

main87050-42320iACA30,33..RHD..G200511-200606

main87050-42330iALA30..RHD..G200511-200605

main87050-42331iALA30..RHD..G200606-200812

main87050-42360iACA3#..LHD..X200511-200606

COLD AREA SPEC

main87050-42360iACA30..LHD..G200511-200606

AIR CONDITIONER-MANUAL

main87050-42370iALA30..LHD..X200511-200605

AIR CONDITIONER-MANUAL

main87050-42371iALA30..LHD..G200606-200812

AIR CONDITIONER-MANUAL

main87050-42380iALA30..LHD..G200511-200606

COLD AREA SPEC

main87050-42390iALA30..LHD..G200511-200605

main87050-42391iALA30..LHD..G200606-200812

main87050-42420iALA3#..RHD..G200812-201212

main87050-42440iALA3#..LHD..X200812-201212

AIR CONDITIONER-MANUAL

main87050-42450iALA3#..LHD..G200812-201212

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42070iACA30,ALA30..RHD..G200511-200812

AIR CONDITIONER-MANUAL

main87103-42070iACA33,GSA33..X..ARL200511-201212

main87103-42070iACA30,ALA30..RHD..X200511-200812

AIR CONDITIONER-WITHOUT

main87103-42080iACA30,33,ALA30,GSA33..RHD..G200511-200710

main87103-42081iACA33,38..X..ARL200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main87103-42081iACA30,ALA30..RHD..G200711-201212

main87103-42090iACA30,ALA30..LHD..G200511-200812

AIR CONDITIONER-MANUAL

main87103-42090iACA30,ALA30..LHD..G200511-200812

AIR CONDITIONER-WITHOUT

main87103-42090iACA30,33,38,ALA3#,ZSA3#..LHD..X200511-201212

main87103-42100iACA3#,ALA30..LHD..G200511-200805

main87103-42101iACA30,33,38,ALA3#,ZSA3#..LHD..G200806-201212

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-42110iACA30,ALA30..RHD..G200511-200812

AIR CONDITIONER-MANUAL

main87106-42110iGSA33..X200511-201212

main87106-42110iACA30,ALA30..RHD..X200511-200812

AIR CONDITIONER-WITHOUT

main87106-42120iGSA33..X200511-201212

main87106-42120iACA30,33,38,ALA3#,GSA33,ZSA3#..RHD..G200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main87106-42130iACA30,ALA30..LHD..G200511-200812

AIR CONDITIONER-WITHOUT

main87106-42130iACA30,ALA30..LHD..G200511-200812

AIR CONDITIONER-MANUAL

main87106-42130iACA30,33,38,ALA3#,ZSA3#..LHD..X200511-201212

main87106-42140iACA33,38..G..GEN200511-201112

main87106-47130iACA3#,ALA3#,ZSA3#..LHD..G201112-201212

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

87130DBLOWER ASSY

main87130-12430iACA30..RHD..G200606-200805

AIR CONDITIONER-WITHOUT

main87130-12430iACA30,33,GSA33..RHD..X200606-200805

AIR CONDITIONER-MANUAL

main87130-12431iACA30..RHD..X200806-200812

AIR CONDITIONER-WITHOUT

main87130-12431iACA30,33,38,ZSA3#..RHD..X200806-201212

main87130-12431iACA30..RHD..G200806-200812

AIR CONDITIONER-MANUAL

main87130-12470iALA30..RHD..X200606-200805

AIR CONDITIONER-WITHOUT

main87130-12470iALA30..RHD..G200606-200805

AIR CONDITIONER-MANUAL

main87130-12471iALA30..RHD..G200806-200812

AIR CONDITIONER-WITHOUT

main87130-12471iALA30..RHD..X200806-200812

AIR CONDITIONER-MANUAL

main87130-12510iACA30,33,GSA33..RHD..G200606-200805

main87130-12511iGSA33..X200806-201212

main87130-12511iACA33,38..X..ARL200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main87130-12520iALA30..RHD..G200606-200805

main87130-12521iALA30..RHD..G200806-200812

main87130-12550iACA30..LHD..G200606-200805

AIR CONDITIONER-MANUAL

main87130-12550iACA30..LHD..G200606-200805

COLD AREA SPEC

main87130-12550iACA30..LHD..G200606-200805

AIR CONDITIONER-WITHOUT

main87130-12551iALA30..LHD..X200806-200812

AIR CONDITIONER-MANUAL

main87130-12551iACA30..LHD..X200806-200812

AIR CONDITIONER-WITHOUT

main87130-12551iACA30..LHD..X200806-200812

COLD AREA SPEC

main87130-12551iACA30,33,38,ZSA3#..LHD..X200806-201212

main87130-12560iALA30..LHD..X200606-200805

AIR CONDITIONER-WITHOUT

main87130-12560iALA30..LHD..X200606-200805

AIR CONDITIONER-MANUAL

main87130-12561iALA30..LHD..G200806-200812

AIR CONDITIONER-WITHOUT

main87130-12561iALA30..LHD..G200806-200812

AIR CONDITIONER-MANUAL

main87130-12570iALA30..LHD..G200606-200805

COLD AREA SPEC

main87130-12571iALA30..LHD..G200806-200812

COLD AREA SPEC

main87130-12571iACA33,38..G..GEN200806-201212

main87130-12580iALA30..LHD..G200606-200805

main87130-12581iALA30..LHD..G200806-200812

main87130-42180iACA30,33..RHD..X200511-200606

AIR CONDITIONER-WITHOUT

main87130-42180iACA30..RHD..G200511-200606

AIR CONDITIONER-MANUAL

main87130-42190iALA30..RHD..G200511-200605

AIR CONDITIONER-MANUAL

main87130-42190iALA30..RHD..G200511-200605

AIR CONDITIONER-WITHOUT

main87130-42200iACA30,33..RHD..G200511-200606

main87130-42210iALA30..RHD..G200511-200605

main87130-42220iACA30..LHD..G200511-200606

AIR CONDITIONER-WITHOUT

main87130-42220iACA30..LHD..G200511-200606

AIR CONDITIONER-MANUAL

main87130-42220iALA30..LHD..X200511-200606

COLD AREA SPEC

main87130-42230iALA30..LHD..G200511-200605

AIR CONDITIONER-MANUAL

main87130-42230iALA30..LHD..G200511-200605

AIR CONDITIONER-WITHOUT

main87130-42240iALA30..LHD..G200511-200606

COLD AREA SPEC

main87130-42250iALA30..LHD..G200511-200605

main87130-42261iALA3#..RHD..X200812-201212

AIR CONDITIONER-WITHOUT

main87130-42261iALA3#..RHD..6F..G200812-201212

AIR CONDITIONER-MANUAL

main87130-42271iALA3#..RHD..G200812-201212

main87130-42281iALA3#..LHD..X200812-201212

AIR CONDITIONER-WITHOUT

main87130-42281iALA3#..LHD..6F..G200812-201212

AIR CONDITIONER-MANUAL

main87130-42291iALA3#..LHD..G200812-201212

87138CRESISTOR, BLOWER

main87138-26150iACA33,GSA33..X..ARL200511-201212

main87138-26150iACA30,ALA30..RHD..X200511-200812

AIR CONDITIONER-MANUAL

main87138-26150iACA30,ALA30..RHD..X200511-200812

AIR CONDITIONER-WITHOUT

main87138-26160iACA30,ALA30..LHD..X200511-200812

AIR CONDITIONER-MANUAL

main87138-26160iACA33,38..LHD..X200511-201212

main87138-26160iACA30,ALA30..LHD..X200511-200812

AIR CONDITIONER-WITHOUT

87139DELEMENT, AIR REFINER

main87139-30040iACA30,33,ALA3#,ZSA3#..EUR200812-201212

main87139-52020iACA3#,ALA30,GSA33200511-201212

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87710GQUICK HEATER ASSY

main87710-26060iALA30..RHD200511-200805

main87710-26070iALA30..LHD200511-200805

main87710-42010iALA3#..RHD200812-201212

main87710-42020iALA3#..LHD200812-201212

main87710-42030iALA30..RHD200806-200812

main87710-42040iALA30..LHD200806-200812

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-26210iACA3#,ALA30,GSA33200511-200805

main88501-26211iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200806-201009

main88501-72020iACA3#,ALA3#,GSA33,ZSA3#201010-201212

88515VALVE, COOLER EXPANSION

main88515-12100iACA3#,ZSA3#..X201005-201212

AIR CONDITIONER-MANUAL

main88515-12100iGSA33;ACA3#,ZSA3#..RHD..G201005-201212

main88515-26070iACA3#,GSA33..X;ZSA3#..X..BTYPE;ZSA30..LHD..CVFC..X..ATYPE200511-201009

main88515-42090iACA30,33,GSA33,ZSA3#..RHD..G..ATYPE200902-201010

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main88515-42090iGSA33..X200606-201010

88539JHOSE, DRAIN COOLER

main88539-42050iACA30,ALA30..RHD200511-201208

main88539-42051iACA3#,ALA3#,GSA33,ZSA3#..RHD201209-201212

main88539-42060iACA30,33,38,ALA3#,ZSA3#..LHD200511-201208

main88539-42061iACA3#,ALA3#,ZSA3#..LHD201209-201212

88548BCASE, AIR FILTER

main88548-42010iACA33,GSA33..ARL200511-201212

main88548-42020iACA33..G..GCC;ACA30,31,ALA30..LHD200511-201212

88625THERMISTOR, COOLER, NO.1

main88625-26090iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-42180iACA30..G200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL

main88650-42180iACA33,38..X200511-200808

AIR CONDITIONER-MANUAL(DOP)

main88650-42180iACA30..X200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88650-42180iACA30..X200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT

main88650-42180iACA30..X200511-200812

COLD AREA SPEC

main88650-42191iGSA33..X200708-200808

main88650-42200iALA30..G200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL

main88650-42200iALA30..G200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT

main88650-42230iALA30..G200511-200812

main88650-42240iALA30..LHD..G200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88650-42240iACA33,38..G..(ARL,GEN)200511-200808

main88650-42240iACA30,31,33..G..(EUR,GCC)200511-200812

COLD AREA SPEC

main88650-42260iGSA33..G200708-200808

main88650-42290iACA30,33,38,ZSA3#..X200808-201212

main88650-42310iALA3#..6F..G200812-201212

AIR CONDITIONER-MANUAL

main88650-42310iALA3#..X200812-201212

AIR CONDITIONER-WITHOUT

main88650-42340iACA30,33,38,ZSA3#..G200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main88650-42361iALA3#..G200812-201212

main88650-42370iGSA33..X200808-201008

main88650-42380iGSA33..X200808-201212

88897MGROMMET (FOR HEATER PIPE)

main87128-42010iACA33..G..GCC;ACA30,31,ALA30200511-201212

9009900318

main90099-00318

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

9048026030

main90480-26030

23 parts on this diagram · 7 diagrams in section
