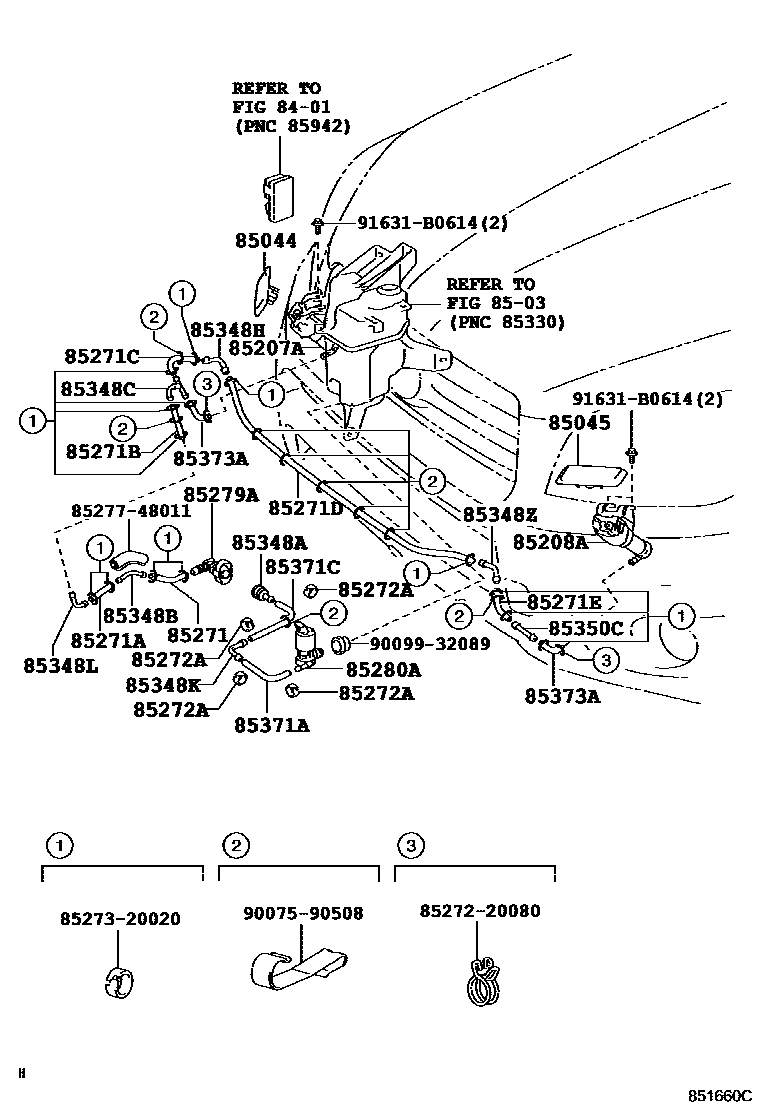

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
8503WINDSHIELD WASHER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
DK.GRAY MC.,1E0
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BEIGE ME.,4R4
LT.GREEN ME.,6T6
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3
HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,WHITE PEARL CS.,070
HEADLAMP CLEANER-WITH,SILVER ME.,1F7
HEADLAMP CLEANER-WITH,GRAY ME.,1G3
HEADLAMP CLEANER-WITH,DK. STEEL MC.,1H2
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,RED M.M.,3R3
HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3
HEADLAMP CLEANER-WITH,BRONZE M.M.,4T3
HEADLAMP CLEANER-WITH,BEIGE ME.,4T8
HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3
HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3
HEADLAMP CLEANER-WITH,DK.VIOLET M.M.,9AF
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,WHITE PEARL CS.,070
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,SILVER ME.,1F7
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,GRAY ME.,1G3
HEADLAMP CLEANER-WITH,DK. STEEL MC.,1H2
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,RED M.M.,3R3; X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,RED M.M.,3R3
HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,BRONZE M.M.,4T3
HEADLAMP CLEANER-WITH,BEIGE ME.,4T8
HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3; X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3
HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,DK.VIOLET M.M.,9AF
HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,WHITE PEARL CS.,070
HEADLAMP CLEANER-WITH,SILVER ME.,1F7
HEADLAMP CLEANER-WITH,GRAY ME.,1G3
HEADLAMP CLEANER-WITH,DK. STEEL MC.,1H2
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3
HEADLAMP CLEANER-WITH,RED M.M.,3R3
HEADLAMP CLEANER-WITH,BRONZE M.M.,4T3
HEADLAMP CLEANER-WITH,BEIGE ME.,4T8
HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
DK.GRAY MC.,1E0
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BEIGE ME.,4R4
LT.GREEN ME.,6T6
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3
HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,WHITE PEARL CS.,070
HEADLAMP CLEANER-WITH,SILVER ME.,1F7
HEADLAMP CLEANER-WITH,GRAY ME.,1G3
HEADLAMP CLEANER-WITH,DK. STEEL MC.,1H2
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,RED M.M.,3R3
HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3
HEADLAMP CLEANER-WITH,BRONZE M.M.,4T3
HEADLAMP CLEANER-WITH,BEIGE ME.,4T8
HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3
HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3
HEADLAMP CLEANER-WITH,DK.VIOLET M.M.,9AF
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,WHITE PEARL CS.,070
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,SILVER ME.,1F7
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,GRAY ME.,1G3
HEADLAMP CLEANER-WITH,DK. STEEL MC.,1H2
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,RED M.M.,3R3; X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,RED M.M.,3R3
HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,BRONZE M.M.,4T3
HEADLAMP CLEANER-WITH,BEIGE ME.,4T8
HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3; X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3
HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH,DK.VIOLET M.M.,9AF
HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,WHITE PEARL CS.,070
HEADLAMP CLEANER-WITH,SILVER ME.,1F7
HEADLAMP CLEANER-WITH,GRAY ME.,1G3
HEADLAMP CLEANER-WITH,DK. STEEL MC.,1H2
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3
HEADLAMP CLEANER-WITH,RED M.M.,3R3
HEADLAMP CLEANER-WITH,BRONZE M.M.,4T3
HEADLAMP CLEANER-WITH,BEIGE ME.,4T8
HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
L=90
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
L=140,HEADLAMP CLEANER-WITH
85271AHOSE, HEADLAMP CLEANER, NO.2
L=90
L=280,HEADLAMP CLEANER-WITH
L=220,HEADLAMP CLEANER-WITH
L=240,HEADLAMP CLEANER-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=190
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
L=1700,HEADLAMP CLEANER-WITH
L=1300,HEADLAMP CLEANER-WITH
85271CHOSE, HEADLAMP CLEANER, NO.4
L=60
L=640(*H,L=320),X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1320(*H,L=1150)
L=230,X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
85271EHOSE, HEADLAMP CLEANER, NO.6
L=60
85272ACLAMP, HEADLAMP CLEANER, NO.1
85279AJOINT, HEADLAMP CLEANER HOSE
HEADLAMP CLEANER-WITH
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
COLD AREA SPEC&HEADLAMP CLEANER-WITH; HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
HEADLAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
COLD AREA SPEC&HEADLAMP CLEANER-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85350CJOINT, HEADLAMP CLEANER HOSE, NO.6
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=70
L=40,COLD AREA SPEC&HEADLAMP CLEANER-WITH
85371CHOSE, HEADLAMP CLEANER, NO.1
L=190,COLD AREA SPEC&HEADLAMP CLEANER-WITH; L=190,HEADLAMP CLEANER-WITH
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=52
L=70,X-SPORT PACKAGE&HEADLAMP CLEANER-WITH
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527748011HOSE, HEADLAMP CLEANER, C
main85277-48011
9007590508
main90075-90508
9009932089
main90099-32089
91631B0614
main91631-B0614
32 parts on this diagram · 3 diagrams in section
