LOCK CYLINDER SET

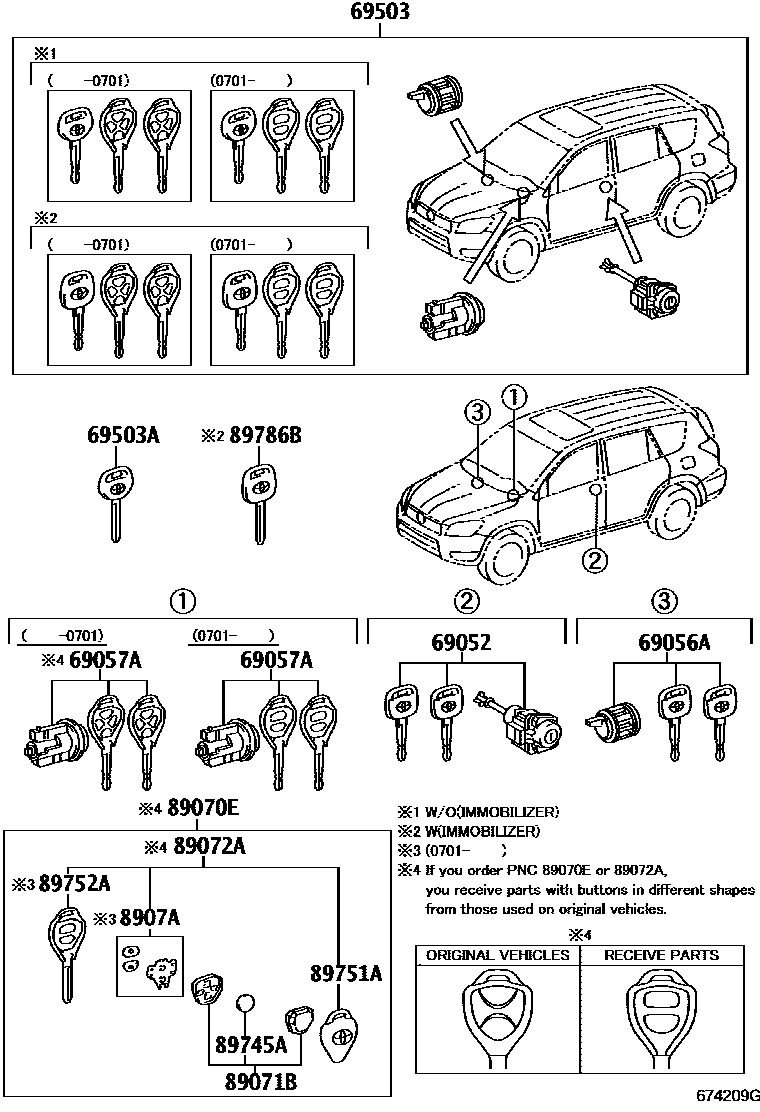

Parts diagram
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-52330i200511-201212
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-42100i200511-201212
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-12800i201002-201212
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main69057-28370i200808-201002
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main69057-28370i200702-200812
main69057-42210i200511-200701
sub69057-28370
main69057-42280i200511-200701
sub69057-48180
main69057-48180i200702-201212
sub69057-68080
69503CYLINDER SET, LOCK
main69005-42470i200511-200702
sub69005-48360
sub8907A-28010
main69005-42510i200511-200701
sub69005-42511
sub8907A-28010
main69005-42511i200701-201002
main69005-42512i201002-201212
main69005-42530i200511-200701
sub69005-48350
sub8907A-28010
main69005-48350i200702-201212
main69005-48360i200808-201001
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main69005-48360i200702-200812
main69005-48361i201001-201212
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
69503AKEY, BLANK
main90999-00200i200511-201212
SUB KEY,W(*68)
89070ETRANSMITTER ASSY, DOOR CONTROL
main89070-12740i201001-201212
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89070-12740i201001-201212
TAIWAN SPEC
main89070-12740i201001-201212
NEW ZEALAND SPEC
main89070-26221i200701-200805
sub89070-26222
main89070-26222i200806-201001
sub89072-12100
sub89071-28202
main89070-26270i201001-201212
main89070-28811i200701-200805
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)
sub89070-28812
main89070-28811i200701-200805
WITH(SMART KEY & CRUISE CONTROL)
sub89070-28812
main89070-28811i200701-200805
SINGAPORE SPEC
sub89070-28812
main89070-28812i200806-200812
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)
sub89070-12D90
main89070-28812i200806-201001
SINGAPORE SPEC
sub89070-12D90
main89070-28812i200806-200812
WITH(SMART KEY & CRUISE CONTROL)
sub89070-12D90
main89070-28812i200808-201001
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub89070-12D90
main89070-28850i200701-200808
main89070-28850i200808-201001
TAIWAN SPEC
main89070-28850i200808-201001
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89070-42530i200511-200604
WITH(SMART KEY & CRUISE CONTROL)
sub89070-42531
main89070-42530i200511-200604
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)
sub89070-42531
main89070-42531i200605-200612
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)
sub89070-28811
main89070-42531i200605-200612
WITH(SMART KEY & CRUISE CONTROL)
sub89070-28811
main89070-42590i200511-200604
sub89070-42591
main89070-42591i200605-200612
sub89070-26221
main89070-42720i201001-201004
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(*IM & TRACKING&BLOCKING SYSTEM)
sub89072-12181
sub89071-28202
main89070-42720i201001-201004
SINGAPORE SPEC
sub89072-12181
sub89071-28202
main89070-42720i201001-201004
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub89072-12181
sub89071-28202
main89070-42720i201001-201004
WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
sub89072-12181
sub89071-28202
main89070-42720i201001-201004
HONG KONG SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
sub89072-12181
sub89071-28202
main89070-42721i201005-201212
SINGAPORE SPEC
sub89070-42722
main89070-42721i201005-201212
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub89070-42722
main89070-42721i201005-201212
WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
sub89070-42722
main89070-42721i201005-201212
HONG KONG SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
sub89070-42722
main89070-42721i201005-201212
NEW ZEALAND SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
sub89070-42722
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-26040i200511-200604
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
sub89071-26041
main89071-26040i200511-200604
WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
sub89071-26041
main89071-26041i200605-200701
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
sub89071-28201
main89071-26041i200605-200701
WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
sub89071-28201
main89071-28201i200701-200806
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
sub89071-28202
main89071-28201i200701-200806
SINGAPORE SPEC
sub89071-28202
main89071-28201i200701-200806
WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
sub89071-28202
main89071-28202i200806-200812
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
main89071-28202i200806-201212
SINGAPORE SPEC
main89071-28202i200806-200812
WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
main89071-28240i200808-201212
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89071-28240i200808-201212
TAIWAN SPEC
main89071-28240i200701-200808
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
main89072-12100i200605-201001
main89072-12181i201001-201004
WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89072-12181i201001-201004
HONG KONG SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89072-12181i201001-201004
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(*IM & TRACKING&BLOCKING SYSTEM)
main89072-12181i201001-201004
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89072-12181i201001-201212
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89072-12360i201005-201212
SINGAPORE SPEC
sub89072-12361
main89072-12360i201005-201212
WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
sub89072-12361
main89072-12360i201005-201212
HONG KONG SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
sub89072-12361
main89072-12360i201005-201212
NEW ZEALAND SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
sub89072-12361
main89072-12360i201005-201212
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub89072-12361
main89072-28300i200808-201001
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89072-28300i200511-200812
WITH(SMART KEY & CRUISE CONTROL)
main89072-28300i200511-200812
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)
main89072-28300i200808-201001
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89072-28380i201001-201212
8907ASWITCH SET, TRANSMITTER
main8907A-28010i200701-201212
main8907A-28010i200701-200812
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
main8907A-28010i200701-200812
WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
89745ABATTERY, TRANSMITTER
main89745-48030i200511-200812
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
sub89745-71010
main89745-48030i200511-200812
WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
sub89745-71010
main89745-48030i200808-201212
sub89745-71010
89751ACOVER, TRANSMITTER HOUSING
main89751-12060i201005-201212
WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89751-12060i201005-201212
SINGAPORE SPEC
main89751-12060i201005-201212
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89751-12060i201005-201212
HONG KONG SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89751-12060i201005-201212
NEW ZEALAND SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89751-22050i200511-200701
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
main89751-22050i200511-200701
WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
main89751-28070i200701-200812
WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
main89751-28070i200701-200812
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
main89751-28070i200701-201001
main89751-52140i201001-201005
HONG KONG SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89751-52140i201001-201212
main89751-52140i201001-201005
WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
89752ACASE, TRANSMITTER HOUSING
main89752-12080i200701-201212
main89752-12140i201001-201212
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89752-12140i201001-201212
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89752-12140i201001-201212
WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89752-12140i201001-201212
HONG KONG SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89752-28050i200808-201001
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89752-28050i200808-201001
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89752-28050i200701-200812
HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)
main89752-28050i200701-200812
WITH(SMART KEY & CRUISE CONTROL)
89786BTRANSMITTER, TRANSPONDER KEY SUB
main89786-60170i200511-201001
BLANK KEY
main89786-60170i200511-200812
BLANK KEY,WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY
main89786-60170i200808-201001
BLANK KEY,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main89786-60220i201001-201212
BLANK KEY,WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
main89786-60220i201001-201212
BLANK KEY
main89786-60220i201001-201212
BLANK KEY,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

13 parts on this diagram · 4 diagrams in section
