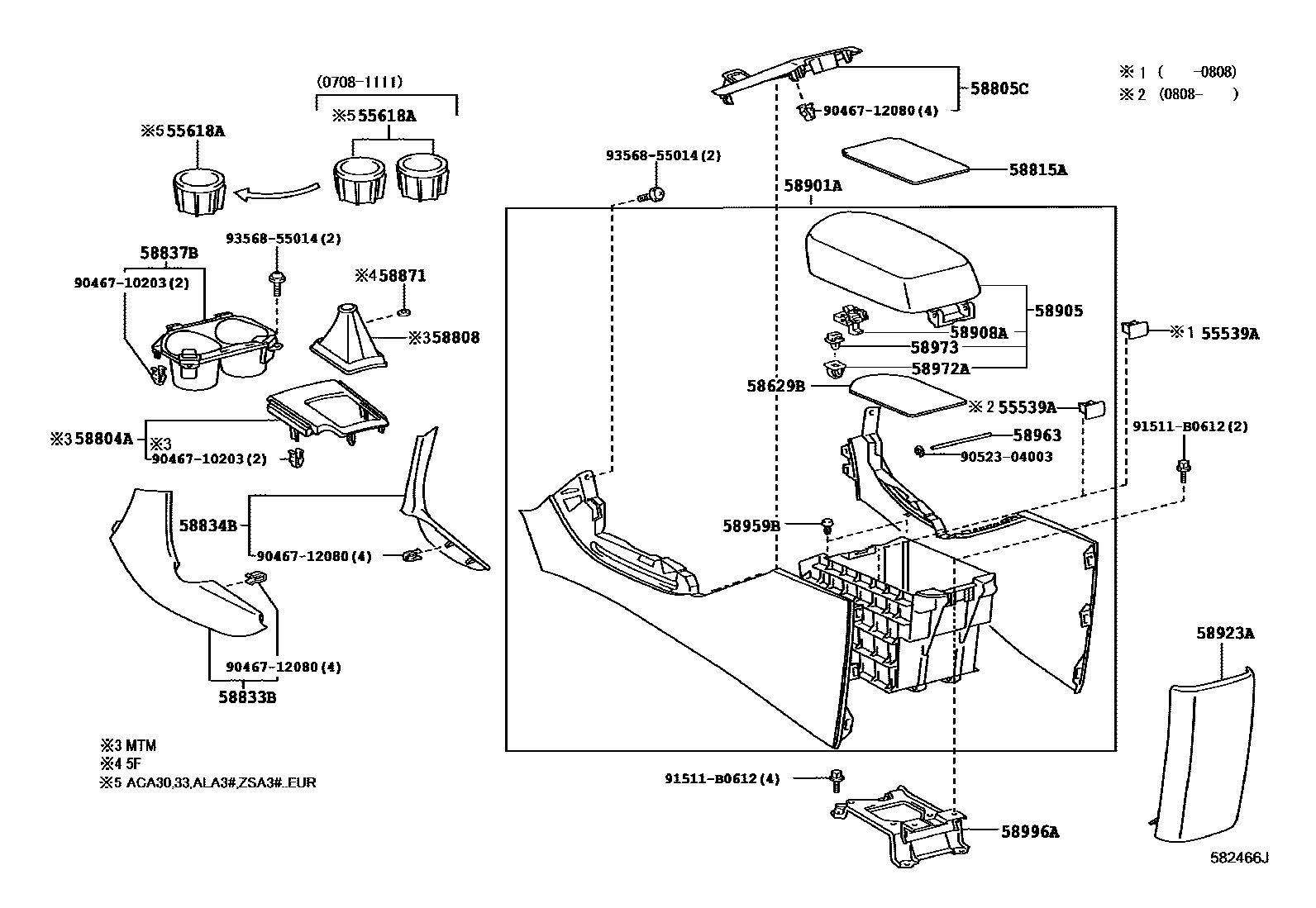

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-B0iACA33,38..GEN200808-201212

DK.GRAY,TRIM1#

sub55539-52060

main55539-52060-B0iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

DK.GRAY,TRIM13

sub55539-52060

main55539-52060-B0iACA3#,ALA30,GSA33200511-201212

DK.GRAY

sub55539-52060

main55539-52060-B1iACA33,38..GEN200808-201212

GRAY,TRIM10

sub55539-52060

main55539-52060-B1iACA33,38..GEN200808-201212

GRAY,TRIM1#

sub55539-52060

main55539-52060-E3iACA33,38..GCC,GEN200808-201212

SAND BEIGE,TRIM4#

sub55539-52060

55618AHOLDER, CONSOLE BOX CUP

main55618-42040iACA30,33,ALA3#,ZSA3#..EUR200708-201111

main55618-42041iACA30,33,ALA3#,ZSA3#..EUR201111-201212

sub55618-42040

58629BMAT, CENTER CONSOLE

main58629-42010iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-42030-B0iACA30,ALA30..LHD..MTM..X200511-201212

DK.GRAY,TRIM1#

main58804-42030-B0iACA33,38..LHD..5F;ACA30,ALA3#,ZSA3#..LHD..MTM..G200511-201212

DK.GRAY,TRIM1#,4#

main58804-42040-B0iACA30,ALA30..RHD..MTM..X200511-201212

DK.GRAY,TRIM1#,4#

main58804-42040-B0iACA33..5F..ARL200511-200808

DK.GRAY,TRIM10,13,4#

main58804-42040-B0iACA30,ALA30..RHD..MTM..X200511-201212

DK.GRAY,TRIM1#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-42010-B0iACA30,31,ALA30..LHD200511-200812

DK.GRAY,TRIM1#

sub58805-42031

sub55539-52060

main58805-42010-B1iACA33,38..LHD200511-200812

GRAY,TRIM1#

sub58805-42031

sub55539-52060

main58805-42010-E0iACA31,33,38..LHD;ACA30,ALA30..LHD..G200511-200812

FAWN,TRIM4#

sub58805-42031

sub55539-52060

main58805-42020-B0iACA30,33,ALA30,GSA33..RHD200511-200812

DK.GRAY,TRIM1#

sub58805-42041

sub55539-52060

main58805-42020-E0iACA33..ARL;ACA30,ALA30..RHD..G200511-200812

FAWN,TRIM4#

sub58805-42041

sub55539-52060

main58805-42030-B0iACA33,38..4FC..GEN200808-201108

DK.GRAY,TRIM13

sub58805-42031

main58805-42030-B0iACA30,33,ALA3#,ZSA3#..LHD..EUR200812-201108

DK.GRAY,TRIM1#

sub58805-42031

main58805-42030-B1iACA33,38..GCC;ACA33,38..5F..GEN200808-201108

GRAY,TRIM10

sub58805-42031

main58805-42030-B1iACA33,38..4FC..GEN200808-201108

GRAY,TRIM1#

sub58805-42031

main58805-42030-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..LHD..G200808-201108

SAND BEIGE,TRIM4#

sub58805-42031

main58805-42031-B0iACA30,33,ALA3#,ZSA3#..LHD..EUR201109-201212

DK.GRAY,TRIM1#

main58805-42031-B0iACA33,38..GEN201109-201212

DK.GRAY,TRIM13

main58805-42031-B1iACA33,38..GCC201109-201212

GRAY,TRIM10

main58805-42031-B1iACA33,38..GCC201109-201212

GRAY,TRIM1#

main58805-42031-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..LHD..G201109-201212

SAND BEIGE,TRIM4#

main58805-42040-B0iACA30,33,38,ALA3#,GSA33,ZSA3#..RHD200808-201108

DK.GRAY,TRIM1#

sub58805-42041

main58805-42040-E0iACA30,ALA3#,ZSA3#..RHD..G200812-201108

SAND BEIGE,TRIM4#

sub58805-42041

main58805-42041-B0iACA3#,ALA3#,GSA33,ZSA3#..RHD201109-201212

DK.GRAY,TRIM1#

main58805-42041-E0iACA30,ALA3#,ZSA3#..RHD..G201109-201212

SAND BEIGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-42030iACA30,33,38..5F200511-201212

main58808-42050iALA30200511-201212

58815ACARPET, CONSOLE BOX

main58815-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-42010iACA3#,ALA30..LHD200511-200708

main58833-42010-B0iACA30,ALA30..LHD..X200708-200812

GRAY,TRIM1#,4#

sub58833-42010

main58833-42010-B0iACA30,ALA30..LHD..X200708-200812

GRAY,TRIM1#

sub58833-42010

main58833-42010-B1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..LHD..G200808-201212

GRAY,TRIM1#,4#

sub58833-42010

main58833-42010-B1iACA30,ALA3#,ZSA3#..LHD..X200812-201212

GRAY,TRIM1#

sub58833-42010

main58833-42020iACA30,33,ALA30..RHD200511-200708

main58833-42020-B0iACA33,GSA33..ARL;ACA30,ALA30..RHD..X200708-200812

GRAY,TRIM1#,4#

sub58833-42020

main58833-42020-B0iACA33,GSA33..ARL;ACA30,ALA30..RHD..X200708-200812

GRAY,TRIM1#

sub58833-42020

main58833-42020-B1iACA33,38,GSA33..ARL;ACA30,ALA3#,ZSA3#..RHD..X200808-201212

GRAY,TRIM1#

sub58833-42020

main58833-42020-B1iACA30,ALA3#,ZSA3#..RHD..G200812-201212

GRAY,TRIM1#,4#

sub58833-42020

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-42010iACA3#,ALA30..LHD200511-200708

main58834-42010-B0iACA31,33,38..LHD;ACA30,ALA30..LHD..G200708-200812

GRAY,TRIM1#

sub58834-42010

main58834-42010-B0iACA30,ALA30..LHD..X200708-200812

GRAY,TRIM1#,4#

sub58834-42010

main58834-42010-B1iACA30,ALA3#,ZSA3#..LHD..X200812-201212

GRAY,TRIM1#

sub58834-42010

main58834-42010-B1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..LHD..G200808-201212

GRAY,TRIM1#,4#

sub58834-42010

main58834-42020iACA30,33,ALA30..RHD200511-200708

main58834-42020-B0iACA33,GSA33..ARL;ACA30,ALA30..RHD..X200708-200812

GRAY,TRIM1#,4#

sub58834-42020

main58834-42020-B0iACA33,GSA33..ARL;ACA30,ALA30..RHD..X200708-200812

GRAY,TRIM1#

sub58834-42020

main58834-42020-B1iACA30,ALA3#,ZSA3#..RHD..G200812-201212

GRAY,TRIM1#,4#

sub58834-42020

main58834-42020-B1iACA33,38,GSA33..ARL;ACA30,ALA3#,ZSA3#..RHD..X200808-201212

GRAY,TRIM1#

sub58834-42020

58837BBOX, CONSOLE CUP HOLDER

main58837-42010-B0iACA33,38;ACA30,31,ALA30..G200511-201212

DK.GRAY,TRIM1#,4#

main58837-42010-B0iACA33,38;ACA30,31,ALA30..G200511-201212

DK.GRAY,TRIM1#

58871CUSHION, CONSOLE BOX

main58871-20060iACA30..5F200511-201212

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-42050-B2iACA30,ALA30..G200511-200704

DK.GRAY,TRIM1#

sub58901-42051

main58901-42050-B2iACA30,ALA30..G200511-200704

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

sub58901-42051

main58901-42050-B3iACA33,38..LHD200511-200704

GRAY,TRIM1#

sub58901-42051

main58901-42050-E1iACA31,33,38..LHD200511-200704

FAWN,TRIM4#

sub58901-42051

main58901-42050-E1iACA31,33,38..LHD200511-200704

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

sub58901-42051

main58901-42051-B2iACA30,ALA30..G200705-200808

DK.GRAY,TRIM1#

sub58901-42070

main58901-42051-B2iACA30,ALA30..G200705-200808

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

sub58901-42070

main58901-42051-B3iACA33,38..LHD200705-200808

GRAY,TRIM1#

sub58901-42070

main58901-42051-E1iACA31,33,38..LHD200705-200808

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

sub58901-42070

main58901-42051-E1iACA31,33,38..LHD200705-200808

FAWN,TRIM4#

sub58901-42070

main58901-42060-B1iACA30,ALA30..G200511-200704

DK.GRAY,TRIM1#

sub58901-42061

main58901-42060-E1iACA30,ALA30..G..(DCR,DCRE,HTWC)200511-200704

FAWN,TRIM4#

sub58901-42061

main58901-42061-B1iACA30,ALA30..G200705-200808

DK.GRAY,TRIM1#

sub58901-42081

sub58901-42062

main58901-42061-E1iACA30,ALA30..G..(DCR,DCRE,HTWC)200705-200808

FAWN,TRIM4#

sub58901-42081

sub58901-42062

main58901-42070-B2iACA30,ALA3#,ZSA3#..X;ACA33,38,GSA33..ARL,EUR200808-201212

DK.GRAY,TRIM13

sub58901-42070

sub58901-42051

sub55539-52060

main58901-42070-B2iACA31;ACA30,ALA30..X200808-201212

DK.GRAY,TRIM1#

sub58901-42070

sub58901-42051

sub55539-52060

main58901-42070-B2iACA31;ACA30,ALA30..X200808-200812

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

sub58901-42070

sub58901-42051

sub55539-52060

main58901-42070-B3iACA33,38..GEN200808-201212

GRAY,TRIM10

sub58901-42070

sub58901-42051

sub55539-52060

main58901-42070-B3iACA33..G..GCC200808-201212

GRAY,TRIM1#

sub58901-42070

sub58901-42051

sub55539-52060

main58901-42070-E0iACA31,33..G..(EUR,GCC)200808-200812

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

sub58901-42070

sub58901-42051

sub55539-52060

main58901-42070-E0iACA30,ALA30..G200808-200812

FAWN,TRIM4#

sub58901-42070

sub58901-42051

sub55539-52060

main58901-42070-E1iACA33,38..LHD200808-201212

SAND BEIGE,TRIM4#

sub58901-42070

sub58901-42051

sub55539-52060

main58901-42080-B0iACA30,ALA3#,ZSA3#..G200808-201001

DK.GRAY,TRIM1#

sub58901-42081

sub58901-42082

main58901-42080-E0iACA30,ALA30..G..(DCR,DCRE,HTWC)200808-200812

FAWN,TRIM4#

sub58901-42081

sub58901-42082

main58901-42080-E2iACA30,ALA3#,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM)200812-201001

SAND BEIGE,TRIM4#

sub58901-42081

sub58901-42082

main58901-42081-B3iACA30,ALA3#,ZSA3#..G201002-201212

DK.GRAY,TRIM1#

main58901-42081-B3iACA30,ALA3#,ZSA3#..G201002-201212

SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#

main58901-42081-E4iACA30,ALA3#,ZSA3#..G201002-201212

SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#

main58901-42081-E4iACA30,ALA3#,ZSA3#..G201002-201212

SAND BEIGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-42020-B0iACA31;ACA30,ALA30..X200808-200812

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

sub58905-42020

main58905-42020-B0iACA30,ALA3#,ZSA3#..X;ACA33,38,GSA33..ARL,EUR200808-201212

DK.GRAY,TRIM1#

sub58905-42020

main58905-42020-B0iACA30,ALA3#,ZSA3#..X;ACA33,38,GSA33..ARL,EUR200808-201212

DK.GRAY,TRIM13

sub58905-42020

main58905-42020-B1iACA33,38..GCC200808-201212

GRAY,TRIM10

sub58905-42020

main58905-42020-B1iACA33..G..GCC200808-201212

GRAY,TRIM1#

sub58905-42020

main58905-42020-B3iACA30,ALA30..G200511-200808

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

sub58905-42020

main58905-42020-B3iACA30,ALA30..X;ACA31,33,GSA33..ARL,EUR200511-200808

DK.GRAY,TRIM1#

sub58905-42020

main58905-42020-B4iACA33,38..LHD200511-200808

GRAY,TRIM1#

sub58905-42020

main58905-42020-E2iACA31,33,38..LHD200511-200812

FAWN,TRIM4#

sub58905-42020

main58905-42020-E2iACA31,33,38..LHD200511-200812

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

sub58905-42020

main58905-42020-E3iACA33,38..LHD200808-201212

SAND BEIGE,TRIM4#

sub58905-42020

main58905-42030-B1iACA30,ALA3#,ZSA3#..G200511-201001

DK.GRAY,TRIM1#

sub58905-42031

sub58905-42032

main58905-42030-E1iACA30,ALA30..G..(DCR,DCRE,HTWC)200511-200812

FAWN,TRIM4#

sub58905-42031

sub58905-42032

main58905-42030-E3iACA30,ALA3#,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM)200812-201001

SAND BEIGE,TRIM4#

sub58905-42031

sub58905-42032

main58905-42031-B3iACA30,ALA3#,ZSA3#..G201002-201212

DK.GRAY,TRIM1#

main58905-42031-B3iACA30,ALA3#,ZSA3#..G201002-201212

SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#

main58905-42031-E5iACA30,ALA3#,ZSA3#..G201002-201212

SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#

main58905-42031-E5iACA30,ALA3#,ZSA3#..G201002-201212

SAND BEIGE,TRIM4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iACA3#,ALA3#,GSA33,ZSA3#201104-201212

main58908-32020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201104

sub58908-12080

58923APANEL, CONSOLE REAR END

main58923-42010-B0iACA33,38..GEN200511-201212

DK.GRAY,TRIM13

sub58923-42010

main58923-42010-B0iACA30,31,ALA30,GSA33200511-201212

DK.GRAY,TRIM1#

sub58923-42010

main58923-42010-B1iACA33..ARL200511-201212

GRAY,TRIM10

sub58923-42010

main58923-42010-B1iACA33,38..LHD200511-201212

GRAY,TRIM1#

sub58923-42010

main58923-42010-E0iACA33,38;ACA30,31,ALA30..G200511-200812

FAWN,TRIM4#

sub58923-42010

main58923-42010-E1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

sub58923-42010

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iACA33..G..GCC;ACA30,31,ALA30200511-201212

58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE

main58963-47010iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-12010iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-42030iACA33..G..GCC;ACA30,31,ALA30200511-201212

9046710203

main90467-10203

9046712080

main90467-12080

9052304003

main90523-04003

91511B0612

main91511-B0612

9356855014

main93568-55014

25 parts on this diagram · 2 diagrams in section
