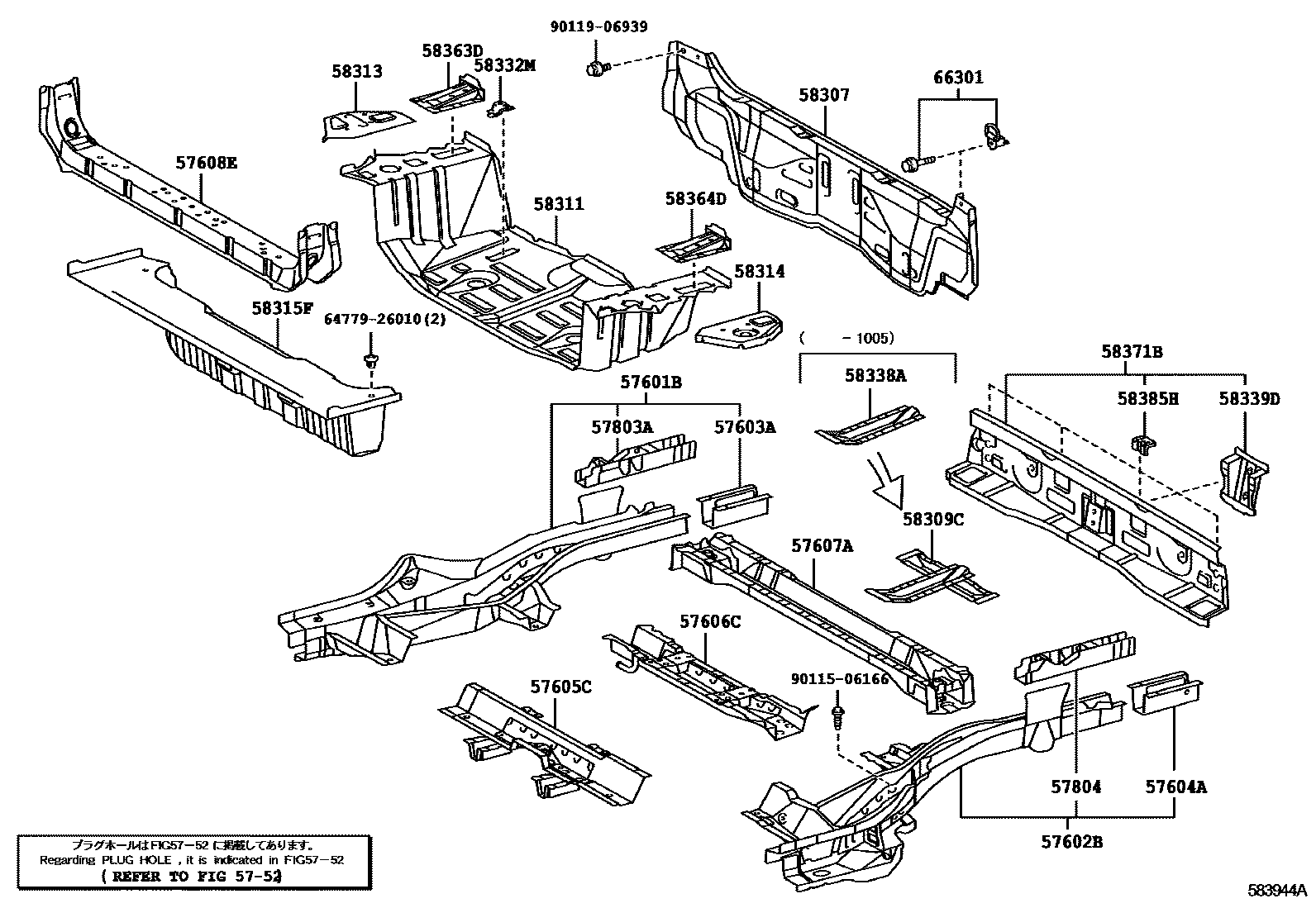

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-42901iACA33,38,GSA33200511-200912

sub57601-42903

main57601-42902iACA30,ALA3#,ZSA3#200511-200912

sub57601-42904

main57601-42903iACA33,38,GSA33200912-201106

sub57601-42905

main57601-42904iACA30,ALA3#,ZSA3#200912-201106

sub57601-42906

main57601-42905iACA33,38,GSA33201106-201212

sub57601-42909

main57601-42906iACA30,ALA3#,ZSA3#201106-201212

sub57601-42908

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-42901iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201106

sub57602-42903

main57602-42902iACA30,31,ALA30200511-201106

sub57602-42904

main57602-42903iACA33,38,GSA33201106-201212

sub57602-42907

main57602-42904iACA30,ALA3#,ZSA3#201106-201212

sub57602-42906

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200911

sub57603-42021

main57603-42021iACA33,38,GSA33200912-201212

main57603-42030iACA30,31,ALA30200511-200911

sub57603-42031

main57603-42031iACA30,ALA3#,ZSA3#200912-201212

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-42020iACA33,38,GSA33200511-201212

main57604-42030iACA30,31,ALA30200511-201212

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-42090iACA3#,ALA30200511-200611

sub57606-42091

main57606-42091iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200612-201212

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-42060iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-42030iACA3#,ALA30,GSA33200511-201212

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-42010iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201202

sub58307-42011

main58307-42011iACA3#,ALA3#,GSA33,ZSA3#201203-201212

58309CGUARD SUB-ASSY, REAR VALANCE PANEL

main58309-42020iACA33,38,GSA33201005-201212

main58309-42030iACA30,ALA3#,ZSA3#201005-201212

58311PAN, REAR FLOOR

main58311-42110iACA33,38,GSA33200511-201212

main58311-42120iACA30,31,ALA30200511-201212

58313PANEL, REAR FLOOR SIDE, RH

main58313-42040iACA33,38,GSA33200511-201212

main58313-42050iACA30,ALA3#,ZSA3#200511-201212

58314PANEL, REAR FLOOR SIDE, LH

main58314-42040iACA33,38,GSA33200511-201212

main58314-42050iACA30,ALA3#,ZSA3#200511-201212

58315FEXTENSION, REAR FLOOR SIDE PANEL, FRONT

main58315-42060iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

58332MBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2

main58332-42010iACA30,ALA3#,ZSA3#200511-201212

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58338-42030iACA33,38,GSA33200511-201005

main58338-42040iACA30,31,ALA30200511-201005

58339DBRACKET, JACK UP

main58339-42030iACA3#,ALA30,GSA33200511-201005

main58339-42031iACA3#,ALA3#,GSA33,ZSA3#201005-201212

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-42010iACA3#,ALA30,GSA33200511-201212

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58364-42030iACA3#,ALA30,GSA33200511-201212

58371BPANEL, BODY LOWER BACK, OUTER

main58302-42010iACA3#,ALA30,GSA33200511-201005

main58302-42011iACA3#,ALA3#,GSA33,ZSA3#201005-201212

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-42010iACA3#,ALA30,GSA33200511-201212

66301HOOK SUB-ASSY, ROPE

main66301-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

6477926010TRAY, SPARE WHEEL COVER

main64779-26010

9011506166

main90115-06166

9011906939

main90119-06939

28 parts on this diagram · 2 diagrams in section
