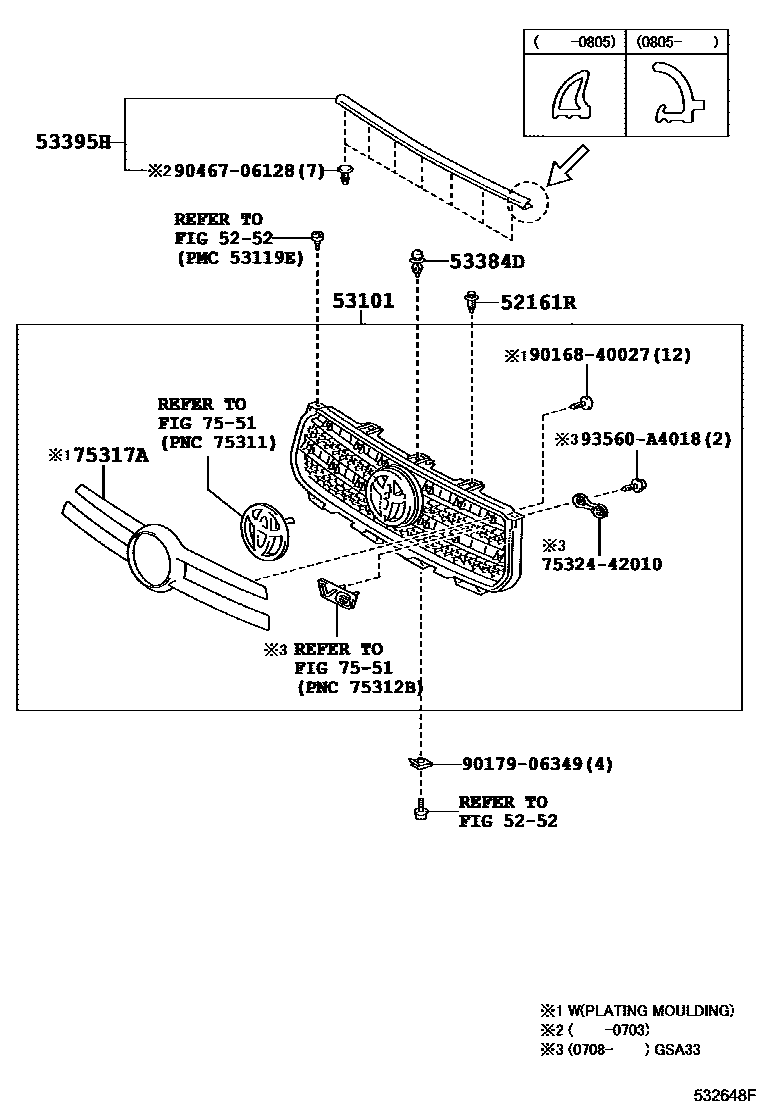

RADIATOR GRILLE

0001 1 0003 1CHINA SPEC 0004 1 0006 1 0007 1X-SPORT PACKAGE OR SPECIAL ED0009 1

52161RPIECE, FRONT BUMPER

main52161-16010×2iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53101GRILLE SUB-ASSY, RADIATOR

main53101-42150iACA30,33,38,ALA30..DCR,DCRE,HTWC200511-200812

NO PAINT REQ.

main53101-42180iACA31200511-200804

NO PAINT REQ.

main53101-42190iGSA33200708-200808

NO PAINT REQ.

main53101-42220iACA33,38..ARL,GCC,GEN200808-201212

NO PAINT REQ.

main53101-42250iACA30,ALA3#,ZSA3#..ATYPE200812-201212

PLATED

main53101-42260iGSA33200808-201212

PLATED

main53101-42310iACA31200804-200812

NO PAINT REQ.

main53101-42330iACA33..EUR200812-201212

PLATED

main53101-42360iALA3#,ZSA3#..BTYPE201002-201112

NO PAINT REQ.

main53101-42361iALA3#,ZSA3#..BTYPE201201-201212

NO PAINT REQ.

main53101-42270iALA30..DCRL200812-201002

PLATED,X-SPORT PACKAGE

main53101-42320iACA30..LHD200812-201003

PLATED,RUSSIA SPEC

main53101-42340iACA30..LHD200804-200812

NO PAINT REQ.,RUSSIA SPEC

main53101-42370iZSA3#..LHD..BTYPE201003-201112

NO PAINT REQ.,RUSSIA SPEC

main53101-42371iZSA3#..LHD201201-201212

NO PAINT REQ.,RUSSIA SPEC

53384DCUSHION, HOOD, CENTER

main53384-68010iACA30,33,38,ALA3#,GSA33,ZSA3#..ATYPE200808-201212

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-42030iACA3#,ALA30200511-200702

main53395-42031iACA3#,ALA30,GSA33200703-200804

main53395-42032iACA3#,ALA30,GSA33200805-200812

main53395-42050iACA33,38,GSA33200808-200812

main53395-42051iACA3#,ALA3#,GSA33,ZSA3#..ATYPE200901-201212

75317APLATE, RADIATOR GRILLE ORNAMENT

main75317-42010iACA31200511-200804

main75317-42020iACA31200804-200812

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

7532442010RETAINER, FRONT BUMPER EMBLEM

main75324-42010

9016840027

main90168-40027

9017906349

main90179-06349

9046706128

main90467-06128

93560A4018

main93560-A4018

12 parts on this diagram · 6 diagrams in section
