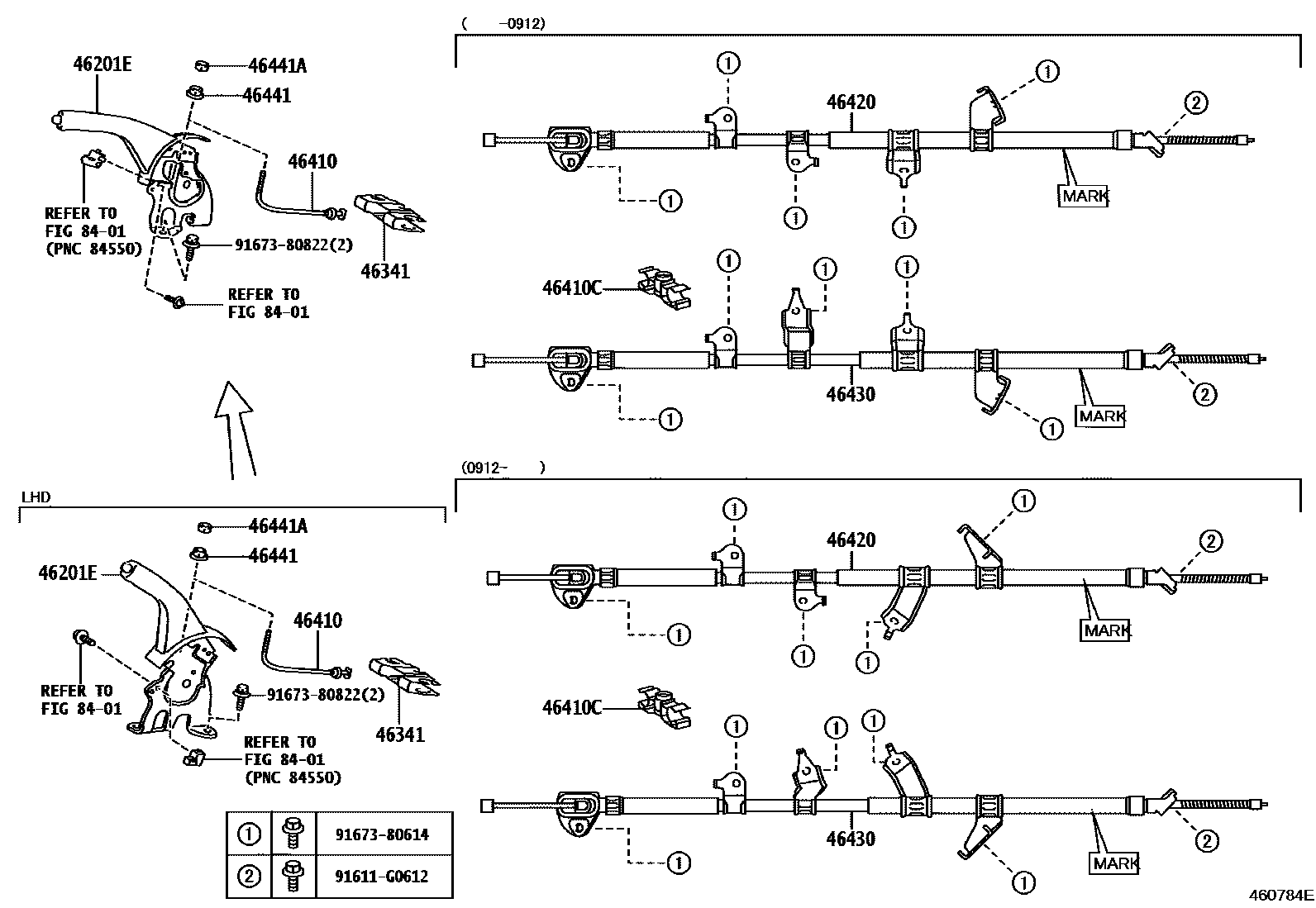

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-42090-B0iACA30,31,33,ALA30..LHD..G..(EUR,GCC)200511-201101

DK.GRAY,TRIM1#

sub46201-42091

main46201-42090-B0iACA30,31,33,ALA30..LHD..G..(EUR,GCC)200511-201101

DK.GRAY,TRIM1#,4#

sub46201-42091

main46201-42091iACA3#,ALA3#,ZSA3#..LHD201211-201212

main46201-42091-B0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..LHD..G201102-201211

DK.GRAY,TRIM1#,4#

main46201-42091-B0iACA30,ALA3#,ZSA3#..LHD..X201102-201211

DK.GRAY,TRIM1#

main46201-42100-B0iACA30,ALA30..RHD..X200511-201102

DK.GRAY,TRIM1#,4#

sub46201-42101

main46201-42100-B0iACA33..ARL200511-201102

DK.GRAY,TRIM1#

sub46201-42101

main46201-42100-B0iGSA33200511-200808

DK.GRAY,TRIM10,13,4#

sub46201-42101

main46201-42101iACA3#,ALA3#,GSA33,ZSA3#..RHD201211-201212

main46201-42101-B0iACA33,38,GSA33..ARL;ACA30,ALA3#,ZSA3#..RHD..X201103-201211

DK.GRAY,TRIM1#,4#

main46201-42101-B0iACA33,38,GSA33..ARL;ACA30,ALA3#,ZSA3#..RHD..X201103-201211

DK.GRAY,TRIM1#

46341EQUALIZER, PARKING BRAKE

main46341-20070iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200811

main46341-42020iACA3#,ALA3#,GSA33,ZSA3#200812-201212

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201103

main46410-42051iACA3#,ALA3#,ZSA3#..LHD201102-201212

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-42010iACA33..G..GCC;ACA30,31,ALA30200511-201212

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-42110iACA33,38,GSA33200511-200709

sub46420-42130

main46420-42120iACA30,31,ALA30200511-200709

sub46420-42140

main46420-42130iACA33,38,GSA33200808-200912

MARK:TAPE=WHITE

main46420-42130iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200710-200812

main46420-42131iACA33,38,GSA33200912-201205

MARK:TAPE=BROWN&BLUE

sub46420-42132

main46420-42132iACA33,38,GSA33201206-201212

main46420-42140iACA30,31,ALA30200710-200812

main46420-42140iACA30,ALA3#,ZSA3#200812-200912

MARK:TAPE=RED&YELLOW

main46420-42141iACA30,ALA3#,ZSA3#200912-201205

MARK:TAPE=RED

sub46420-42142

main46420-42142iACA30,ALA3#,ZSA3#201206-201212

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-42110iACA33,38,GSA33200511-200709

sub46430-42130

main46430-42120iACA30,31,ALA30200511-200709

sub46430-42140

main46430-42130iACA33,38,GSA33200808-200912

MARK:TAPE=BROWN

main46430-42130iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200710-200812

main46430-42131iACA33,38,GSA33200912-201205

MARK:TAPE=BLUE&GLAY

sub46430-42132

main46430-42132iACA33,38,GSA33201206-201212

main46430-42140iACA30,31,ALA30200710-200812

main46430-42140iACA30,ALA3#,ZSA3#200812-200912

MARK:TAPE=BLUE&WHITE

main46430-42141iACA30,ALA3#,ZSA3#200912-201205

MARK:TAPE=GREEN

sub46430-42142

main46430-42142iACA30,ALA3#,ZSA3#201206-201212

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

8401

91611G0612

main91611-G0612

9167380614

main91673-80614

9167380822

main91673-80822

12 parts on this diagram · 2 diagrams in section
