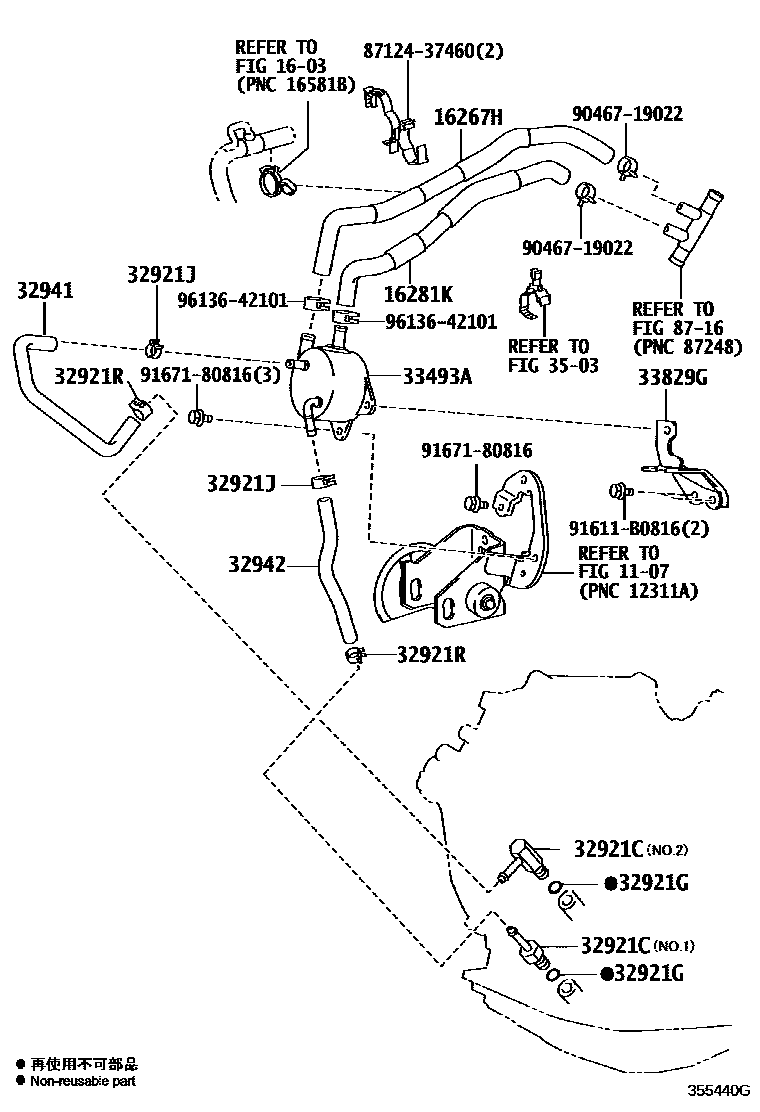

OIL COOLER & TUBE (ATM)

0001 1U140F 0002 1U140F,U241E 0003 1U151F 0004 1U660F

1107MOUNTING

→ Go to FIG 11-07

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16267HHOSE, WATER BY-PASS, NO.3

main16267-28050i1AZFE..ACA30..4FC200511-200812

16281KHOSE, WATER BY-PASS, NO.4

main16281-28030i1AZFE..ACA30..4FC200511-200812

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-200808

NO.1

main90407-13009×2iACA30,33,38..4FC; GSA33200808-201212

NO.2

main90407-14032×2iALA30..6FC200903-201212

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

main90301-11006×2iALA30..6FC200903-201212

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iACA30..4FC200709-200812

main90467-16022iACA33,38,GSA33..ATM200808-200901

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90467-16022×7iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

32941HOSE, OIL COOLER INLET, NO.1

main32941-42020iACA33,38..4FC200808-201212

main32941-42040iACA30..4FC200812-201212

main32941-42060iALA30..6FC200903-201212

main32942-42020iGSA33200808-201212

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-42030iGSA33200808-201212

main32942-42010iACA31,33..G..(EUR,GCC)200511-200812

main32942-42030iACA30..4FC200511-200812

main32942-42050iALA30..6FC200903-201212

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-42050iACA30..4FC200511-200812

33829GSUPPORT, TRANSMISSION CONTROL CABLE

main33829-42060iACA30..4FC200511-200812

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

8712437460CLAMP, HEATER

main87124-37460

9046719022

main90467-19022

91611B0816

main91611-B0816

9167180816

main91671-80816

9613642101

main96136-42101

19 parts on this diagram · 4 diagrams in section
